Industrial Synchronous Belt

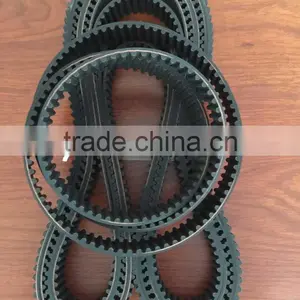

Industrial Synchronous Belt thumbnail-1
Industrial Synchronous Belt thumbnail-2
Industrial Synchronous Belt thumbnail-3
Industrial Synchronous Belt thumbnail-4

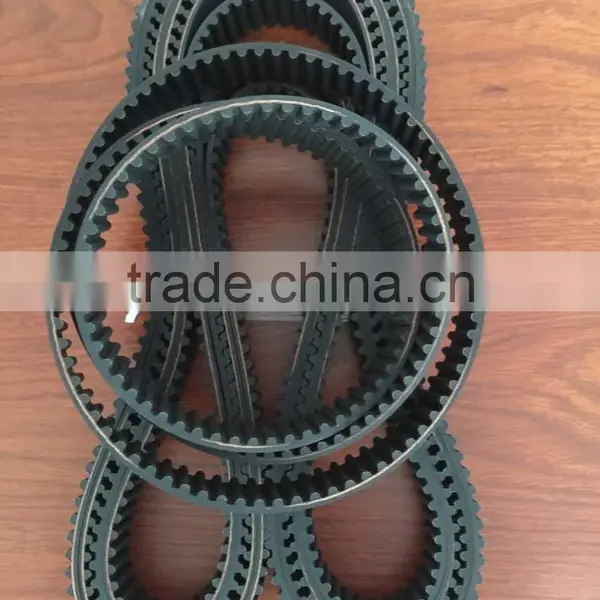

Industrial Synchronous Belt photo-1
Industrial Synchronous Belt photo-2
Industrial Synchronous Belt photo-3
Industrial Synchronous Belt photo-4
US$ 1 - 30 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Timing Belt
Material:
Rubber
Contact Supplier Request Quote Chat Now
Taizhou Feilizhou Rubber-Belt Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI/HANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Type Timing Belt
Material Rubber
Place of Origin Zhejiang, China
Brand Name FEILIZHOU
Model Number 10M1760/14M1778
Industrial Synchronous Belt
 Details:

The transmission of synchronous beit is a new transmission mode and transmits the dynamic torce by the meshing of the belt teeth and pulley,lt combines respective advantages of gear transmission,chain tramission and transmission.



Structure
No.
Name
Function
Material
1
 Top Rubber
Protect the linling tensile member
CR HNBR
2
 Tensile Member
Core material to pass the dynamic force
Glass Filber
3
 Teeth Rubber
Protect the tensile member and maintain the shape of the rubber
CR HNBR
4
 Teeth Fabric
Maintain the shape of the adhesive
Elastic Fabric

Feature
lt may solve the problems such as low transmission efficiency and lubrication oil required under the status of high speed when suing the chain,distance limit between the drive part and the slave drive part when using the gear.
Glass fiber as tensile member.no elongation of rubber belt.
Excellent heat-resistance,oil-proof,and wearing resistance
Higher transmission efficiency can be guaranteed under the condittion of large change of peration speed and temperature.
lts performance can be exerted stably and safely during the process of high-speed rotation.
T Type lndustrial Synchronous Belt
Type
Pith(mm)
Tooth height(mm)
Belt thickess(mm)
Angle()
MXL
2.032
0.51
1.14
40
XXL
3.175
0.76
1.52
50
XL
5.08
1.27
2.30
50
L
9.525
1.91
3.60
40
H
12.70
2.29
4.30
40
XH
22.225
6.35
11.20
40
XXH
31.75
9.35
15.70
40
T2.5
2.5
0.70
1.30
40
T5
5
1.20
2.20
40
T10
10
2.50
4.50
40
T20
20
5.00
8.00
40
AT5
5
1.20
2.70
50
AT10
10
2.50
5.00
50
AT20
20
5.00
8.00
50

Arc tooth lndustrial Synchronous Belt
Type
Pith(mm)
Tooth height(mm)
Belt thickess(mm)
Angle()
THD
3M
3
1.17
2.4
5M
5
2.06
3.8
8M
8
3.36
6
14M
14
6.02
10
20M
20
8.4
13.2
STPD/STS
S2M
2
0.76
1.36
S3M
3
1.14
1.9
S4.5M
4.5
1.71
2.81
S5M
5
1.91
3.4
S8M
8
3.05
5.3
S14M
14
5.3
10.2
RPP/HPPD
RPP2M
2
0.76
1.36
RPP3M
3
1.15
1.9
RPP5M
5
1.95
3.5
RPP8M
8
3.2
5.5
RPP14M
14
6.00
10
