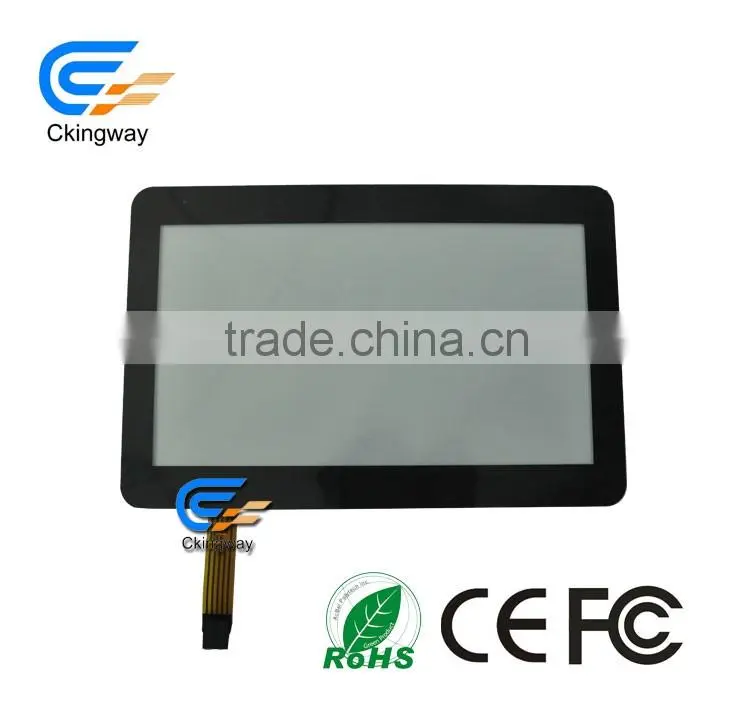

Help Center7 Inch Resistive Touch Panel for Retail POS Kits With USB Controller
Related Products
-
7 Inch Resistive Touch Panel for Retail POS Kits for 5 Resisitve Cash Machine USB InterfaceUS$ 6.80 - 10.00MOQ: 1 Piece -
8.4 Inch LCD Touch Panel for PC Car DVD POSUS$ 6.50 - 6.50MOQ: 1000 Pieces
-
Custom-made 3.5 Inch Resisitive Diaplay Screen Monitor for POS,Home AutomationUS$ 5.40 - 5.40MOQ: 1000 Pieces
-
CKINGWAY 3.5 Inch 4 Wire Resistive Touch Diaplay Screen Monitor for POSUS$ 5.40 - 5.40MOQ: 1000 Pieces
-
F/G 8.4 Inch AR-coating LCD Touch Screen For PC/POS/ATM Small Size Multi Touch PanelUS$ 6.50 - 6.50MOQ: 1000 Pieces
The Feathers of 7 Inch Resistive Touch Panel for Retail POS Kits with USB Controller as below:
1.Low cost solution, Low power consumption
2. Consistently accurate, fast touch response
3. Pressure sensitive, works with any stylus, Finger, gloved hand and stylus activation
4. Not affected by dirt, dust, water, or light
5. Affordable touch screen technology
6. Antiglare surface treatment
7. Available in 1.8"- 21" models (Customer size welcome)
5 Wire Restistive Touch screen technology
5 wrie resistive touch screen is a two-layer structure, two materials (film or glass) with ITO are attached with a gap between them so that the ITO layers are facing each other. Touch input will be made as the top layer is pressed down and the two ITO layers contact. There are insulators called spacing dots between the top and bottom ITO layers. These spacing dots prevent unintended contacts (inputs) of the ITO layers when not pressed.
Developed 5-Wire technology with the harshest environments in mind, so it's no wonder that it excels in reliability, durability, and expected product life. Impervious to environmental conditions such as liquid spills and splashes, humidity, and wash down, these screens are the most contamination-resistant available. They deliver drift-free operation for a lifetime of 35 million finger touches.

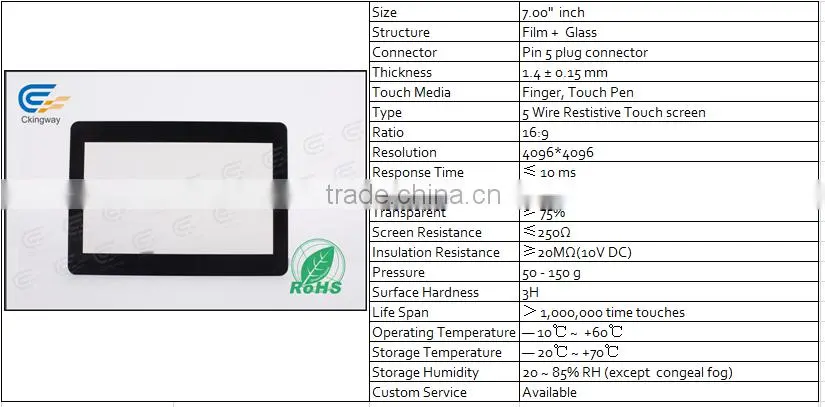

| Size | 7.00" inch |
| Structure | Film + Glass |
| Connector | Pin 5 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen |
| Type | 5 Wire Restistive Touch screen |
| Ratio | 16:9 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC , 35 mA |
| Transparent | ≥ 75% |
| Screen Resistance | ≤250Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 50 - 150 g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time touches |
| Operating Temperature | — 10℃ ~ +60℃ |
| Storage Temperature | — 20℃ ~ +70℃ |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
7 Inch Resistive Touch Panel for Retail POS Kits with USB Controller for Packing:
Anti-Static Foam+Paper Card+Ragged Bag+Carton
7 Inch Resistive Touch Panel for Retail POS Kits with USB Controller for Term of payment:
1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T 50% the balance before delivery
4.Payment method can be nogotiated
Ckingway Technology Co.,Ltd. Established in 2009, We focus Researching & Developing, Design, Manufacture and sales integrated into one target on Resistive Touch panel, Capacitive Touch Panel and LCD/LCM (Liquid Crystal Display Module). Coming along with Electronics consumer products increasing rapidly recently, Our product has been holding steady marketing share in Touch display field under our teamwork strongly, while industry chain getting more ruggedized , professionalized.
Ckingway’s Product range of application widely, is applied to Automobile electronic, Medical Equipment, Industrial Control, Security monitor and Digital products etc. It was approved ISO9001 quality manager get into inside operation by third party certification “SGS” organization, All products met RoHS testing request completely and have RoHS certification.
Ckingway holds Business ideology report that: Quality and service will not stopping to develop to be excellent., Creat value for customers. We implement management policy with institutional and hommization combination, For” Connecting People, as career into integrity, Profits shared each other, Progressing by together” talent development strategy. R&D team with Efficient and unite we had, can be make a response to market rapidly
