Metallized Ceramic Tubes (Ceramic Insulator) With MoMn Processing And Plating Ni,Ag,Au

Metallized Ceramic Tubes (Ceramic Insulator) With MoMn Processing And Plating Ni,Ag,Au thumbnail-1
Metallized Ceramic Tubes (Ceramic Insulator) With MoMn Processing And Plating Ni,Ag,Au photo-1
US$ 10 - 100 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Type:
Ceramic Tubes
Application:
Industrial Ceramic, Industrial Ceramic
Contact Supplier Request Quote Chat Now
Hunan Fu Qiang Special Ceramic Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Type Ceramic Tubes
Model Number C-283
Brand Name Fuqiang

Specifications

Ceramic + Mo/Mn Metallized + plating Ni
Ceramic + Mo/Mn Metallized + plating Ag
Ceramic + Mo/Mn Metallized + plating Au

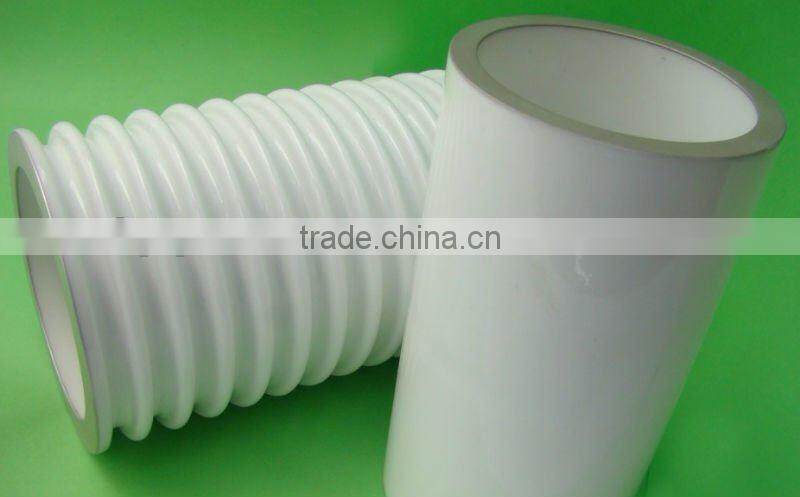

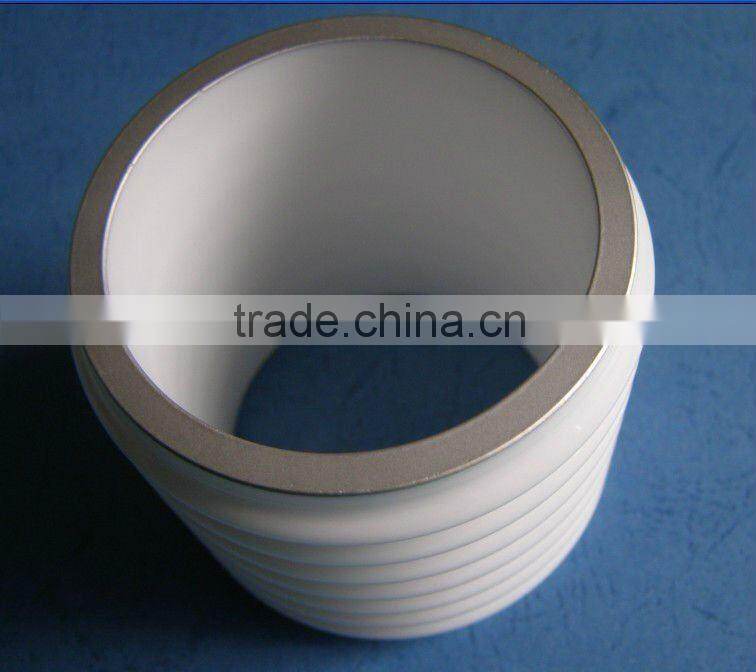

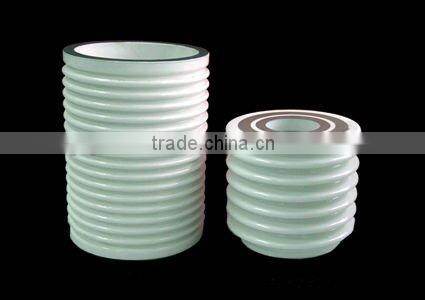

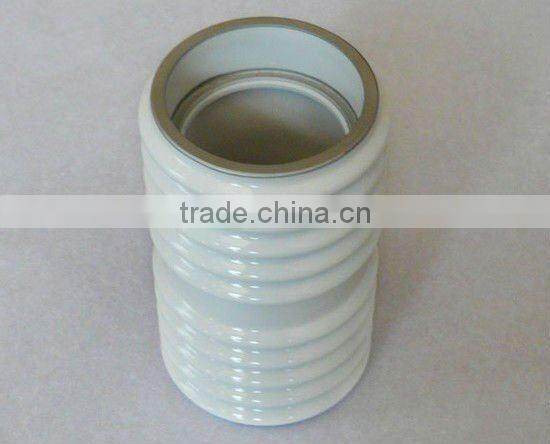

Electric Vacuum Ceramic Tube with Metallization



 Electric vacuum ceramic is the mainly components of high-voltage electric vacuum ceramic tube,high-power silicon controlled rectifier, electric vacuum relay, electric vacuum transmitting tube, High-frequency high power electric tube. We use the best 95% alumina with superfine powder technology and isostatic pressing : Steady performance, Good insulating.The sizes can be made strictly according to the customers' requirements , with Metallization and glazing on the surface.



 Features:



1.Good density ,low dielectric loss and Dielectric Constant with small crystal size (Average diameter 8~10μm ). The structure density is far exceeded than the traditional forming technology through hundreds Mpa pressure



2. No air holes. There is no air holes in the ceramic parts through isostatic pressing technology. The inside structure and tensile strength reach the best condition



3. High mechanical strength, High sealing strength, Good air tightness, which highly improves the tightness of the electric vacuum ceramic tube



4. Good consistency, The mainly technical indexes of the electric vacuum ceramic have reached the advanced level of same sort products at home and abroad



No.

D1 mm

D2 mm

D3 mm

Height mm

1

42(+/-1,0)

50(+/-0,6)

Smoot

60(-0,74)

2

60 (+0,4/-0,2)

72(-2)

Smooth

95(-1,4)

3

130 (+1,2)

143(+/-1,7)

Smooth

70(-1,0)

4

160(+1,5)

180(+/-2)

Smooth

200(-0,9)

5

200(+1,5)

216(+/-2,7)

Smooth

100(-0,9)

6

200(+1,5)

216(+/-2,7)

Smooth

200(-0,9)

7

200(+1,5)

220(+/-2,7)

Smooth

350(-0,9)

8

60(+0,6)

70(+/-1,1)

76(+/-1,5)

70(-0,9)

9

86 (+0,6)

97(+/-1,5)

102 (+/-1,7)

70 (-0,9)

10

110 (+1,0)

122(+3,3/-2,3)

125 (+3,3/-2,3)

70 (-0,9)

Metallized Ceramic Tubes (Ceramic Insulator) With MoMn Processing And Plating Ni,Ag,AuMetallized Ceramic Tubes (Ceramic Insulator) With MoMn Processing And Plating Ni,Ag,AuMetallized Ceramic Tubes (Ceramic Insulator) With MoMn Processing And Plating Ni,Ag,AuMetallized Ceramic Tubes (Ceramic Insulator) With MoMn Processing And Plating Ni,Ag,AuMetallized Ceramic Tubes (Ceramic Insulator) With MoMn Processing And Plating Ni,Ag,Au



(Excellent Quality, ISO9001 Maker!!!)Metallized Ceramic Tubes (Ceramic Insulator) With MoMn Processing And Plating Ni,Ag,Au)
