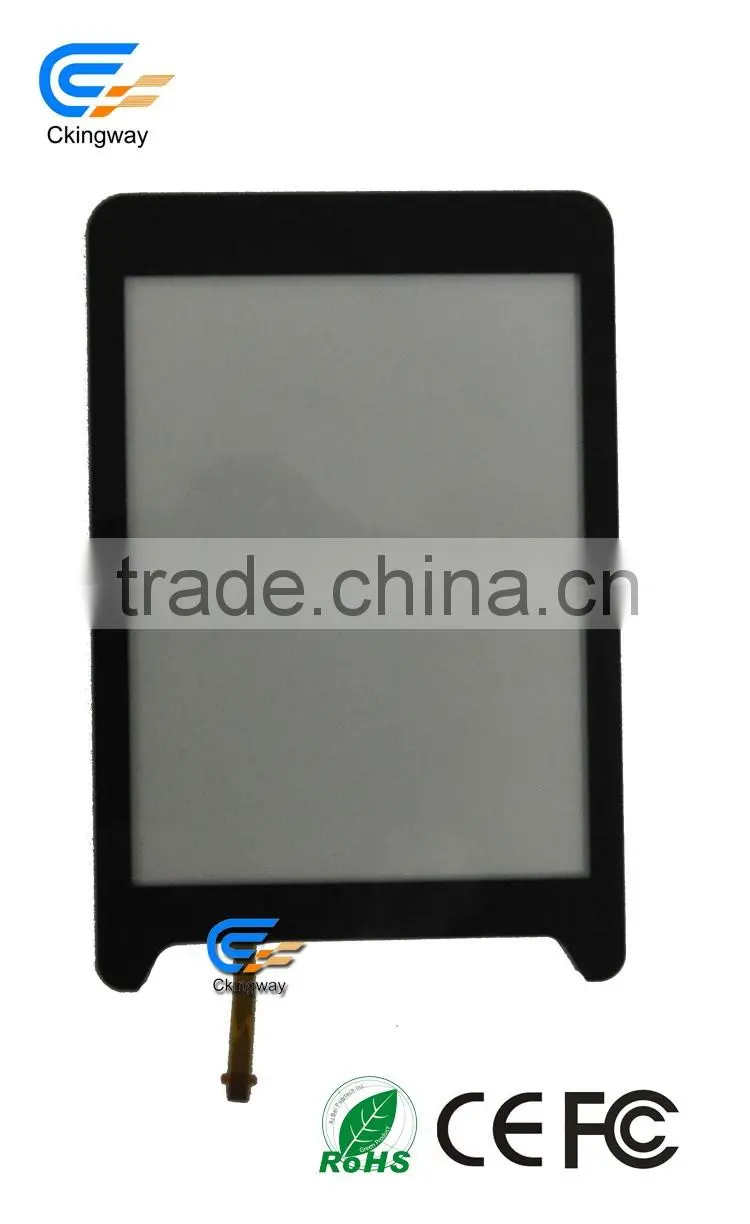

OEM/ODM 3.5 Inch Resisitive Touch Panle Screen for Security Monitoring
- 500000 Piece / Pieces per Month
- SHENZHEN/HONGKONG
- Credit Card
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Ckingway | Model Number: | SZTP1208-3.5 |
Type: | Other, Other, 4 Wire Restistive Touch screen |
Product Description
Product Description
The Feature of OEM/ODM 3.5 Inch Resisitive Touch Panle Screen for Security Monitoring as below:
1.Low cost solution, Low power consumption
2. Consistently accurate, fast touch response
3. Pressure sensitive, works with any stylus, Finger, gloved hand and stylus activation
4. Not affected by dirt, dust, water, or light
5. Affordable touch screen technology
6. Antiglare surface treatment
4 wire restistive touch screen technology:
Ckingway 4-Wire Resistive products are perfect for industry machine GPS System or portable products where compact size and low power draw is a priority – such as PDAs, GPSs, smart phones and other hand-held applications. Our pressure sensing 4-wire resistive touch screens are cost effective and allow for input versatility with bare or gloved fingers and any pointing device.
Backed by a one-year warranty and 5 million touches in a single location, Touch International’s 4-Wire resistive touch screens allow for ease of integration and use.
Size | 3.5" inch |
Structure | PET + Film + Film + Glass |
Connector | Pin 4 plug connector |
Thickness | 1.4 ± 0.15 mm |
Touch Media | Finger, Touch Pen |
Type | 4 Wire Restistive Touch screen |
Ratio | 16:9 |
Resolution | 4096*4096 |
Response Time | ≤ 10 ms |
Supply Voltage | 5V DC , 35 mA |
Transparent | ≥ 78% |
Screen Resistance | X:100-500Ω Y:200-1000Ω |
Insulation Resistance | ≥20MΩ(10V DC) |
Pressure | 50 - 150 g |
Surface Hardness | 3H |
Life Span | > 1,000,000 time knocking ; ≥ 100,000 time in paddling |
Operating Temperature | — 10℃ ~ +60℃ |
Storage Temperature | — 20℃ ~ +70℃ |
Storage Humidity | 20 ~ 85% RH (except congeal fog) |
Custom Service | Available |
OEM/ODM 3.5 Inch Resisitive Touch Panle Screen for Security Monitoring for Packing:
Anti-Static Foam+Paper Card+Ragged Bag+Carton
OEM/ODM 3.5 Inch Resisitive Touch Panle Screen for Security Monitoring for Term of payment:
1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T 50% the balance before delivery
4.Payment method can be nogotiated
