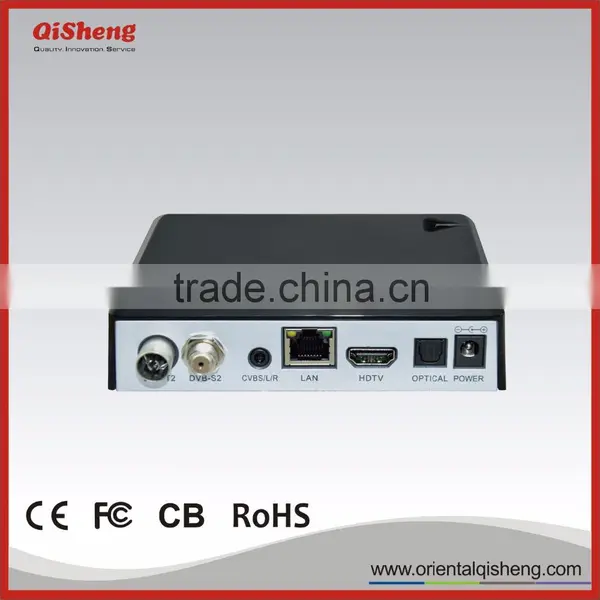

3 in 1 hd combo android dvb-s2 dvb-t2 satellite receiver

Name: 3 in 1 hd combo android dvb-s2 dvb-t2 satellite receiver
Brand: OEM
Price: USD $35 - 45 / Piece

FOB Price

USD $35 - $45 / Piece

1000 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

ATV-2019TS

Product Description

Quad-core Android5.1.1 TV BOX
Hardware
CPU	Amlogic S905 Quad-core 64-bit ARM® ™ A53 up to 2GHz
GPU	Penta-core ARM® Mali™ 450
3D Graphics	OpenGL ES 1.1/2.0 and Open VG 1.1 support
Video	UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding, supports H.264
RAM	DDRIII 1GB
ROM	Nand Flash 8GB ( 4~32GB Optional )
WiFi	Built in 2.4G WiFi
IR	Infra Remote control
LED Indicator	Power ON :blue; Standby :Red
Mould	Private Tooling
I/O	HDMI 2.0	4K 2K HDMI2.0 , HDCP2.2
	4*USB HOST	4 High speed USB 2.0,support U DISK and USB HDD
	1*TF CARD	Support 1~32GB
	1*AV	AV output
	1*SPDIF	Audio output
	1*RJ45	10/100 BaseT,
	Power	DC Adapter ( 12V/1A)
DVB-S2	DVB-S2 system standard:ETS 302 307
	Symbol Rates: QPSK,8PSK
	Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
	Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
	Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
	Symbol Rates: 1- 55 Msps
	Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
	Input Signal level: -84 dBm to 0 dBm (average power)
	ANT. Connector:IEC TYPE F
DVB-T2	DVB-T2 system standard:ETSIEN 302 755
	Support MPLP
	Demodulation: QPSK,16QAM,64QAM or 256QAM
	Forward error correction rate 1/2,2/3,3/4,3/5,5/6
	Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128
	Bandwith: 6/7/8MHz
	Input Frange range:54--860MHz Input Impedance:75 Ω
	Input Signal level: -84 dBm to 0 dBm (average power)
	ANT. Connector:IEC TYPE, female
Accessories	Adapter
	Gift Box
	IR remote control
	HDMI Cable
	User Manual
Software
OS	Android 5.1.1
Decoder	HD MPEG1/2/4,H.265/HEVC , HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10
Video	AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG
Music	MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE
Photo	HD JPEG/BMP/GIF/PNG/TIFF
Support Language	Chinese , English ,Germany ,Japanese, Korea etc. 24 languages
WiFi Hotpoint	Support
Mouse/ Keyboard	Support mouse and keyboard via USB Support 2.4G wireless mouse and keyboard via 2.4G USB dongle
KODI	Support local high-definition play, support plug-in installation and play
DRM	Optional :Microsoft Playready,Verimatrix ,Google Widevine
Others	support DLNA AirPlay Google TV Remote LAN Miracast 3D moive
Appliactions
Online	Browse all video websites ,support Netflix ,Hulu ,Flicker , Picasa,Youtube,Twitter ,Facebook,etc
Apps	Apps download freely form android market ,amazon appstore etc
Medium	Local Media playback,support HDD, U disck ,SD card
Talk online	Support SKYPE video call , facebook ,twitter ,Netflix ,Youtube , etc
Others	Support Email , office suit etc
Loading
Loading	Product size	13012032MM	Package size	15715782mm
	Product weight	188g	Package weight	572g
	PCS/CTN	20	Carton Size	425325330mm
