DAB desiccant Air breather filter / DAB series desiccant breathers are mainly used for the tank with moisture absorption and air filtration.
1. Product Description:
DAB series desiccant breathers are mainly used for the tank with moisture absorption and air filtration.
2. Product characteristics :
When moisture is absorbed, the drying agent granules will gradually change color from blue to pink.The granules should be changed when the color changes to pink.
2.1 Top cover material
High strength carbon steel
2.2 Straight tube material
PVC
2.3 Filter element material
Cotton wood pulp
2.4 Type of connection
Inch threaded connection
3. Type selection & Technical data & External dimension

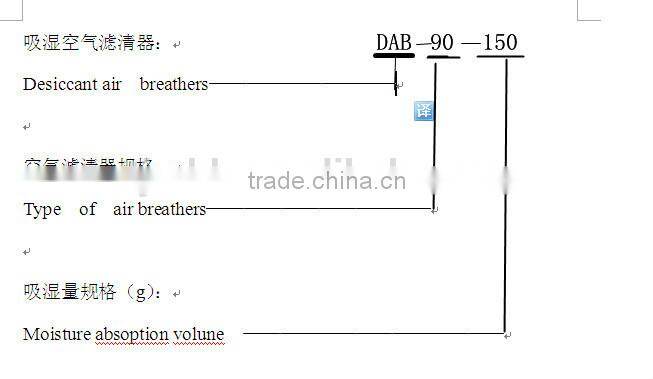

3.1 Order example
3.2 Technical Data and external dimension
| model | D | L1 | L2 | L3 | L | M | S | volume drying agent(g) | Hygroscopic agent weight (g) | Max.rate of air-flow (M2/MIN) |
Filter rating ( μm ) |
Model of Air breather |
| DAB-90-90 | 95.5 | 33 | 90 | 58 | 18 | G3/1 | 36 | 85 | 270 | 0.5 | 3 | |
| DAB-90-150 | 95.5 | 33 | 150 | 58 | 18 | G3/1 | 170 | 540 | 0.5 | 3 | AB-90 | |
| DAB-120-145 | 126.5 | 45 | 145 | 99 | 25 | G11/1 | 53 | 285 | 840 | 1.25 | 3 | AB-120 |
| DAB-120-255 | 126.5 | 45 | 255 | 99 | 25 | G11/1 | 570 | 1680 | 1.25 | 3 | AB-120 |
4. DAB desiccant Air breather filter MODEL :
DAB-90-90
DAB-90-150
DAB-120-145
DAB-120-255
