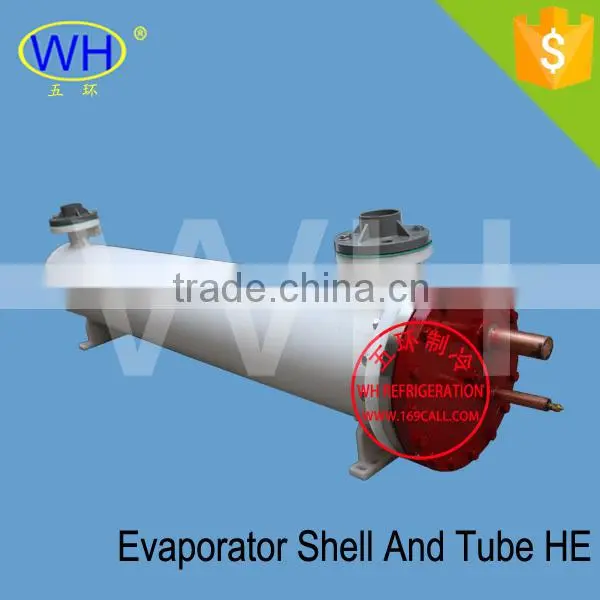

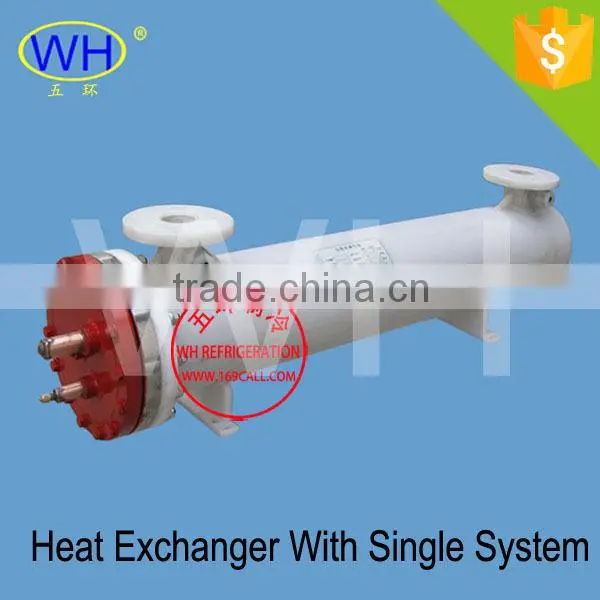

Shell and tube heat exchanger
Advantage :
1.Tube:produced using stainless steel pipe ,for direct immersion in strong acid ;
2.Shell :white PP plastic, have a good corrosion resistance;
3.Work temperature: minus 20 Deg C to 65 Deg C;
4.Can be disassembled to maintain and clean;
5.Customizable.
Feature :
[1]Shell&tube evaporator has a good effect of oil circulation and greatly increases the heat transfer effect by using the technology of densely covered holes and internal guide flow device. Under the same refrigerating output, compared with coil, it can increase the heat transfer effect of the evaporator and reduce the volume .It realized high power with small size.
[2]The core of shell&tube evaporator can be drawn off .Thus , it can be easily cleaned and maintained.And also needn't to recycling the refrigerant when cleaning, that's will be used less time to stop, start and vent the machine.
[3]The tube is made of stainless steel(316L) which has good corrosion resistance, high temperature resistance, good thermal conductivity , non-toxicity. no-scale ,no leakage and no contaminate of medium . It is convenient for the installation and maintenance of equipment.
[4]The length of evaporator can be adjusted according to that of condenser,to ensure that their appearance size can meet the customers' requirements for installed space.The tube and shell of our evaporator can be adjustable according to the customers' different using occasions.
Application :
Our products are widely used for cooling and heating in certain fields of special industries, such as
acid tank plating,
aluminum oxidation,
petrochemical industry,
light industry,
metallurgy,
electric power,
shipbuilding and marine environment etc.
Technical Data:
Model |
Power |
W | Q | External Dimensions |
Inlet/outlet Diameter |
||||||||||||
| kw | Kcal/h | A | B | C | D | E | F | G | H | R | L | a1 | a2 | a3 | |||
| WHB-8.0DKG | 8.0HP | 3.0 | 18.6 | 15.9 | 920 | 160 | 90 | 770 | 150 | 600 | 70 | 160 | 35 | 35 | 28 | 19 | 50 |
| WHB-10DKG | 10HP | 3.5 | 23.2 | 19.9 | 1160 | 160 | 90 | 1010 | 150 | 830 | 70 | 160 | 35 | 35 | 28 | 19 | 50 |
| WHB-12DKG | 12HP | 3.5 | 27.9 | 23.9 | 860 | 200 | 90 | 710 | 150 | 580 | 70 | 200 | 50 | 50 | 28 | 19 | 50 |
| WHB-15DKG | 15HP | 4.0 | 35.0 | 32.5 | 1030 | 200 | 100 | 880 | 200 | 630 | 70 | 200 | 50 | 50 | 28 | 22 | 63 |
| WHB-20DKG | 20HP | 6.0 | 46.5 | 39.9 | 1340 | 200 | 100 | 1190 | 200 | 940 | 70 | 200 | 50 | 50 | 38 | 22 | 63 |
| WHB-25DKG | 25HP | 8.0 | 58.1 | 49.9 | 1640 | 200 | 100 | 1490 | 300 | 1190 | 70 | 200 | 50 | 50 | 38 | 28 | 63 |
| WHB-30DKG | 30HP | 9.0 | 69.7 | 59.9 | 1270 | 250 | 100 | 1090 | 150 | 950 | 70 | 250 | 62 | 62 | 38 | 28 | 63 |
| WHB-40DKG | 40HP | 12.4 | 93.0 | 79.9 | 1600. | 250 | 100 | 1420 | 300 | 1200 | 70 | 250 | 62 | 62 | 54 | 28 | 75 |
| WHB-50DKG | 50HP | 15.0 | 116.3 | 100 | 1965 | 250 | 110 | 1785 | 400 | 1365 | 70 | 250 | 62 | 62 | 54 | 28 | 75 |
| WHB-60DKG | 60HP | 20.6 | 139.5 | 120 | 2300 | 250 | 110 | 2120 | 450 | 1500 | 70 | 250 | 62 | 62 | 65 | 38 | 75 |
| WHB-80DKG | 80HP | 26.7 | 186.0 | 160 | 2050 | 315 | 110 | 1860 | 400 | 1300 | 70 | 315 | 79 | 79 | 80 | 54 | 90 |
| WHB-100DKG | 100HP | 32.8 | 232.6 | 200 | 2490 | 315 | 120 | 2300 | 450 | 1680 | 70 | 315 | 79 | 79 | 80 | 54 | 90 |
|
Refrigerant R22 To=0°C Tk=28°C Ti=12°C Tu=7°C
Q rated cooling capacity (kw)
W chilled water flow rate (m³/h)
Kcal/h: Kcal/h * 1000
Unit:mm
| |||||||||||||||||
1.To guarantee constant inprovement of technology , the above parameters shall be changed without further notice .
2.The package will base on the actual situation,if without specific requests .
3.All product can be customziable according to customers' requirements , you just need to send design by MSN,Email ,Fax and other way for us reference .
WH Factory is one of the largest Shell And Tube Heat Exchanger manufacturer in China ,who offer high quality heat exchanger with TA1 Titanium ,TA2 Titanium ,304 SS ,316 L ,copper and other materials, all products can be customized by request .
1). Professional manufacturer, ISO9001-2008
2). More than 6 years’ experiences of manufacturing.
3).Customized solutions and products
4).OEM/Small order accepted
5).Lead time 30 days
6).Tooling in house
7).High quality control
8).Competitive price
Our organisation is contributing huge patrons from the markets of China and other abroad countries such as Singapore, Middle-East, Africa, Malaysia, Europe, Denmark, America, Australia, UK, etc. Apart from these countries, we are also looking forward to entertain our more clients, by offering them our reliable products.
1:Before Service: All the process of Technical Production deportment and Strict Quality Control System. We also can provide the sample for your test quality.
2:Middle Service: Any question, pls feel free to tell us we will solve any doubt.
3:After Service: All the products problems, pls call us and E- mail us at any time, we will reply to you at the shortest time.
Payment Terms
Type of Payment: T/T100% payment in advanced, Paypal, Escrow, Western Union, L/C,etc.
Remark: If you have any question in payment, pls show us so that we will discuss.

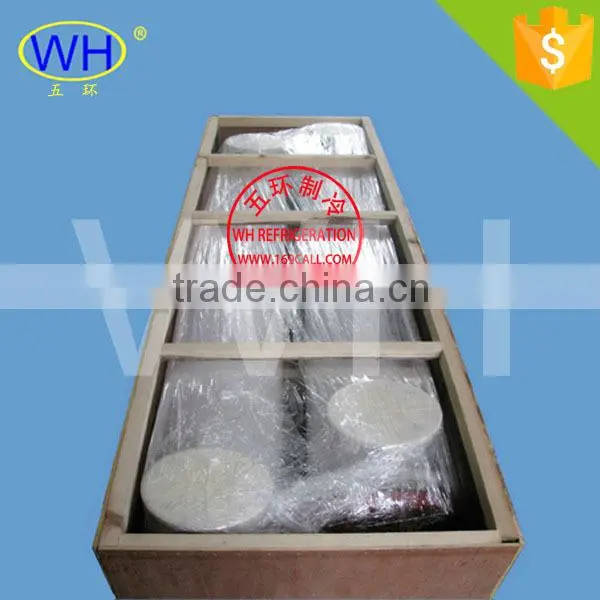

Package:Standard export packing .
Shipping Terms:
1.For the sample order: we also use International Express freight: Such as: DHL, TNT, EMS, UPS and so on.
2.If your quantity is large, we will consider the Air or Sea Transport, all the detail terms we will discuss in the Contract.
Q1.Are you factory?
A.Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China
Q2.May i get your product catalogue?
A.Sure, you are welcome to download the latest catalogue at our web /en,E-book , or contact us directly.
Q3.Are there any discount for the heat exchangers?
A.Yes. Bigger quantity will enjoy lower discount!
Q4.What is the MOQ?
A.We accept loose quantity order,mixed order,any trial orders.
Q5.What information needed if I want a quotation?
A .Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.
Q6.Can we visit your company/factory before place the order?
A.Sure.Welcome anytime.
Q7.What's your contact way ?
A.
Att:Ms Joanna Zhang
QQ:1747660290
Wechat:qq1592268859
Email:wh(at)
Cell:86-15356255661
Tel:86-577-86198864
Skype:wzwuhuan
