Yukun GSX08-2915-CNG-25 8 tubes container semi trailer for sale
Technical parameter table of container semi trailer for sale
| Product Type | GSX08-2915-CNG-25 |
| Numbers of cylinder | 8 |
| Nominal pressure | 25Mpa |
| Working temperature | -40~60 |
| Media filled in | CNG |
| Material | 30CrMoE/4130X |
| Total volume | 23.32m3 |
| Filling volume | 6960Nm3 |
| Filling weight | 5008kg |
| Overall dimension | 12192*2438*1930mm |
Main material and equipment of container semi trailer for sale chassis
| Girder | High tensile steel cutting, automatic welding |
| Axle | Fuhua bridge |
| Tires | Steel wire tire, 12pcs |
| Leg | Jost A440 single action |
| Traction pin | Jost 3.5*(90) |
| Equipped with ABS anti-lock brake device | |
| Pneumatic chain brakes | |
| Two spare tire rack, two root electrostatic, license plate reversible pedal | |
| Equipped with two powder fire extinguishers(5kg) | |
| Vehicle standard tools | |
Advantage of container semi trailer for sale
1. The inner discharging devices of container semi trailer for sale are set at cylinders for discharging the residual liquid left in cylinders at any time, which can prevent the stress corrosion on cylinder body induced by hydrogen sulfide contained in residual liquid to extend the service life of cylinders.
2. Safety devices (rupture disk + fusible plug structure ) of container semi trailer for sale are used at both ends of cylinder to improve the safety feature greatly.
3. The steel belts and bolts for fixing cylinders of container semi trailer for sale become wider and bigger respectively which can increase the pull of steel belts to avoid cylinders turning during transportation.
4. container semi trailer for sale with ABS interface and control device.
5. Hexagonal structure of end plug is changed to short column + hexagonal. The column part can block the anti-rotation peg to avoid falling off.
Ordering tips of container semi trailer for sale
Usual type of our container semi trailer for sale:
CNG cylinder quantity: 6/7/8/9/10/11/12 tubes
Diameter: 559/635/711mm
Working pressure: 20/25Mpa
CNG loading capacity: high to 4.3ton, 6500Nm3
Our container semi trailer for sale can be customized, if you have interest, pls inform your detail request below:
1. Volume of CNG gas transporting for one day (Nm3/day);
2. Distance between the gas source and your target place;
3. Limit of weight, height, width and length of the container semi trailer for sale in the users' country.
Inspection process of container cylinder for container semi trailer for sale

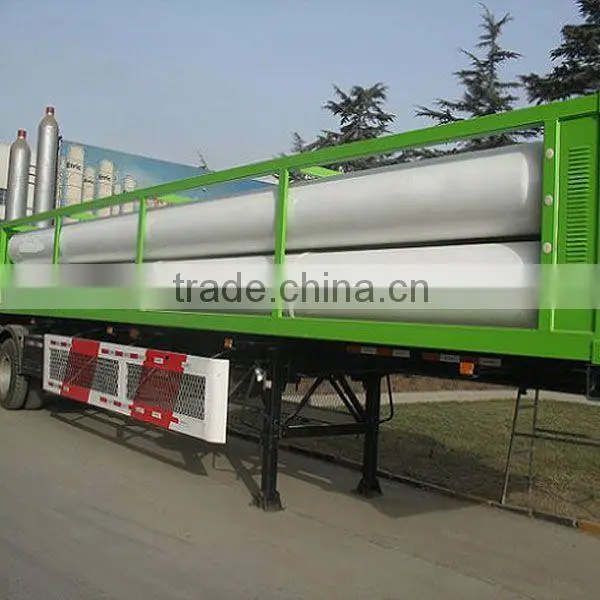

Photo of container semi trailer for sale
