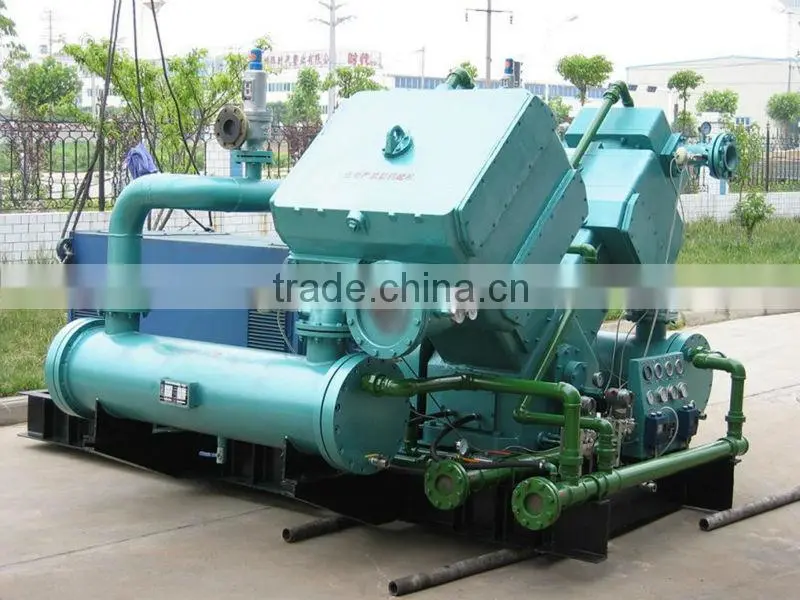

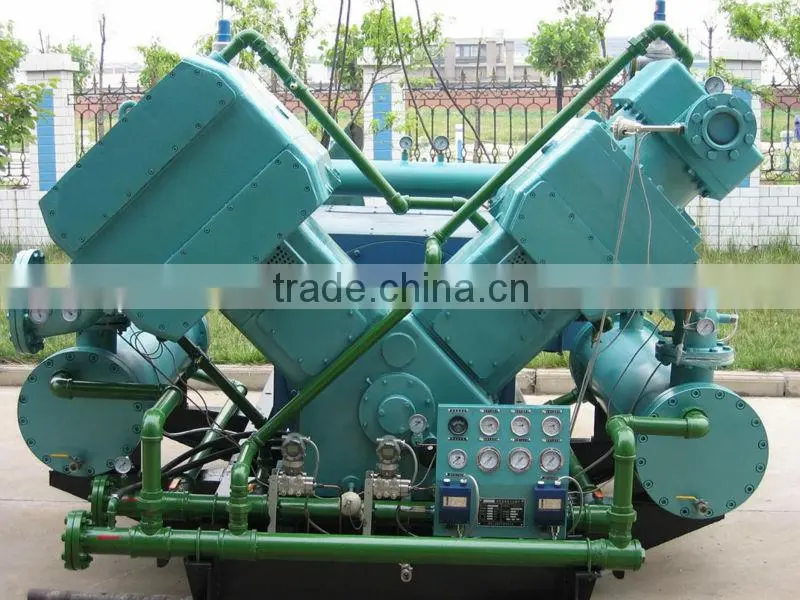

15Mpa nitrogen booster compressor
Nitrogen booster compressor
- Nitrogen booster compressor is a device designed specially to compress nitrogen gas for storage;
- Nitrogen booster compressor is generally reciprocating types with the most common being guided piston/metal diaphragm;
- Nitrogen booster compressor is used to compressor the gas to enormous pressures,often in excess of 40,000PSI, so that it maybe stored in usable amounts;
- The structure of nitrogen booster compressor includes1 stage,2 stage,3 stage,4 stage to meet the client's different demands.
Parameters of nitrogen booster compressor:
Main Technical Parameters of nitrogen booster compressor | |||||||
Model |
Medium |
Capacity (m³/min) |
Inlet Pressure (Mpa) |
Outlet Pressure (Mpa) |
Power (kw) |
Overall Dimension (mm) |
Weight (kg) |
VW-10/8 |
Nitrogen |
10 |
Atmospheric |
0.8 |
75 |
2200x1600x1550 |
2200 |
VW-1.5/8-50 |
Nitrogen |
1.5 |
0.8 |
5 |
75 |
2300x1600x1750 |
3200 |
VW-2.5/4-150 |
Nitrogen |
2.5 |
0.4 |
15 |
110 |
2200x1600x1800 |
3200 |
VW-1.7/6-21 |
Nitrogen |
1.7 |
0.6 |
2.1 |
37 |
1780x1450x1550 |
2250 |
VW-2/5-30 |
Nitrogen |
2 |
0.5 |
3 |
55 |
2000x1500x1850 |
2150 |
VW-1.3/13-25 |
Nitrogen |
1.3 |
1.3 |
2.5 |
30 |
2000x1550x1550 |
2200 |
VW-1.67/8-140 |
Nitrogen |
1.67 |
0.8 |
14 |
110 |
2400x1550x1750 |
3100 |
2VW-16.7/0.5-20 |
Nitrogen |
16.7 |
0.05 |
2 |
185 |
4200x1600x1600 |
6500 |
2VW-28.5/0.4-20 |
Nitrogen |
28.5 |
0.04 |
2 |
280 |
4500x1650x1750 |
7500 |
2VW-6.5/5-40 |
Nitrogen |
6.5 |
0.5 |
4 |
220 |
4200x1650x1550 |
6000 |
2VW-2/6-80 |
Nitrogen |
5 |
0.6 |
8 |
280 |
4200x1650x1550 |
6000 |

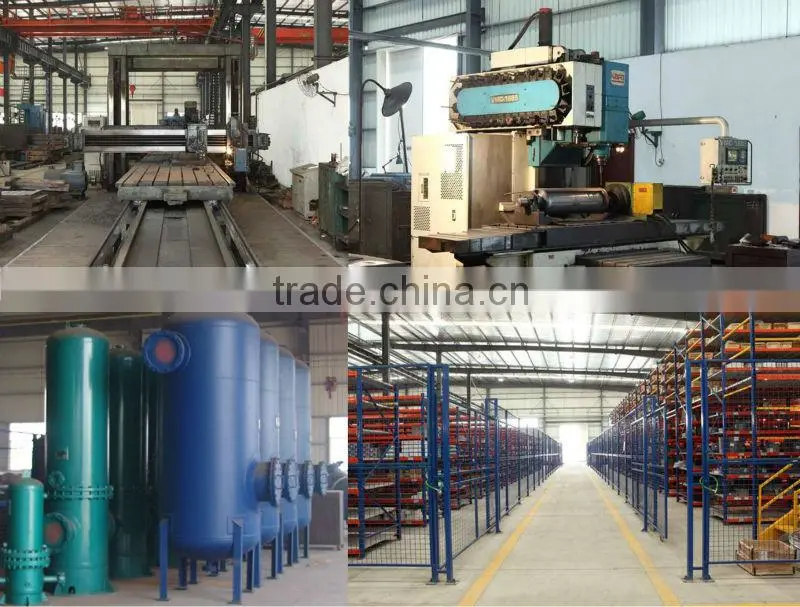

Workshop of nitrogen booster compressor
Why choose our nitrogen booster compressor?
Our company is committed to gas equipment development and production within 20 years, specially in nitrogen booster compressor, have a world class design team, advanced manufacturing center and focus manufacturing quality.
Our company certificate nitrogen booster compressor
Packing of nitrogen booster compressor
Transport of nitrogen booster compressor
