Nitrogen Gas Compressor Nitrogen Compressor

Name: Nitrogen Gas Compressor Nitrogen Compressor
Brand: YUKUN
SKU: 100285455
Availability: InStock

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Piston, ZW type

Configuration:

Stationary

Zhengzhou Yukun Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Piston, ZW type

Configuration Stationary

Power Source AC Power

Lubrication Style Oil-free

Mute No

Place of Origin Henan, China

Brand Name YUKUN

Model Number ZW-0.2/3-25

Voltage 380V

Dimension(L*W*H) 1305x700x900mm

Weight 450kg

Certification ISO9001:2000

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

nitrogen compressor
1.Capacity: 0.2m3/min
2.Outlet pressure: 2.5Mpa
3.Power: 5.5KW
4.ISO9001

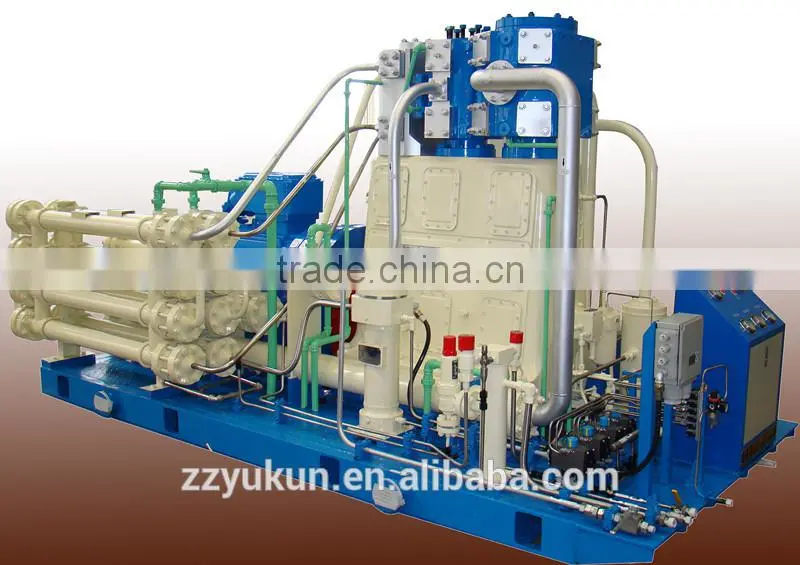

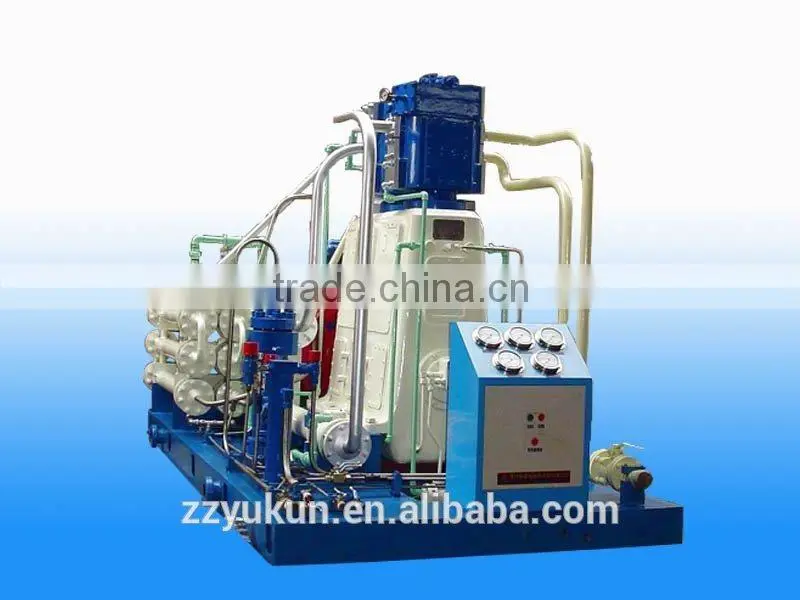

Nitrogen gas compressor nitrogen compressor

Nitrogen compressor

Nitrogen compressor is a device designed specially to compress nitrogen gas for storage;
Nitrogen compressor is generally reciprocating types with the most common being guided piston/metal diaphragm;
Nitrogen compressor is used to compressor the gas to enormous pressures,often in excess of 40,000PSI, so that it maybe stored in usable amounts;
The structure of nitrogen compressor includes1 stage,2 stage,3 stage,4 stage to meet the client's different demands.

Parameters of nitrogen compressor

Nitrogen compressor Technical Parameter
Model	Medium	Capacity (m³/min)	Inlet Pressure (Mpa)	Outlet Pressure (Mpa)	Power (KW)	Overall Dimension (mm)	Weight (KG)
ZW-4.2/8-10	Nitrogen	4.2	0.8	1	30	1500x650x1350	1000
ZW-0.8/6-30	Nitrogen	0.8	0.6	3	30	1600x750x1150	980
ZW-0.5/6-16	Nitrogen	0.5	0.6	0.6	11	1550x700x900	540
ZW-0.34/8-30	Nitrogen	0.34	0.8	3	11	1550x700x900	480
ZW-0.2/6-16	Nitrogen	0.2	0.6	1.6	4	1285x590x900	320
ZW-0.83/(2-5)-25	Nitrogen	0.83	0.2-0.5	2.5	22	1400x1196x940	1250
ZW-1/6-25	Nitrogen	1	0.6	2.5	30	1500x650x1500	700
ZW-1/(4-6)-30	Nitrogen	1	0.4-0.6	3	30	1500x650x1350	950
ZW-1.2/5-10	Nitrogen	1.2	0.5	1	15	1600x800x1150	840
ZW-0.2/3-25	Nitrogen	0.2	0.3	2.5	5.5	1305x700x900	450
