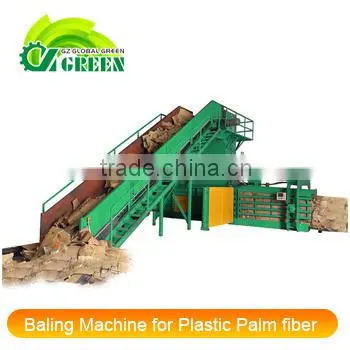

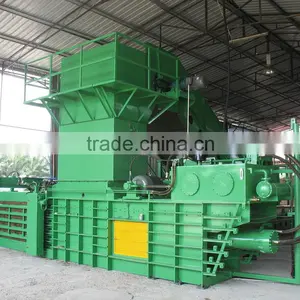

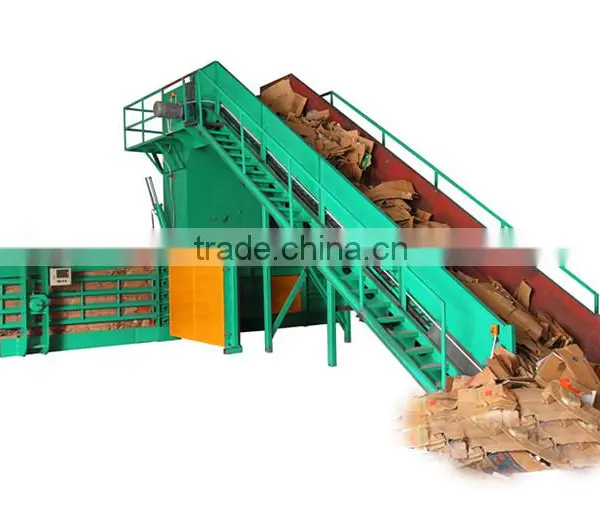

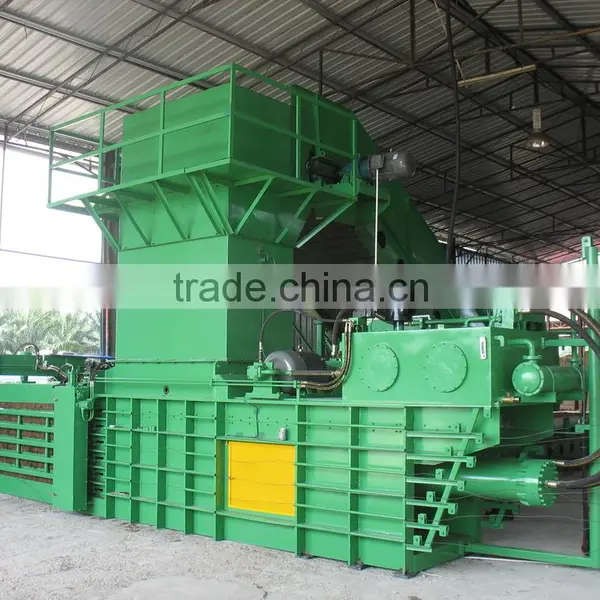

Widely Used Product Automatic Hydraulic Paper&Cardboard Baling Press Machine
US$ 58,000 - 66,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware, straw/crops/waste paper/cardboard/carton/bottles/PE film
Packaging Type:
Film
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Directly Provide Automatic Hydraulic Horizontal Baling Press MachineUS$ 20,000 - 90,000MOQ: 1 Set -
Automatic Hydraulic Horizontal Paper Baling Press Machine of FactoryUS$ 20,000 - 90,000MOQ: 1 Set
-
High Quality Global Green Automatic Hydraulic Baler for Paper Carton CardboardUS$ 20,000 - 90,000MOQ: 1 Set
-
Automatic Horizontal Baling Machine for Plastic Palm FiberUS$ 20,000 - 90,000MOQ: 1 Set
-
Hydraulic Automatic Horizontal Hydraulic Paper BalerUS$ 20,000 - 90,000MOQ: 1 Set
Condition
New
Application
Other, Machinery & Hardware, straw/crops/waste paper/cardboard/carton/bottles/PE film
Packaging Type
Film
Packaging Material
Other, plastic film
Automatic Grade
Automatic
Driven Type
Hydraulic
Voltage
200V/380V/415V
Power
30KW
Place of Origin
Guangdong, China
Brand Name
Global Green
Model Number
AB-100
Weight
23000kg
Dimension(L*W*H)
8700*1220*4120
Certification
CE Certificate
After-sales Service Provided
Engineers available to service machinery overseas
Widely Used Product Automatic Hydraulic Paper&Cardboard
Baling Press Machine
1. Suitable for: waste paper,corrugated paper plastic film,cardboard box and so on.
2. Automatic operation by PLC programming control.
3.Fully automatic hydraulic operation,increasing efficiency and saving human resources
4.Easy to store and transport
5.Simple installation,no special requirement base

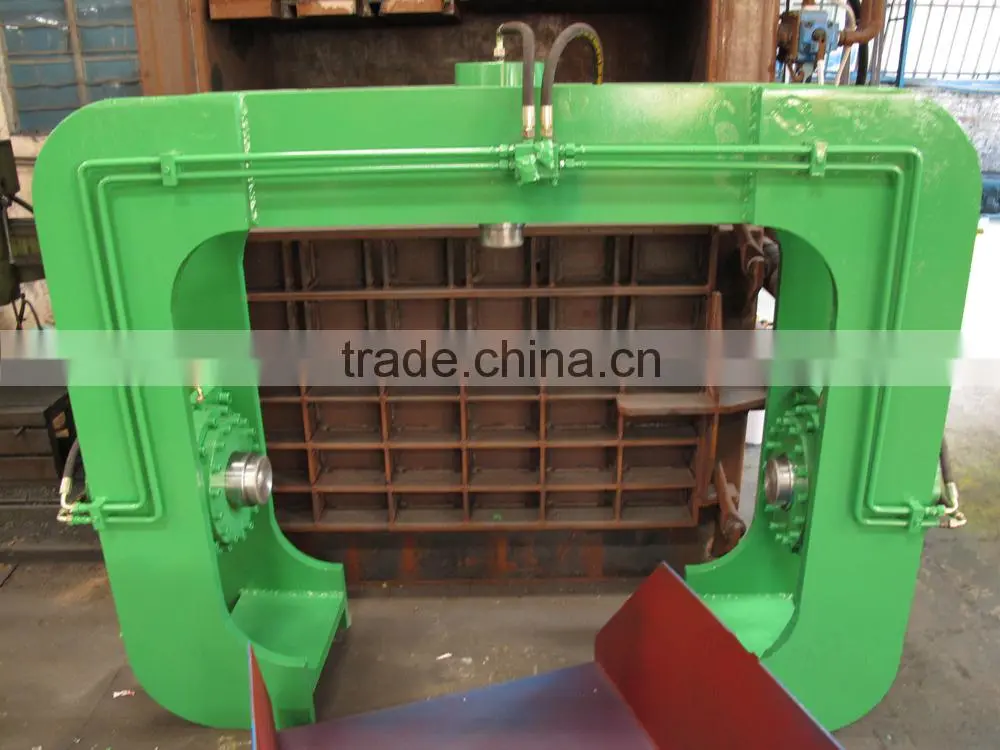

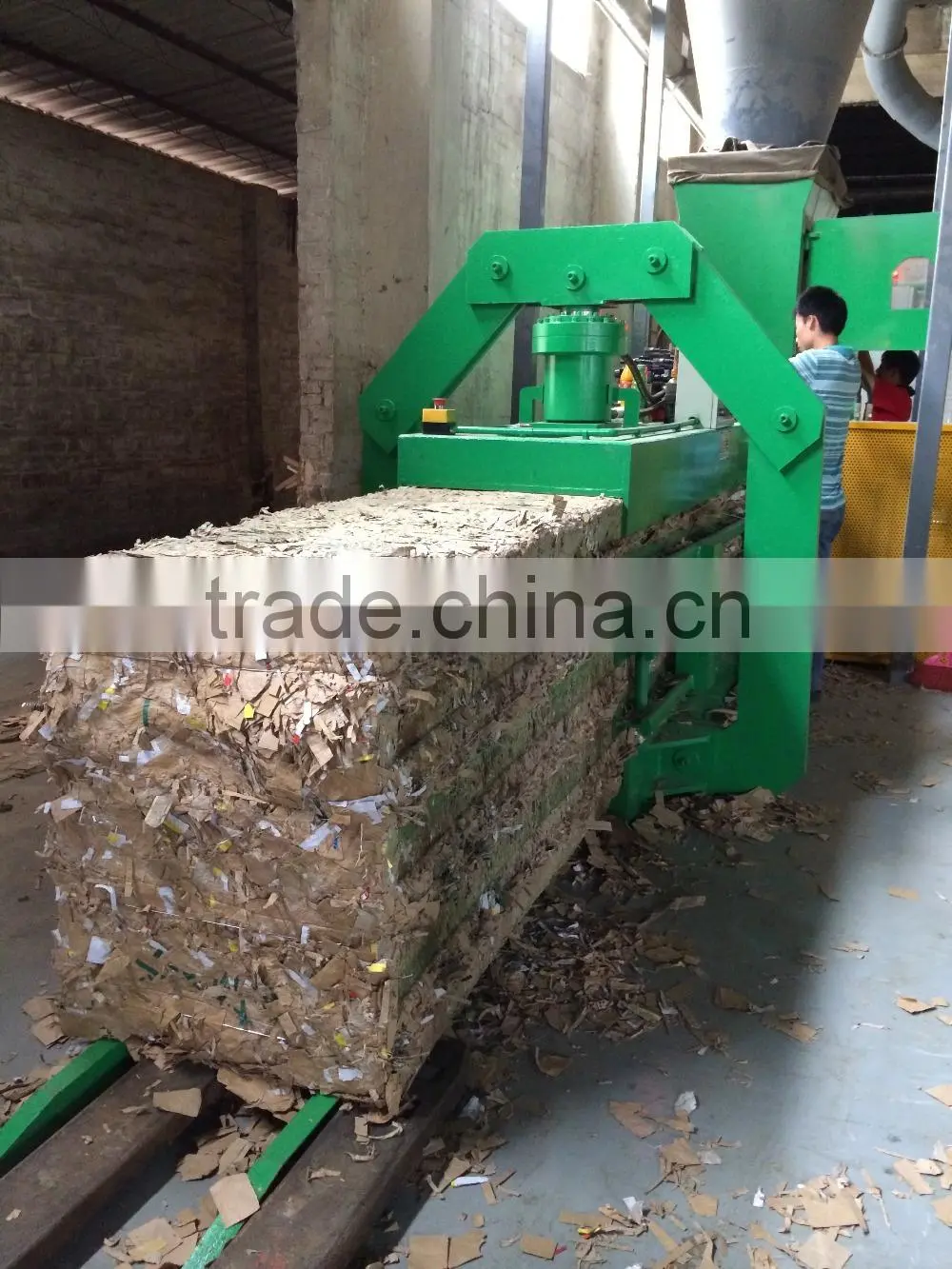

Portal Frame:

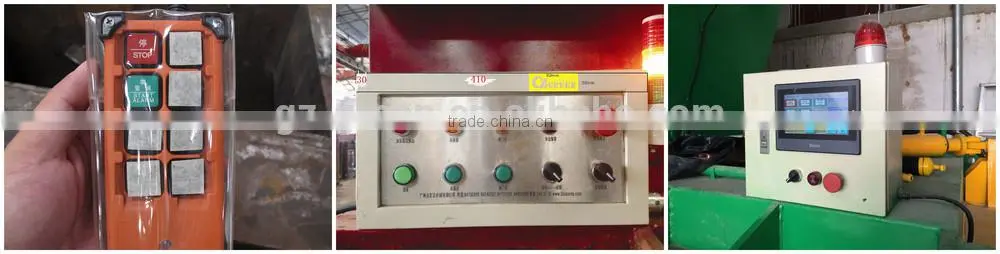

Three Control Mode :

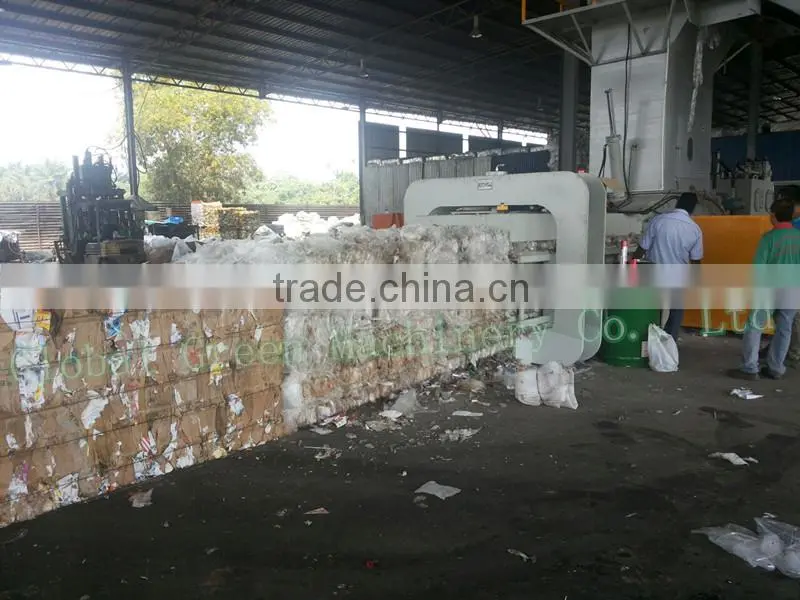

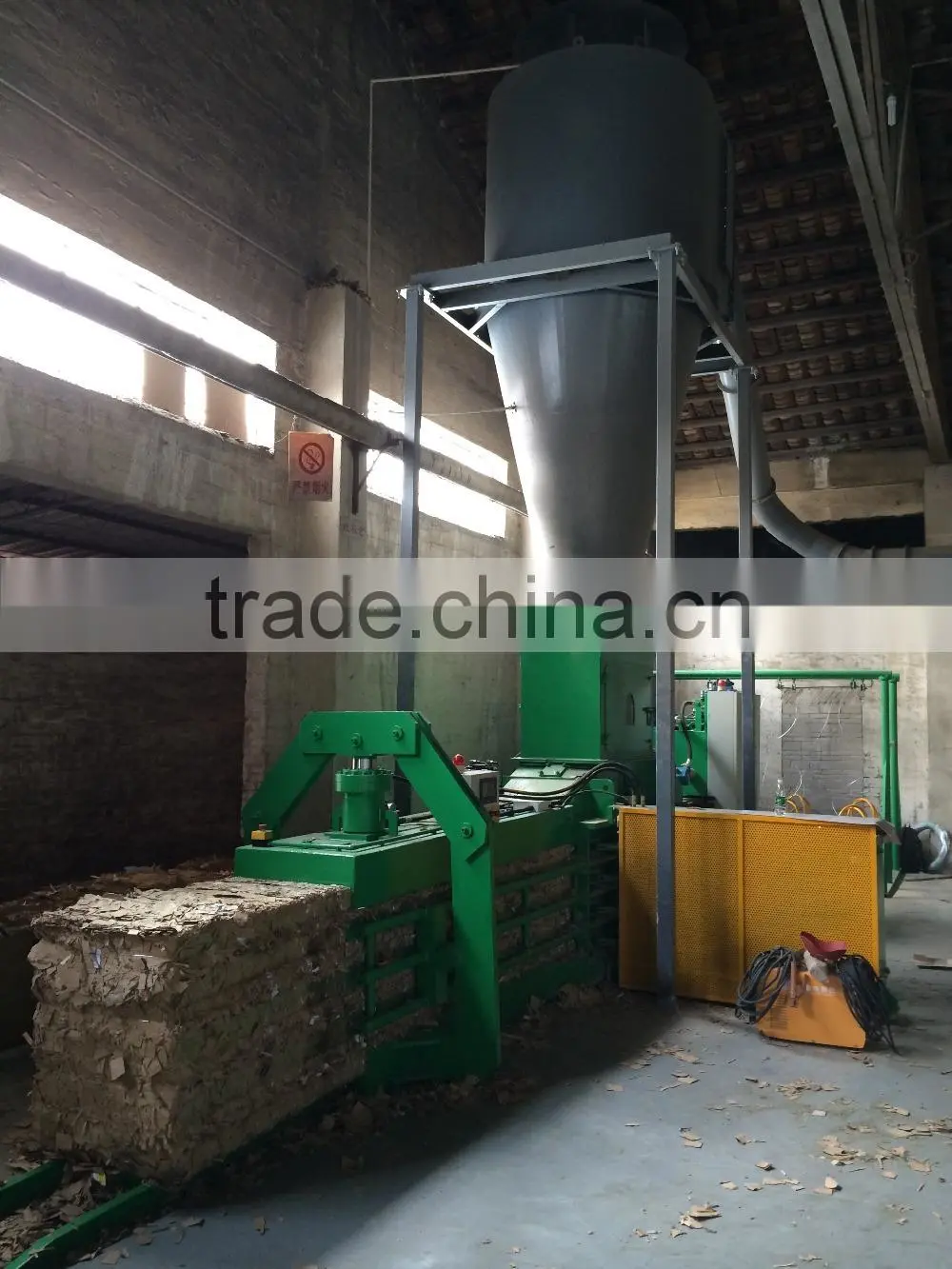

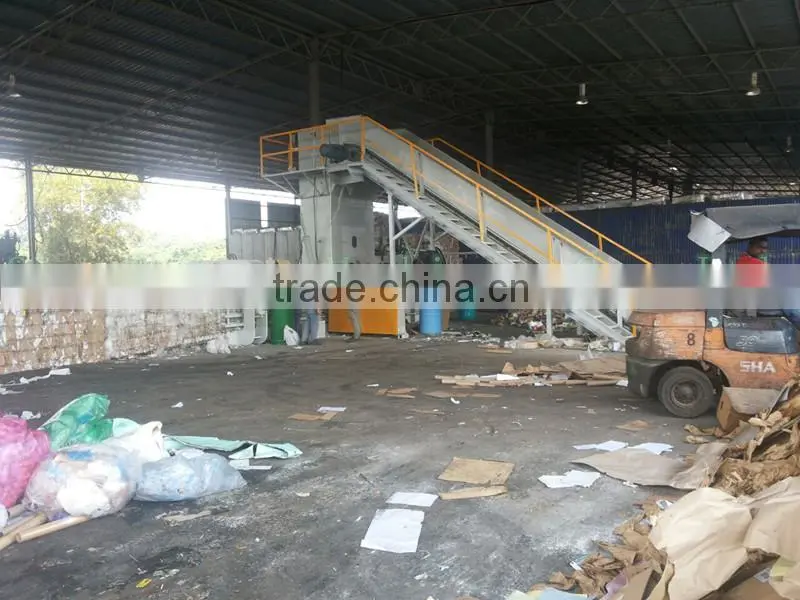

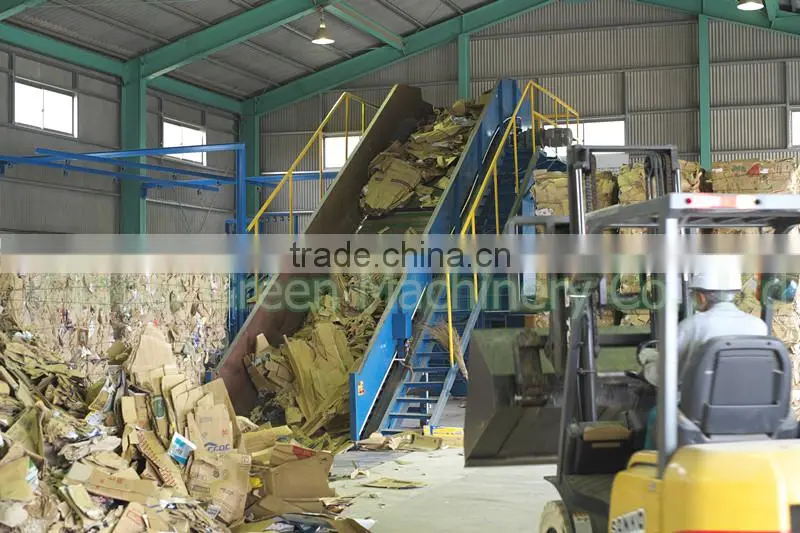

Followings is some actual use in different countries.
| MODEL | AB-80 | AB-100 | AB-120 | AB-150 |
| VOLTAGE | 200V/380V/415V | 200V/380V/415V | 200V/380V/415V | 200V/380V/415V |
| MOTOR POWER | 30KW | 37KW | 45KW | 45KW*2 |
| OPERATING MODE | AUTO | AUTO | AUTO | AUTO |
| BALE DEMENSION | L(FREE)*W920*H920 | L(FREE)*W920*H920 | L(FREE)*W920*H920 | L(FREE)*W1100*H1250 |
| CYCLINDER | 220mm | 250mm | 270mm | 300mm |
| FEEDING | L1860*W900mm | L1860*W900mm | L1860*W900mm | L1860*W1060mm |
| MAX. WORKING PRESSURE | 800KN | 1000KN | 1200KN | 1500KN |
| WORKING POWER | 17Mpa | 17Mpa | 17Mpa | 17Mpa |
| NOISE | 80DB | 80DB | 80DB | 80DB |
| OIL TANK | 900L | 1100L | 1100L | 1600L |
| WIRE QUANTITY | 4 | 4 | 4 | 5 |
| BALE DENSITY | 450~500KG/m3 | 500~520KG/m3 | 520~550KG/m3 | 520~550KG/m3 |
| WORKING EFFICIENCY | 4~5T/H | 6~7T/H | 8~9T/H | 18~20T/H |
| MACHINE WEIGHT | 18000kg | 23000kg | 25000kg | 35000kg |
| MACHINE DEMENSION | L8660*W12000*H4120mm | L8700*W12200*H4120mm | L8700*W12200*H4120mm | L10200*W16200*H5370mm |
