Factory Directly Provide Automatic Hydraulic Horizontal Baling Press Machine
US$ 20,000 - 90,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware, straw/crops/newspaper/cardboard/carton...
Packaging Type:
Cartons, Case, Film
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Hydraulic Horizontal Paper Baling Press Machine of FactoryUS$ 20,000 - 90,000MOQ: 1 Set -
High Quality Global Green Automatic Hydraulic Baler for Paper Carton CardboardUS$ 20,000 - 90,000MOQ: 1 Set
-
Automatic Horizontal Baling Machine for Plastic Palm FiberUS$ 20,000 - 90,000MOQ: 1 Set
-
Hydraulic Automatic Horizontal Hydraulic Paper BalerUS$ 20,000 - 90,000MOQ: 1 Set
-
Automatic Horizontal Hydraulic Paper Baling Press MachineUS$ 20,000 - 90,000MOQ: 1 Set
Condition
New
Application
Other, Machinery & Hardware, straw/crops/newspaper/cardboard/carton...
Packaging Type
Cartons, Case, Film
Packaging Material
Paper, Plastic
Automatic Grade
Automatic
Driven Type
Hydraulic
Voltage
200 V/380 V/415 V
Power
37KW
Place of Origin
Guangdong, China
Brand Name
Global Green
Model Number
AB-100
Weight
23000kg
Dimension(L*W*H)
8700*12200*4120
Certification
CE Certificate
After-sales Service Provided
Engineers available to service machinery overseas
Factory Directly Provide Automatic Hydraulic Horizontal Baling Press Machine

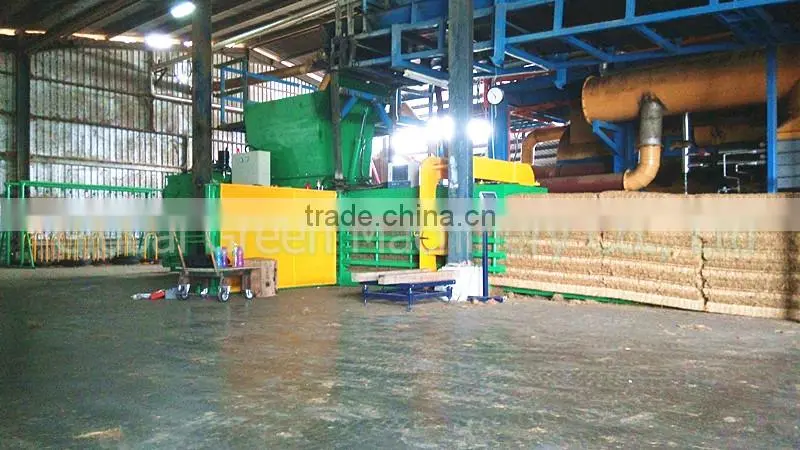

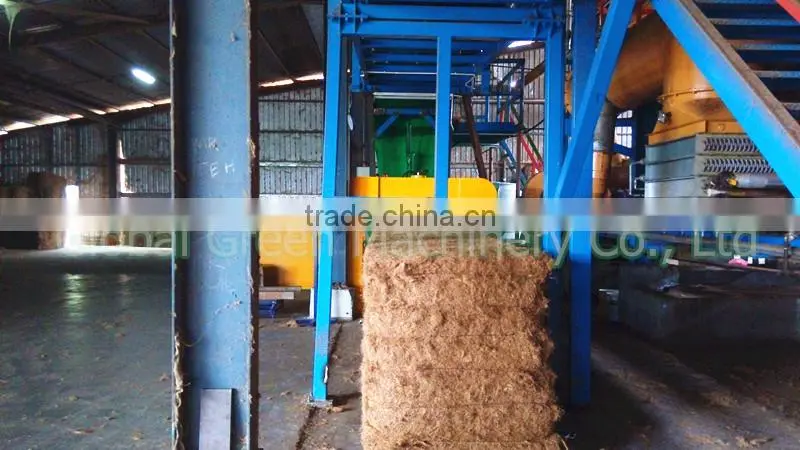

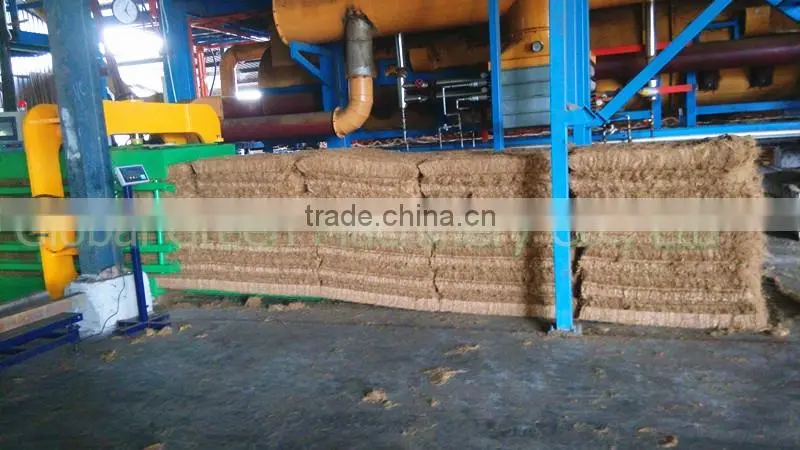

AB series is ideally suited for high capacity applications.It is designed to handle material such as waste paper,corrugated paper,plastic film,cardboard and boxes and the palm rind and so on.These series balers can add material ,bale and bundle automatically by PLC programming control.
1.Automatically Control
2.Improve Efficiency and Save Manpower
3.Safely and Simplely Running under PLC Control System
4.High output with Low Power Consumption

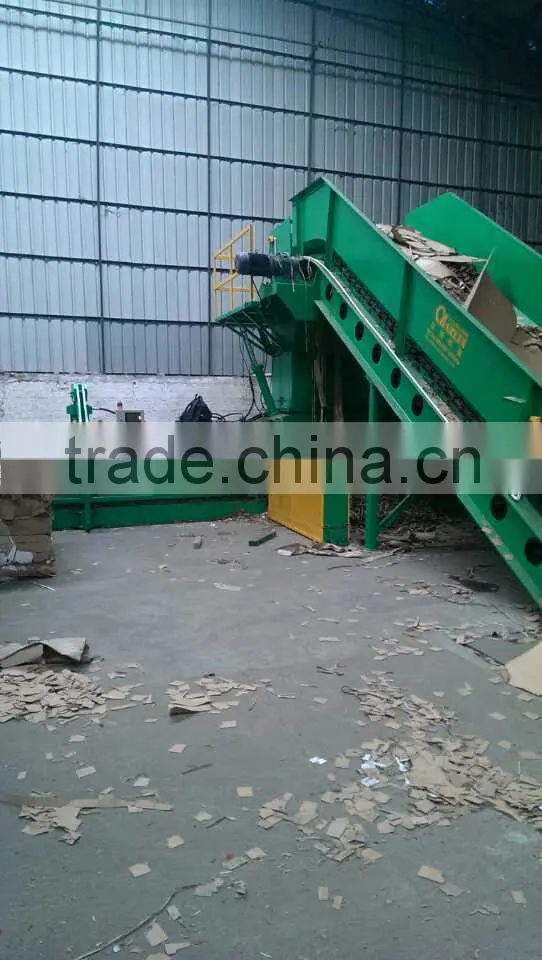

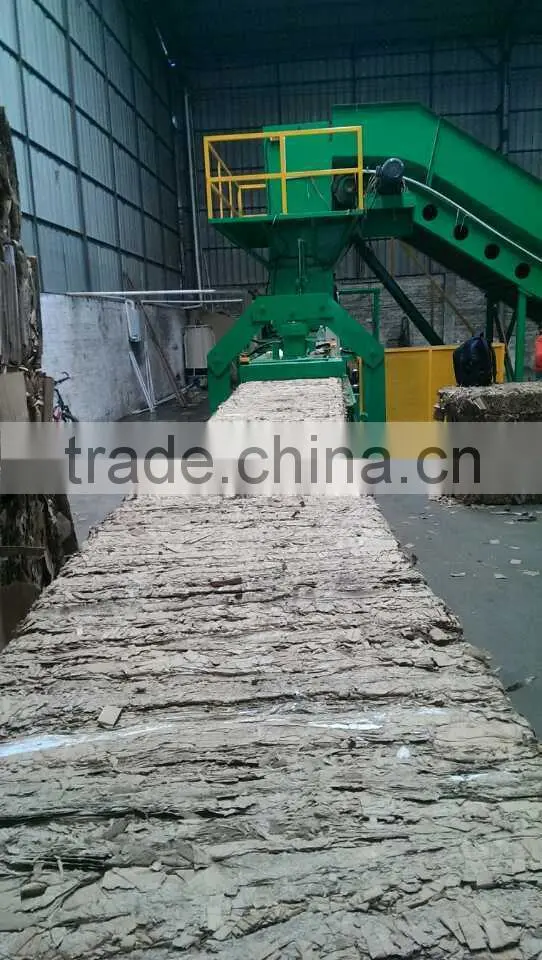

This Series Machine is operated with conveyor. Dimension of conveyor is adjustable to your actual situation.
Three Modes of control
| MODEL | AB-80 | AB-100 | AB-120 | AB-150 |
| VOLTAGE | 200V/380V/415V | 200V/380V/415V | 200V/380V/415V | 200V/380V/415V |
| MOTOR POWER | 30KW | 37KW | 45KW | 45KW*2 |
| OPERATING MODE | AUTO | AUTO | AUTO | AUTO |
| BALE DEMENSION | L(FREE)*W920*H920 | L(FREE)*W920*H920 | L(FREE)*W920*H920 | L(FREE)*W1100*H1250 |
| CYCLINDER | 220mm | 250mm | 270mm | 300mm |
| FEEDING | L1860*W900mm | L1860*W900mm | L1860*W900mm | L1860*W1060mm |
| MAX. WORKING PRESSURE | 800KN | 1000KN | 1200KN | 1500KN |
| WORKING POWER | 17Mpa | 17Mpa | 17Mpa | 17Mpa |
| NOISE | 80DB | 80DB | 80DB | 80DB |
| OIL TANK | 900L | 1100L | 1100L | 1600L |
| WIRE QUANTITY | 4 | 4 | 4 | 5 |
| BALE DENSITY | 450~500KG/m3 | 500~520KG/m3 | 520~550KG/m3 | 520~550KG/m3 |
| WORKING EFFICIENCY | 4~5T/H | 6~7T/H | 8~9T/H | 18~20T/H |
| MACHINE WEIGHT | 18000kg | 23000kg | 25000kg | 35000kg |
| MACHINE DEMENSION | L8660*W12000*H4120mm | L8700*W12200*H4120mm | L8700*W12200*H4120mm | L10200*W16200*H5370mm |
