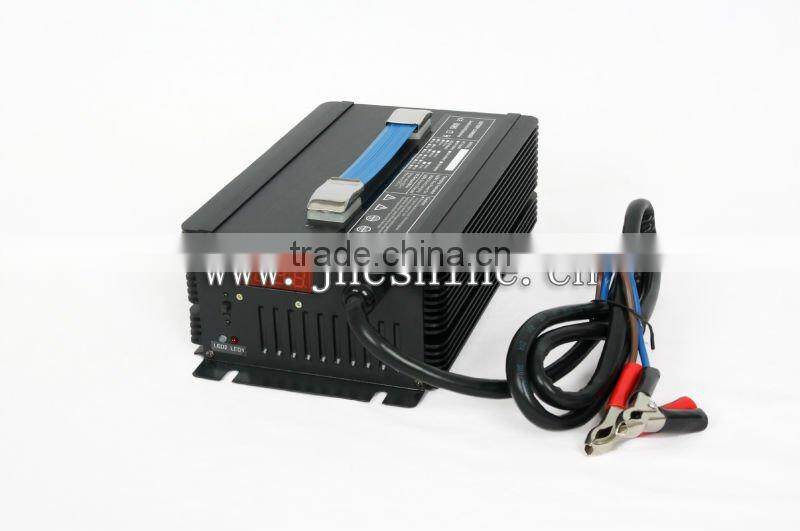

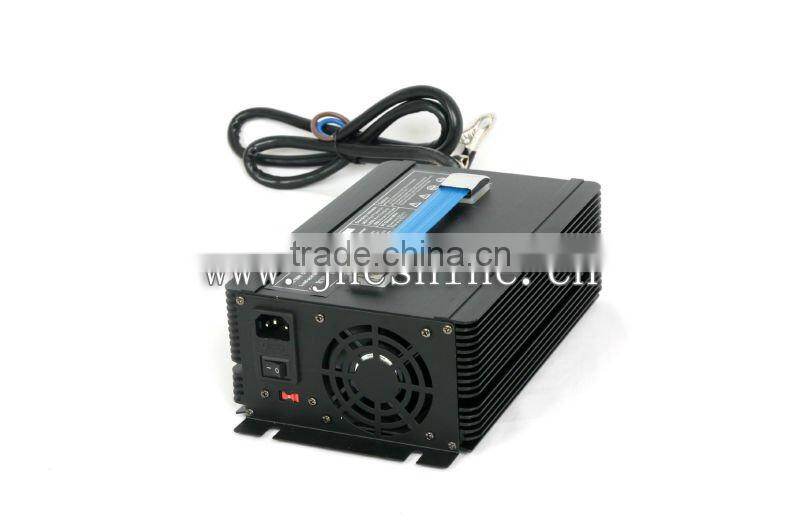

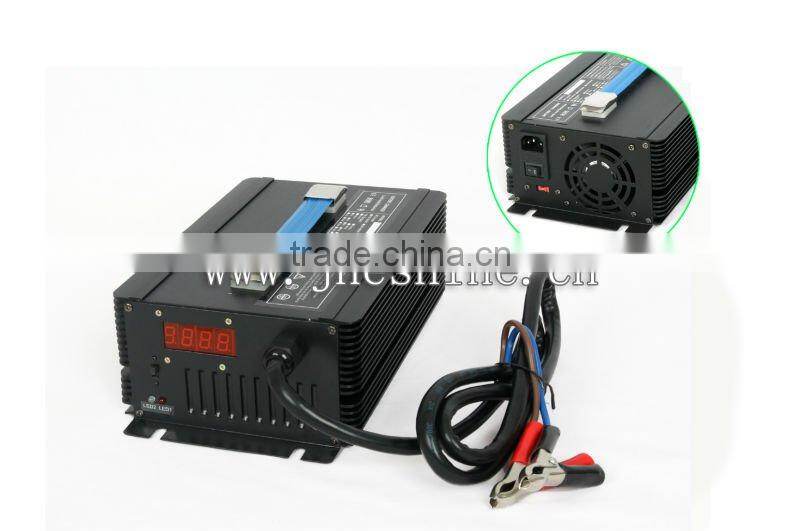

12volt Electric Car Battery Chargers

Name: 12volt Electric Car Battery Chargers
Brand: E-Shine
SKU: 100274625
Availability: InStock

Negotiable MOQ: 12 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

E-Shine

Model Number:

12V50A

Use:

Other, Other, Standard Battery

Jinan E-Shine Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name E-Shine

Model Number 12V50A

Use Other, Other, Standard Battery

Place of Origin Shandong, China

Specifications:

Features:

1.short-circuit protection,charger o/p current automatically when short-circuit.

2.overload protection:charger o/p current limited automatically when overload.

3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.

4.3-stage charging mode: CC(constant current), CV(constant voltage) and float stage.

5. Reliable, elegant,Small size, light,

6.charging state:two LED display.

7.all kinds of production has passed the CE certification.

8.Efficiency: ≥88 %( full capacity)

Operate Condition:

1.Temperature: -10~45 Degree

2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)

3.Life Expectancy: 50,000H at 25 Degree

Apply to:

1. Electrical forklift

2. Electrical motorcycle

3. Electrical tourist-car

ES-C (1200W) Battery Charger Datasheet:

No.	spec	Constant voltage			Constant current	Transition/ Cut-off		Weight	size
No.	spec	Lead-acid	Li-Mn	Lifepo4	Max (A)	Lead-acid	Li	(kg)	(mm)

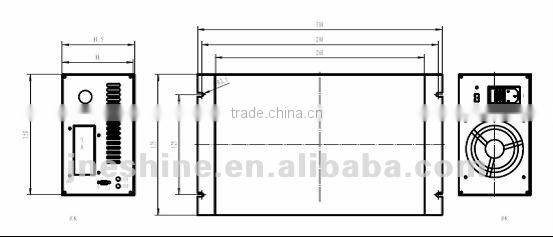

1	12V	14.7V	16.8V	14.6V	50	10	2.5	4.5	26017590
2	24V	29.4V	29.4V	29.2V	33	6.6	1.65
3	36V	44.1V	42.0V	43.8V	20	4	1
4	48V	58.8V	54.6V	58.4V	18	3.6	0.9
5	60V	73.5V	75.6V	73.0V	15	3	0.75
6	72V	88.2V	84.0V	87.6V	12	2.4	0.6
Features	1	Full automatic transition of CC, CV and Float/cut-off
	2	Precise limit of voltage & current, guarantee fully charged and avoid over charge
	3	Protections: over current, over voltage, short circuit and reverse polarity
	4	High Efficiency: 95%~98%, PFC: 0.96, eco-friendly
	5	Two LED indicators, Aluminium, elegant and reliable
	6	CE & ROHS Certified, Safety and High Quality
Note: Cut-off point for Li battery is 5% of CC, and it can be set between 5%-10%.
