Help Center12v 220v Unicycle Battery Charger
Related Products
-
48V 10Ah Lithium Battery Charger/48V2A Intelligent Li-Mn Battery ChargerUS$ 19.8 - 23MOQ: 12 Pieces -
36v 2.5a Lithium Ion Battery Charger For Electric Bicycle ScooterUS$ 1 - 100MOQ: 200 Pieces
-
12v 24v Intelligent Full Auto Battery ChargerUS$ 1 - 100MOQ: 200 Pieces
-
36V Trickle Battery Charger for Self Balancing ScooterUS$ 18 - 23MOQ: 12 Pieces
-
Self Balancing Scooter Battery Charger 24V/36V/48VUS$ 19.8 - 23MOQ: 12 Pieces
12v 220v inverter with battery charger / Li-Ion Type battery charger and 12V Nominal Voltage lifepo4 battery pack , intelligent battery charger
1.SMPS battery charger
2.Multi protections
3.Life Expectancy: 50,000H at 25 Degree
4. elegant,reliable
5.CE ROHS
| size | 135*90*50mm |
| max output power | 120W |
net weight |
0.8KG |
certfication |
CE,RoHS |
24V lithium cell battery charger case for E-scooter , bttery charger for car and motorcycle
Apply to : Electrical forklift Electrical motorcycle Electrical tourist-car
Features:
1.short-circuit protection,charger o/p current automatically when short-circuit.
2.overload protection:charger o/p current limited automatically when overload.
3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.
4.3-stage charging mode: CC(constant current), CV(constant voltage) and float stage.
5. Reliable, elegant,Small size, light,
6.charging state:two LED display.
7.all kinds of production has passed the CE certification.
8.Efficiency: ≥88 %( full capacity)
Operate Condition:
1.Temperature: -10~45 Degree
2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)
3.Life Expectancy: 50,000H at 25 Degree
Portable Battery Charger for Electric Bike/Intelligent Electric Bike Battery Charger
ES-W(120W) Battery Charger Datasheet :
No. |
spec |
Constant voltage |
Constant current |
Transition/ Cut-off |
Weight |
size |
|||
Lead-acid |
Li-Mn |
Lifepo4 |
Max (A) |
Lead-acid |
Li |
(kg) |
(mm) |
||
1 |
12V |
14.7V |
16.8V |
14.6V |
6 |
1.2 |
0.3 |
0.8 |
135*90*50 |
2 |
24V |
29.4V |
29.4V |
29.2V |
4 |
0.8 |
0.2 |
||
3 |
36V |
44.1V |
42.0V |
43.8V |
2.5 |
0.5 |
0.125 |
||
4 |
48V |
58.8V |
54.6V |
58.4V |
2 |
0.4 |
1.5 |
||
Features |
1 |
Full automatic transition of CC, CV and Float/cut-off |
|||||||
2 |
Precise limit of voltage & current, guarantee fully charged and avoid over charge |
||||||||
3 |
Protections: over current, over voltage, short circuit and reverse polarity |
||||||||
4 |
High Efficiency: 95%~98%, PFC: 0.96, eco-friendly |
||||||||
5 |
Two LED indicators, Aluminium, elegant and reliable |
||||||||
6 |
CE & ROHS Certified, Safety and High Quality |
||||||||
Note: Cut-off point for Li battery is 5% of CC, and it can be set between 5%-10%. | |||||||||

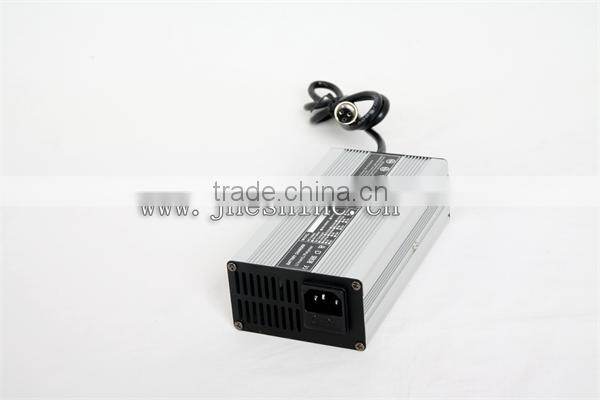

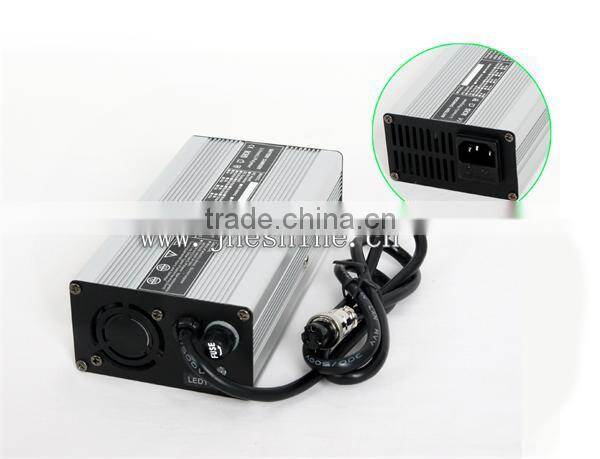

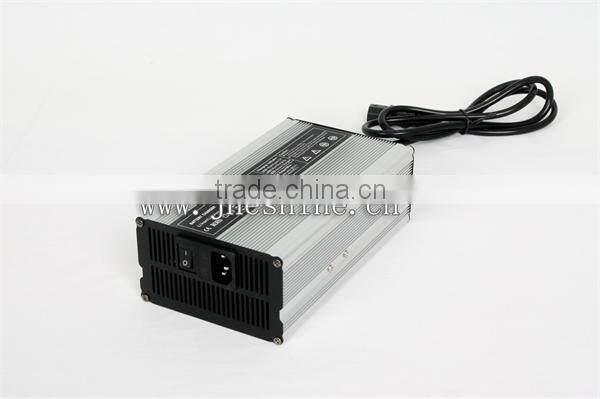

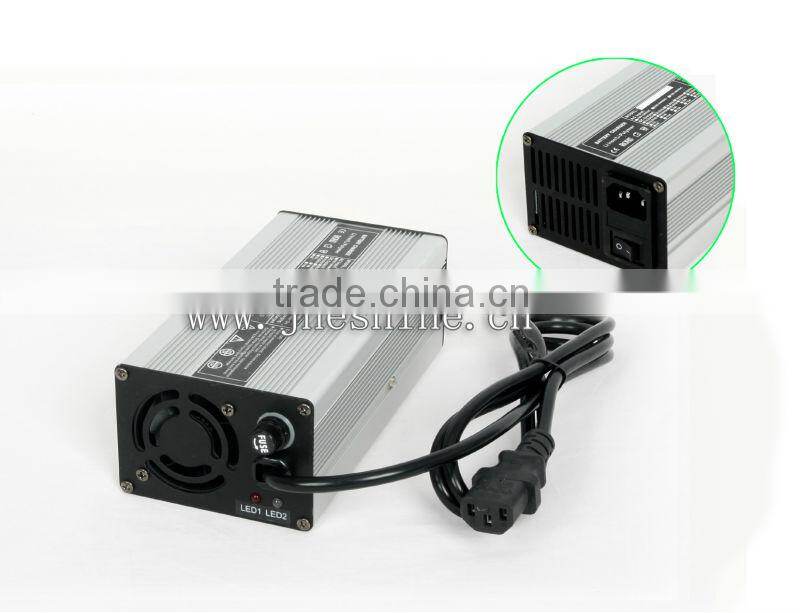

Product Show :
1.It has aluminium case,elegant appearance,light weight and small size.We own high-level developing engineers and manufacturing staffs and have abilty to manufacture large order.

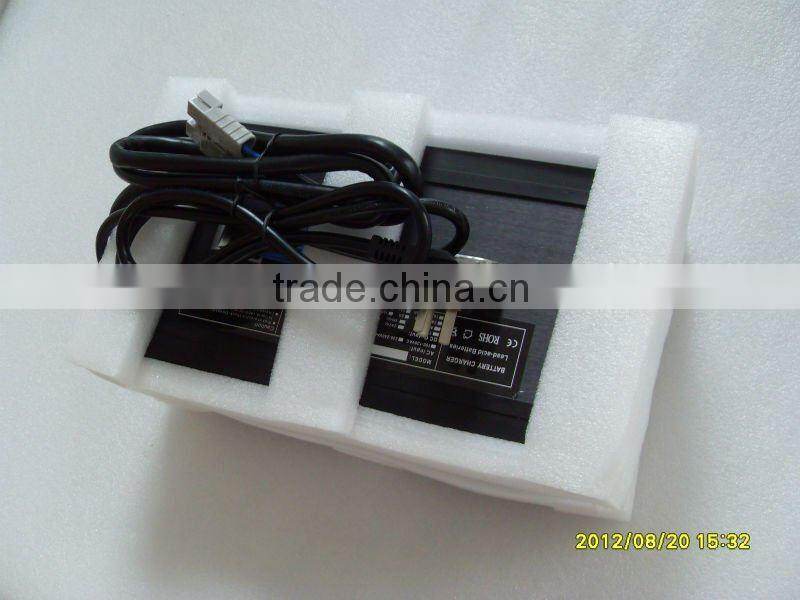

2.Packing
carton ,no mark;There is product name, model, name of manufacturer, safety approval, serial number,
User Manual and packing list in the package box.
3. Certification
4.TiP
Charger should be stored in package box when it is not used. And warehouse temperature should be -40~70℃, and relative humidity is 5~95%. In the warehouse, there should not be harmful gas, inflammable, explosive
products, and corrosive chemical products, and strong mechanical vibration, shock and strong magnetic field affection.
The package box should be above ground at least 20cm height, and 50cm away from wall, thermal source, and vent.
Under this requirement, product has 2 years of storage period, and should be rechecked when over 2 years
