Specifications
1.SMPS battery charger2.Multi protections
3.Life Expectancy: 50,000H at 25 Degree
4.elegant,reliable
5. CE ROHS
Power Tools Battery Charger Specifications:
size |
135*90*50mm |
net weight |
0.8kg |
max output power |
120W |
certfication |
CE |
Power Tools Battery Charger Features:
1.short-circuit protection,charger o/p current automatically when short-circuit.
2.overload protection:charger o/p current limited automatically when overload.
3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.
4.3-stage charging mode: CC(constant current), CV(constant voltage) and float stage.
5. Reliable, elegant,Small size, light,
6.charging state:two LED display.
7.all kinds of production has passed the CE certification.
8.Efficiency: ≥88 %( full capacity)
Power Tools Battery Charger Operate Condition:
1.Temperature: -10~45 Degree
2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)
3.Life Expectancy: 50,000H at 25 Degree
Power Tools Battery Charger Apply to:
1. Electrical forklift
2. Electrical motorcycle
3. Electrical tourist-car
ES-W (120W) Battery Charger Datasheet :
No. |
spec |
Constant voltage |
Constant current |
Transition/ Cut-off |
Weight |
size |
|||
Lead-acid |
Li-Mn |
Lifepo4 |
Max (A) |
Lead-acid |
Li |
(kg) |
(mm) |
||
1 |
12V |
14.7V |
16.8V |
14.6V |
6 |
1.2 |
0.3 |
0.8 |
135*90*50 |
2 |
24V |
29.4V |
29.4V |
29.2V |
4 |
0.8 |
0.2 |
||
3 |
36V |
44.1V |
42.0V |
43.8V |
2.5 |
0.5 |
0.125 |
||
4 |
48V |
58.8V |
54.6V |
58.4V |
2 |
0.4 |
1.5 |
||
Features |
1 |
Full automatic transition of CC, CV and Float/cut-off |
|||||||
2 |
Precise limit of voltage & current, guarantee fully charged and avoid over charge |
||||||||
3 |
Protections: over current, over voltage, short circuit and reverse polarity |
||||||||
4 |
High Efficiency: 95%~98%, PFC: 0.96, eco-friendly |
||||||||
5 |
Two LED indicators, Aluminium, elegant and reliable |
||||||||
6 |
CE & ROHS Certified, Safety and High Quality |
||||||||
Note: Cut-off point for Li battery is 5% of CC, and it can be set between 5%-10%. | |||||||||

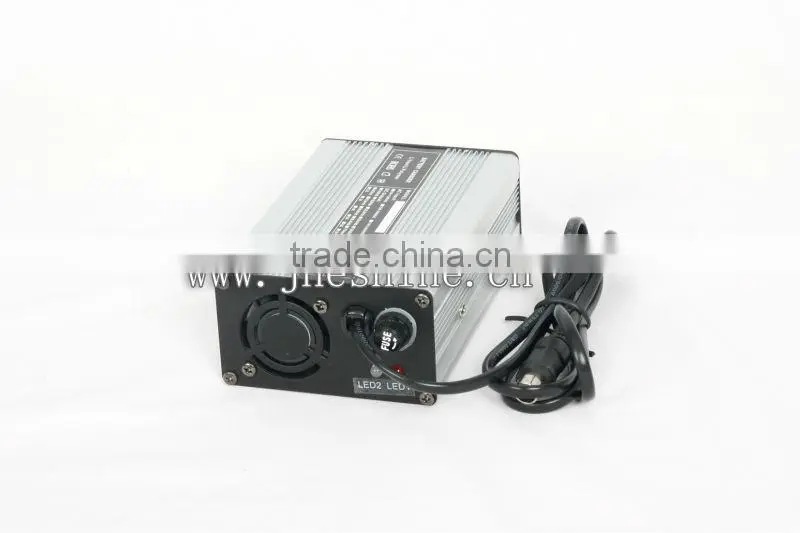

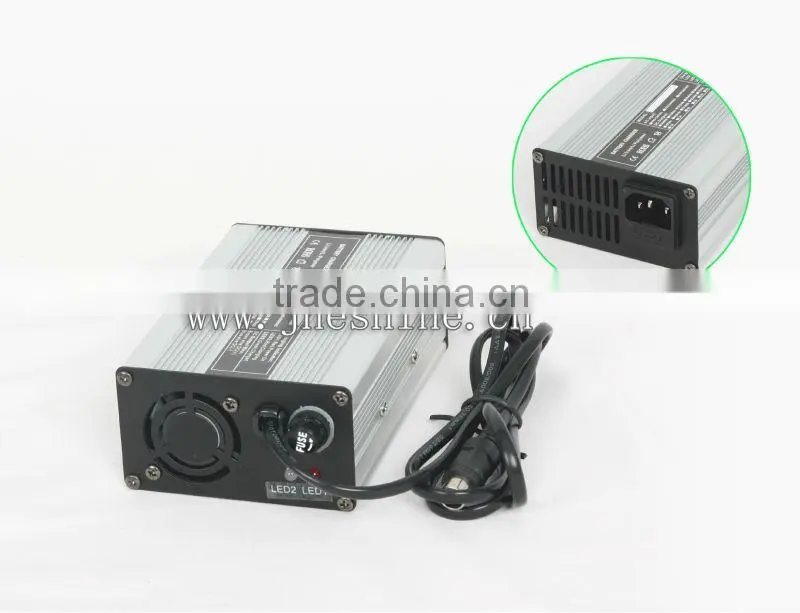

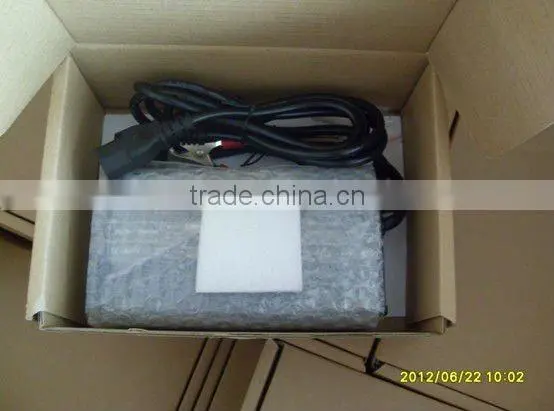

Detail show:

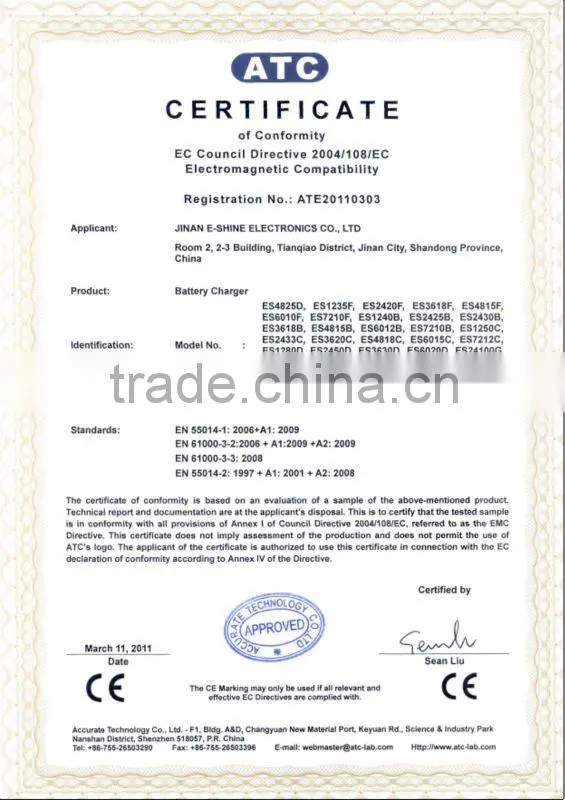

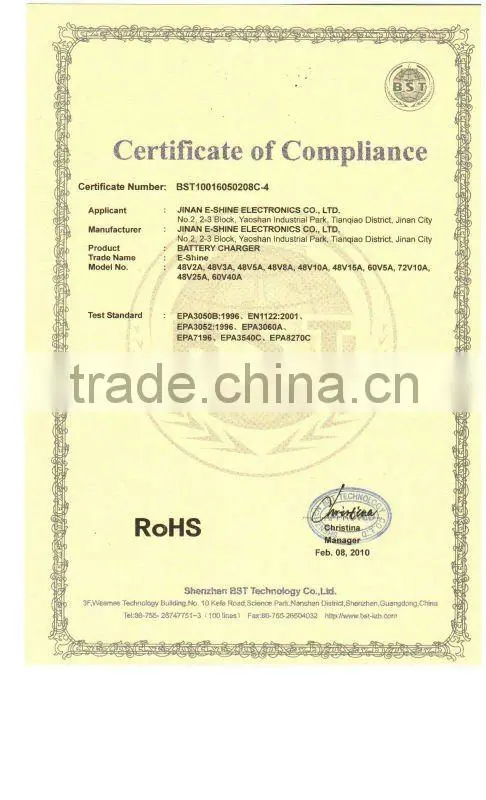

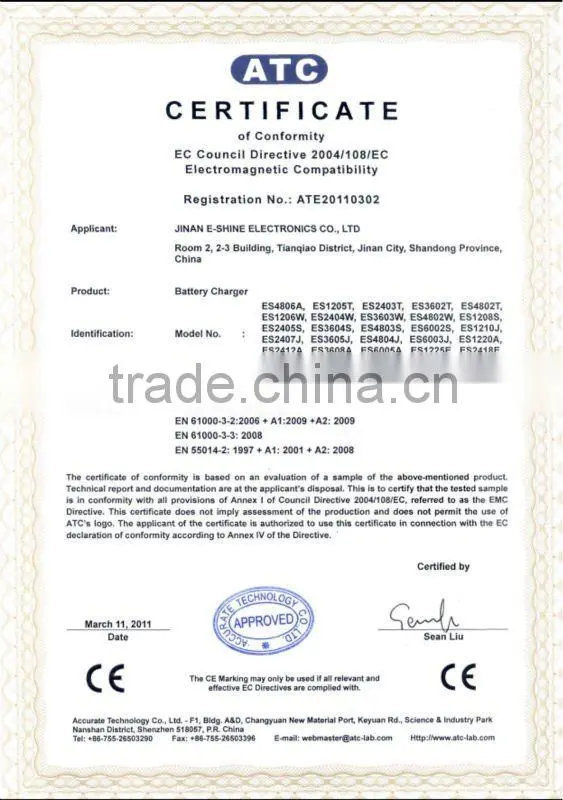

certificate:
