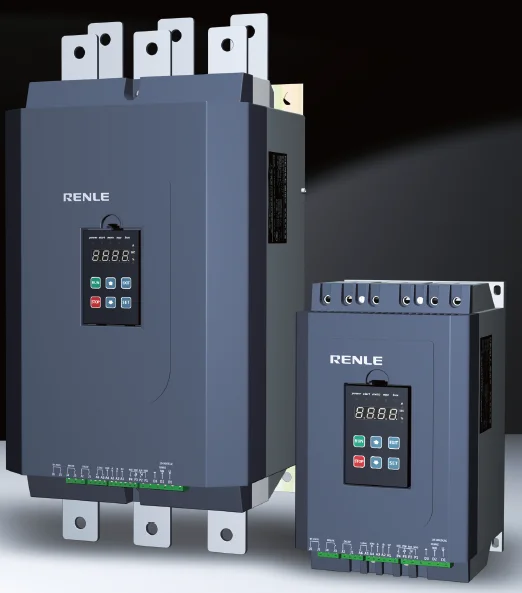

ISO Certified Energy-saving Soft Starter-SSD1

ISO Certified Energy-saving Soft Starter-SSD1 thumbnail-1
ISO Certified Energy-saving Soft Starter-SSD1 thumbnail-2
ISO Certified Energy-saving Soft Starter-SSD1 thumbnail-3
ISO Certified Energy-saving Soft Starter-SSD1 thumbnail-4
ISO Certified Energy-saving Soft Starter-SSD1 photo-1
ISO Certified Energy-saving Soft Starter-SSD1 photo-2
ISO Certified Energy-saving Soft Starter-SSD1 photo-3
ISO Certified Energy-saving Soft Starter-SSD1 photo-4
US$ 400 - 20,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
RENLE
Model Number:
SSD1
Contact Supplier Request Quote Chat Now
Shanghai Renle Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name RENLE
Model Number SSD1
Output Power 401 - 600KW
Output Type Triple
Output Voltage 380V
Type Other, AC
Output Frequency 50Hz/60Hz
Output Current 40A~1200A
Product Details

SSD1 Typical Application

SSD1 series intelligent soft starter could be widely applied to electric power, metallurgy, petroleum, petrochemical, mining, chemical industry, construction, building materials, municipal project, arm industry, light industry, textile, printing and dyeing, paper industry, and pharmacy and so on.
Product Introduction

SSD1 Working principal

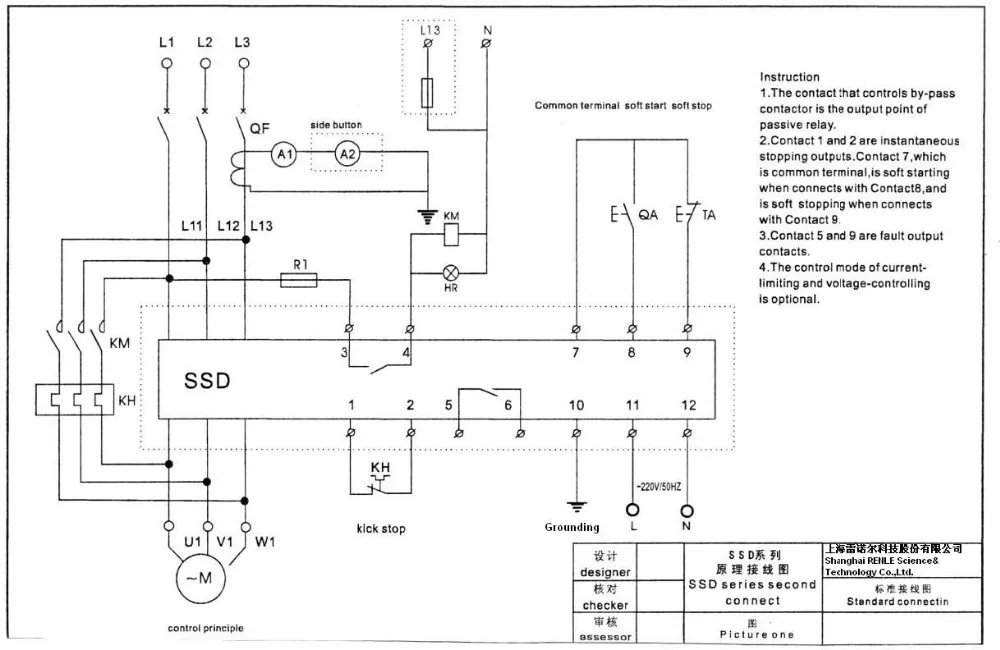

Main circuit of SSD1 soft starter adopts 6 SCRs (anti-parallel connected in series) connecting with stator circuit of AC motor. Based on function of SCR electronic switch, the soft starter makes use of microprocessor to adjust trigger angle to change SCR’s conducting angle, so as to change motor input voltage value to realize the control of motor soft start. When completing the start, the output of soft starter will reach rated voltage. Then contactor KM which controls three-phase bypass will switch on to make motor run into the grid.

Product Parameters
SSD1 SOFT STATER 380V(+10% ~15%) 50/60Hz(±2%)
Structural Model
Product Model
Rated Current Ie(A)
Applicable Motor Rated Power (KW)

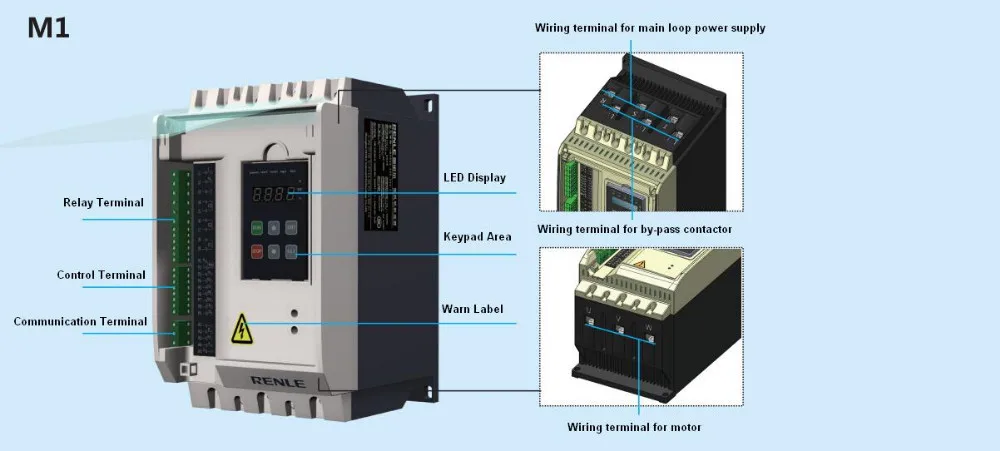

M1
SSD1-40-E/C
40
22
SSD1-54-E/C
54
30
SSD1-68-E/C
68
37
SSD1-80-E/C
80
45
SSD1-100-E/C
100
55
M2
SSD1-135-E/C
135
75
SSD1-160-E/C
160
90
SSD1-200-E/C
200
115
SSD1-250-E/C
250
132
SSD1-300-E/C
300
160
M3
SSD1-360-E/C
360
200
SSD1-500-E/C
500
250
SSD1-640-E/C
640
320
M4
SSD1-800-E/C
800
400
SSD1-1000-E/C
1000
500
SSD1-1200-E/C
1200
600
Product Details Show
Why Choose Us

About us

1, Our products are widely exported to many countries , including Russia, Ukraine, Kazakhstan, India, Pakistan, Vietnam, Indonesia, Thailand, UAE, Saudi-Arabia, Iran, Italy, Switzerland, Tanzania, Algeria etc…

Factory

2, Shanghai RENLE Science & Technology Co., Ltd, is located in the High & New Technology Industrial Park of national level in Jiading District, Shanghai, China.

Management

3, We've also has received CE, TUV, GOST, ISO9001 certificates and so on to convenience and easy business with our customers.

Product Processing
Product Packing
Main Products

Motor and system protection functions

1. Protection for three-phase input phase failure. It won’t start unless there is load with power supply from main loop and three phases.

Motor and system protection functions

2. Protection for overheat. Monitor the temperature. Frequent starts will lead to too high SCR’s temperature. (Over 80 °C)

Motor and system protection functions

3. Protection for overlong start time. It is not good for motor and soft starter if start time is too long. So the default limit for start time is 30s. And the user could set up this time between 10~300s in accordance with exact load.

Motor and system protection functions

4. Protection for big current belongs to timing limit. If the current is over 5~8 times (available for setup), it will cut off output within 20ms ~2s (available for setup).

Motor and system protection functions

5. Protection for inverse overload. There are 4 grade curves stall protection.

Motor and system protection functions

6. Light load alarm; trip protection, frequency mistake alarm.
