Specifications
We use the best raw material to make the pex al pex pipe, yet our price is still competitive , for pex piep , we are the best .We manufacture all size of pex-al-pex pipe ,pe pipes, pex-al-pert, pex-al-pe pipe ,pe-al-pe pipes, pert pipe and pex pipe of different colors, which will definitely meet your requirement for the appearance ,target market as well as usage.
To ensure the product quality and good price , we use the best raw material Yet with very competitive price.
Our price may not be the lowest ,but our quality is ensured by our years experience in this field and certificates like EN- ISO 9001:2000,RoHS. CE&EN-442 . I am sure we will have a win-win coorperation if you send a inquiry right now.
1) Under floor heating system in the domestic living room, bedroom, public bathroom, swimming pool, kindergarten, bead house
2) Higher temperature radiator, concentration heating system in the residential houses.
3) Cold and hot water application for buildings, pipeline portable water system.
4) Fluid conveyance pipe for chemical and oil industries or other pipes in the industrial use.
| Name | Size | IDmm | ODmm | Wall Thick | AL mm |
| Overlap Welding Pipes | |||||
| Cold Water Pipes or Gas | 1216 | 11.8 – 12.0 | 16.0 – 16.2 | 2.00 – 2.10 | 0.20 |
| 1418 | 13.8 – 14.0 | 18.0 – 18.2 | 2.00 – 2.10 | 0.20 | |
| PE-AL-PE | 1620 | 15.8 – 20.0 | 20.0 – 20.2 | 2.00 – 2.10 | 0.20 |
| 2025 | 19.8 – 25.0 | 25.0 – 25.2 | 2.50 – 2.60 | 0.25 | |
| 2026 | 20.8 – 26.0 | 26.0 – 26.2 | 2.50 – 2.60 | 0.25 | |
| 2632 | 25.8 – 32.0 | 32.0 – 32.2 | 3.00 – 3.10 | 0.30 | |
| Name | Size | IDmm | ODmm | Wall Thick | AL mm |
| Hot water pipes | 1216 | 11.8 – 12.0 | 16.0 – 16.2 | 2.00 – 2.10 | 0.20 |
| 1418 | 13.8 – 14.0 | 18.0 – 18.2 | 2.00 – 2.10 | 0.20 | |
| PE-AL-PEX | 1620 | 15.8 – 20.0 | 20.0 – 20.2 | 2.00 – 2.10 | 0.20 |
| 2025 | 19.8 – 25.0 | 25.0 – 25.2 | 2.50 – 2.60 | 0.25 | |
| 2026 | 20.8 – 26.0 | 26.0 – 26.2 | 2.50 – 2.60 | 0.25 | |
| 2632 | 25.8 – 32.0 | 32.0 – 32.2 | 3.00 – 3.10 | 0.30 | |
| Name | Size | IDmm | ODmm | Wall Thick | AL mm |
| Hot Water Pipes | 1216 | 11.8 – 12.0 | 16.0 – 16.2 | 2.00 – 2.10 | 0.20 |
| 1418 | 13.8 – 14.0 | 18.0 – 18.2 | 2.00 – 2.10 | 0.20 | |
| PEX-AL-PEX | 1620 | 15.8 – 20.0 | 20.0 – 20.2 | 2.00 – 2.10 | 0.20 |
| 2025 | 19.8 – 25.0 | 25.0 – 25.2 | 2.50 – 2.60 | 0.25 | |
| 2026 | 20.8 – 26.0 | 26.0 – 26.2 | 2.50 – 2.60 | 0.25 | |
| 2632 | 25.8 – 32.0 | 32.0 – 32.2 | 3.00 – 3.10 | 0.30 | |
| Name | Size | IDmm | ODmm | Wall Thick | AL mm |
| Butt-Welding Pipes | |||||
| Cold Water Pipes or Gas | 1216 | 11.8 – 12.0 | 16.0 – 16.2 | 2.00 – 2.10 | 0.25 |
| 1418 | 13.8 – 14.0 | 18.0 – 18.2 | 2.00 – 2.10 | 0.25 | |
| PE-AL-PE | 1620 | 15.8 – 20.0 | 20.0 – 20.2 | 2.00 – 2.10 | 0.25 |
| 2025 | 19.8 – 25.0 | 25.0 – 25.2 | 2.50 – 2.60 | 0.30 | |
| 2026 | 20.8 – 26.0 | 26.0 – 26.2 | 2.50 – 2.60 | 0.30 | |
| 2632 | 25.8 – 32.0 | 32.0 – 32.2 | 3.00 – 3.10 | 0.30 | |
| Name | Size | IDmm | ODmm | Wall Thick | AL mm |
| Hot Water Pipes | 1216 | 11.8 – 12.0 | 16.0 – 16.2 | 2.00 – 2.10 | 0.25 |
| 1418 | 13.8 – 14.0 | 18.0 – 18.2 | 2.00 – 2.10 | 0.25 | |
| PE-AL-PEX | 1620 | 15.8 – 20.0 | 20.0 – 20.2 | 2.00 – 2.10 | 0.25 |
| 2025 | 19.8 – 25.0 | 25.0 – 25.2 | 2.50 – 2.60 | 0.30 | |
| 2026 | 20.8 – 26.0 | 26.0 – 26.2 | 2.50 – 2.60 | 0.30 | |
| 2632 | 25.8 – 32.0 | 32.0 – 32.2 | 3.00 – 3.10 | 0.30 | |
| Name | Size | IDmm | ODmm | Wall Thick | AL mm |
| Hot Water Pipes | 1216 | 11.8 – 12.0 | 16.0 – 16.2 | 2.00 – 2.10 | 0.25 |
| 1418 | 13.8 – 14.0 | 18.0 – 18.2 | 2.00 – 2.10 | 0.25 | |
| PEX-AL-PEX | 1620 | 15.8 – 20.0 | 20.0 – 20.2 | 2.00 – 2.10 | 0.25 |
| 2025 | 19.8 – 25.0 | 25.0 – 25.2 | 2.50 – 2.60 | 0.30 | |
| 2026 | 20.8 – 26.0 | 26.0 – 26.2 | 2.50 – 2.60 | 0.30 | |
| 2632 | 25.8 – 32.0 | 32.0 – 32.2 | 3.00 – 3.10 | 0.30 | |
1) Size :16mm ~32mm wall thickness:2.0mm~4.4mm
2) Temperature scope: -70~+95
3) Standard color: transparent,orange or as per customers requirement
4) CertificateISO 9001,ISO 14001,Chinese famous brand and national inspection-free products
5) Outer appearance: smoothness both inner and outer appearances, free of san pit, bubble,as well as other deformities, in addition, even color, pointed groove, surface indentation not being allowed.

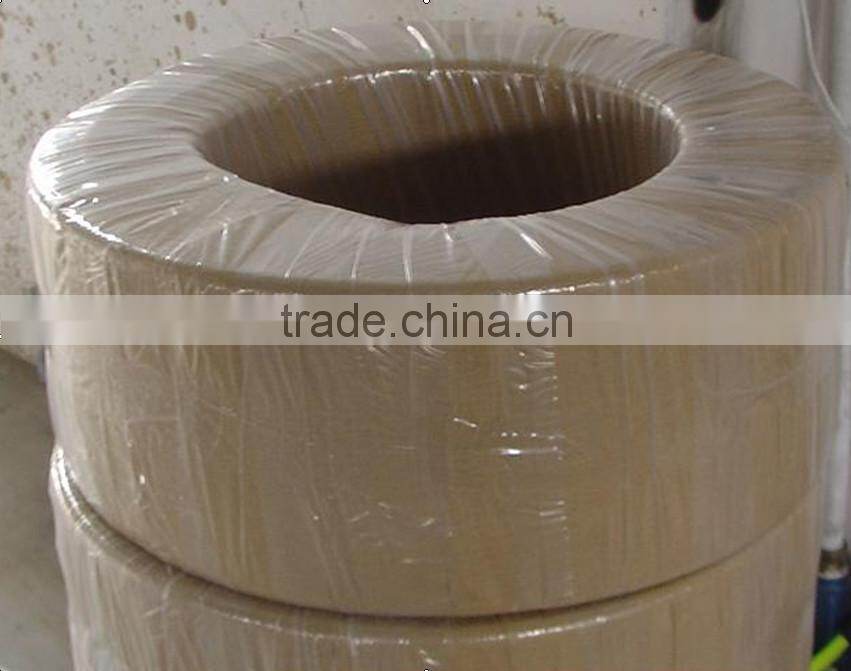

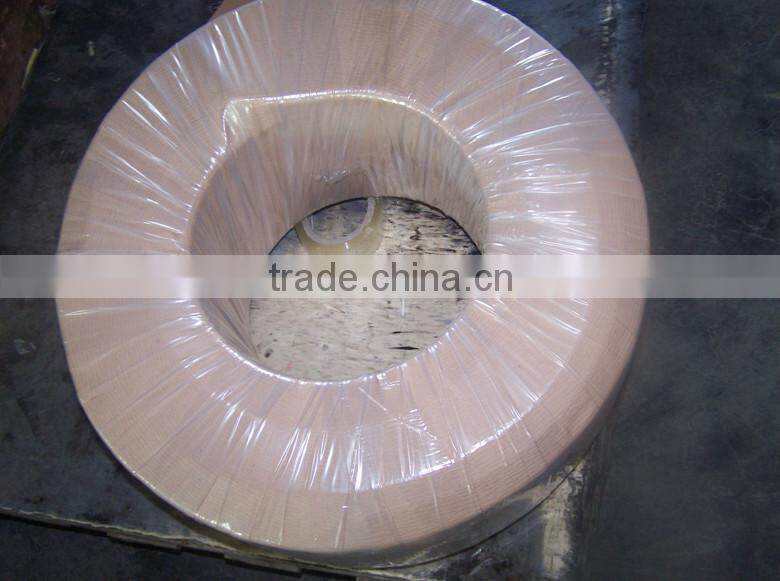

6) Package: 100~300 meters per coil in plastic bags or as per customers requirement
1) Excellent lower temperature resistance, applicable temperature scope: -70+95
2) Hardness and elasticity, higher inner pressure strength(Nominal stress:1.25MPa,burst pressure>4MPa, while 20)
3) In conformity with potable water hygienic standard, the pipe contains non-toxic components, not being rotten and breeding bacteria, it can be provided with the conveyance of potable water, purified water.
4) Higher chemical corrosion resistance and environmental stress cracking i.e. more kinds of chemical liquid can be conveyed.
5) Unprecedented advantages of pipe are being non-corrosive and non-incrustation, compared with common metal pipe.
6) With higher heat insulation and preservation properties, compared with metal pipe .
7) Having smoothness both inner and outer walls, the pipe have featured its smallest flow resistance. Attaining 30% of flow rate compared with zinc-plated steel pipe.
Technical data
Density |
≥0.94g/cm³ |
Longitudinal recovery ratio |
≤3% |
Cross linked level |
≥65% |
Softening point |
123°c |
Tensile strength |
≥17% |
Break elongation |
≥350% |
Hydrostatic Strength(45°c 24h ) |
No cracking, no leakage |
Heat conductivity |
0.35-0.46W/m*k |
Liner expansion coefficient |
0.2 mm/m*k |
we are a professional OEM manufacturer and supplier of brass products in China. We have more than 10 years of experience manufacturing brass fittings for different kind of piping systems, especially for screw and press fittings for PEX-AL-PEX (multilayer pipes), PEX pipes; we also produce brass valves, brass manifolds for underfloor heating, brass inserts for PPR fittings and many others.
Our factory is equipped with over 200 sets of machines & equipments including production machinery such as CNC Multi-Spindle Process Machines, CNC Machines, Torque-Controlled Assembly Equipments & Production Assembly Line, as well as testing devices such as Spectolab, Pressure Tester & Life Time Tester. Auto CAD and 3D solid simulating design system are introduced into the complete process throughout R&d and production.
500 employees work in our company, of whom about 80 are technicians, engineers and QC engineers, providing continuous and powerfull supports to our development & creation in technologies and quality assurance as well as improvement.
Strictly abiding by quality management system of ISO9001:2000,the company runs the whole managing progress of R&D, Material Input, PRP(product realization process), inspection & testing and consignment delivery service
All our products are exported to most parts of the world, such North and South America, Europe, Russian countries and Middle East. We promise to give our clients high quality products, reasonable prices and good services.
Sample can be free , and will be sent within 3 days after confirmations.
