36V lead acid /lithium battery charger 900W for electric tourist car

Specifications:

 Features:

    1.short-circuit protection,charger o/p current automatically when short-circuit.

    2.overload protection:charger o/p current limited automatically when overload.

    3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.

    4.3-stage charging mode: CC(constant current), CV(constant voltage) and float stage.

    5. Reliable, elegant,Small size, light,

    6.charging state:two LED display.

    7.all kinds of production has passed the CE certification.

    8.Efficiency: ≥88 %( full capacity)

Operate Condition:

    1.Temperature: -10~45 Degree

    2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)

    3.Life Expectancy: 50,000H at 25 Degree

Apply to:

   1. Electrical forklift

   2. Electrical motorcycle

   3. Electrical tourist-car

Detail show:

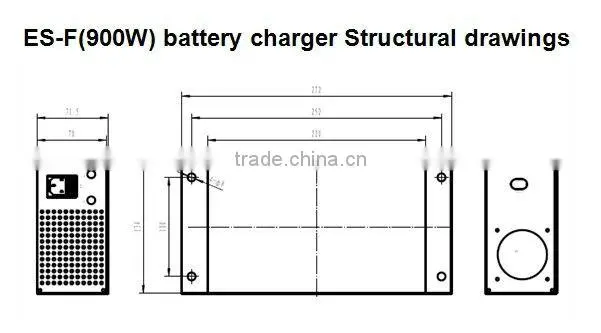

ES-F(900W) ( structural drawings)
