T8 Isolated Led Tube Driver/led Tube Driver 25w
US$ 1 - 2
MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Fontislight
Model Number:
FL-PN-DRT25W
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
25w Led Tube DriverUS$ 1 - 2MOQ: 100 Units -
Hot Sale Isolated Led Tube DriverUS$ 1 - 2MOQ: 100 Units
-
Led Tube Driver/isolated Led Tube Driver 25wUS$ 1 - 2MOQ: 100 Units
-
25w Isolated Led Tube DriverUS$ 1 - 2MOQ: 100 Units
-
Good Quality Competitive Price T8 Isolated DriverUS$ 1 - 2MOQ: 100 Units
Place of Origin
Guangdong, China
Brand Name
Fontislight
Model Number
FL-PN-DRT25W
Specifications
Isolated led tube driver 25W1. Size: L189xW17.6xH10mm
2. Power: 25W max
3. Input 85-265V AC, 50-60Hz
4. PF>0.96
T8 isolated led tube driver/led tube driver 25w

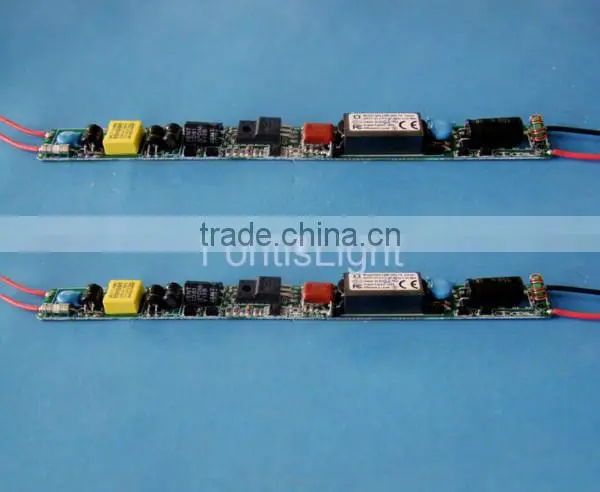

Isolated led tube driver 25W
Isolated constant current LED driver with primary side regulation design for T5/T8/T9/T10 LED tube lights.
It has the characteristics of high efficiency, high power factor and high precision output current.
Main features:
Input 85-265V AC, 50-60Hz
Output Voltage: DC 30-82V
Ouput Current: 230mA
Max Output Power: 25W
Conversion Efficiency ≥90%
Power Factor ≥0.96
Ripple and Noise: Max 2000MVp-p
Protection Function: Output open circuit/short circuit/overload/over voltage/over termperature
Ambient Temperature: -25~40°C
Relative Humidity: 20%~95%
Vibration: 1.0mm, 10-25Hz, 15 minutes per cycle for each axis (X, Y, Z)
Cooling: The power supply will operate with convection cooling
EMI Standards: this driver meets the radiated and conducted emission requirement for EN55013
MTBF: ≥50,000hours at 25°C
Weight: 34g/unit

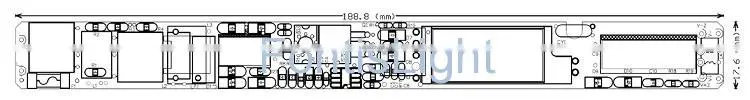

Dimension: L189xW17.6xH10mm
Advantage:
1) high efficiency
2) environmental protection
3) long lifetime
4) short circuit and open circuit protection
5) Universal AC input, meet all power demand in any area around the world
6) Attain high-efficiency,stable and low harmonic property by adopting the main scheme of IC controlled by high reliability PFC
led tube driver 25w
led tube driver 25w
