Specifications
1.Dispaly Stand For Mobile Phone2.With alarm funtion
3.Aluminum alloy body
4.Size/Color:customed
5.CE,FC

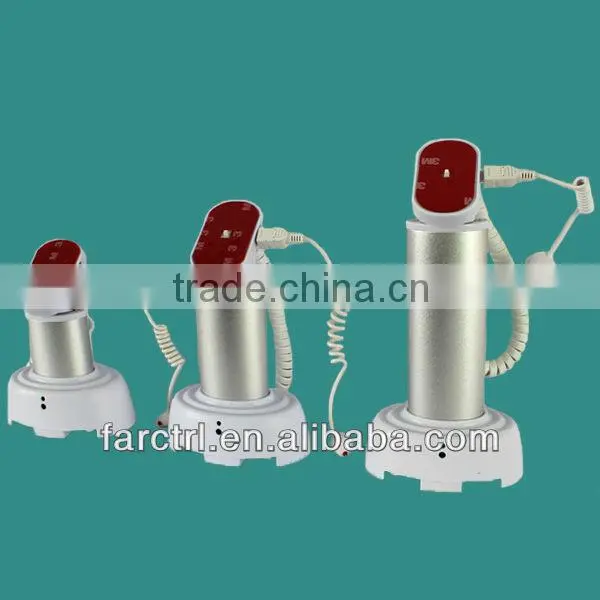

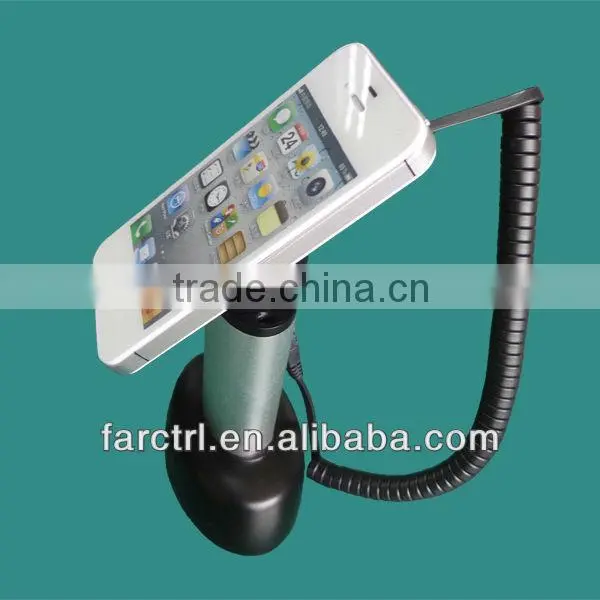

Dispaly Stand For Mobile Phone
Features
1. Quick Reaction speed, pull or cut the USB cable, the Alarm warning.
2. Once the alarm has been triggered, restitution cannot disarm, the alarm must be reset by remote control “OFF” key to disarm (press remote control “OFF” key to relief). With high safety factor, it can protect customer’s property.
3. Built-in alarm horn, high-volume alarm on the bottom, can avoid destruction of the thief.
4. With Remote Control function, easy to use.
5. LED light display current status.
6. Wide range Application: retail chain store or exhibition center for Tablet PC, Camera, Smart Phone, GPS and other exhibits anti-theft and reusable .
Product Description
1. This elegant Security alarm holder for mobile , high practical, the use of UV surface treatment technology, which greatly promoted the launching of experiential marketing have to promote improvement in performance and product security

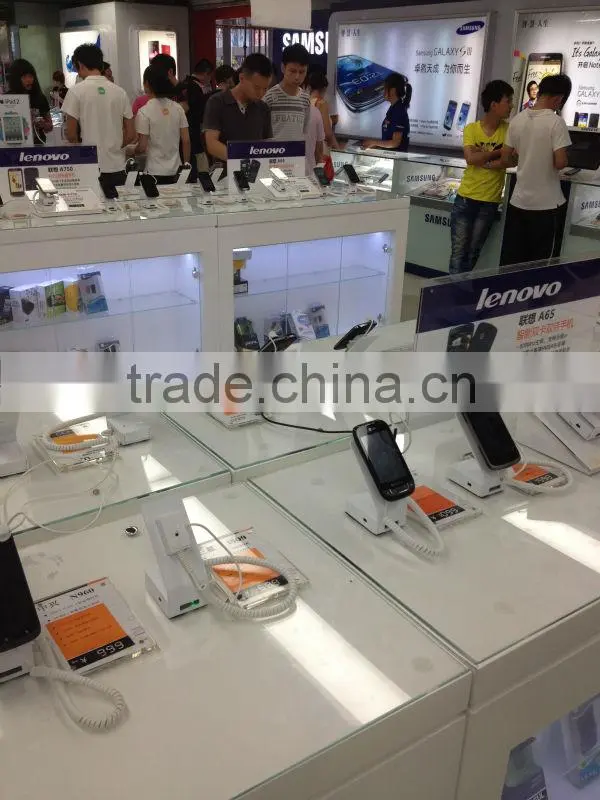

2. Now widely used in various types of mobile phones, cameras, MP4 and other Consumer Electronics products for Mobile phone supermarkets, used for loss prevention security of telecom mobile Unicom, digital city, digital camera counters, GPS counters, MP4 counters, appliances hypermarkets, supermarkets and various small electronic products exhibition of digital
3. It’s Upgrade the marketing model from the traditional "tell-style" to the innovative "experiential", consumers select products and convenient services from the staff "recommended style" which facilitate the consumers while improving business performance.
4. Security alarm holder for mobile are composed of the host alarm system, multi-touch alarm sensor, 3M adhesive and other components. Simple installation methods, such as installation of alarm installed in display racks or display case, Sensor (alarm probe) adhere to the product
5.Customers can easily take down from the shelf displays, free to operate and feel the exhibits’ features ,function and appearance, If somebody want to take away the display, the alarm will sound a continuous alarm immediately, the alarm will not stopped until the Manager to reset processing
Basic Specification
Operating Voltage |
5V DC |
Horn Alarm Output |
≤120 db at 1 ft |
Stand-by Current Consumption |
≤3.70mA |
Quiescent Current Consumption |
≤3.40mA |
Activation Current Consumption |
≤220mA |
Metal Display Frame Color |
Black/White |
Battery |
Lithium-ion battery |
the charging function |
You can charge the 5V digital products output. |
Set up defences: |
Remote control |
Function
1.A disconnect alarm function: contacts separated alarm, disconnect alarm, USB jack unplug alarm.
2.Fortification solution and Defense: auto fortification; solution of anti-manually or remote control anti-solution.
3. Remote control: Infrared remote control ON (Active) / OFF
break circuit resistance |
short circuit resistacne |
other circuit-replacing resistacne |
cut the resistance |
prying and cutting spring wire |
remove the sensor |
pull out connector |
Operating Step
1. Power ON/OFF Slide Switch: Please turn power ON before setting (on the bottom).
2. Tear off 3M stickers on the bottom, and stick MX-33P metal bottom on display desk.
3. Tear off 3M sticker (on Magnetic sensor) and stick on rear side Smart Phone.
4. Tear off 3M sticker on the Demo-Alert (small detecting sensor), and stick on Smart Phone (front or rear side surface).
5.Set up Demo-Alert in Active position: press ON button on Remote Control; you'll hear a beep sound and Red LED blinking (one time), the MX-33P in Active position.
6. Demo-Alert Sensor: 3 detecting sensors and phone jack connector are detect point, either one of detecting sensor Slip or phone jack disconnecting (active position), Alarm warning immediately and Blue LED blinking until alarm relief.
7. Relief alarm: press Remote Control OFF button to relief alarm warning and hear horn alarm.
8. Active Display Charge: the MX-33P provide charge function, when Smart Phone battery low, you can plug charge cable between Smart Phone (Micro USB port) and Magnetic connector (a black hole at left side Magnetic connector), or direct charge from Adaptor to Smart Phone.
9. Low Power Indicator: when green LED light blinking, please plug USB port into to AC adaptor, mini USB plug into left side Demo-Alert metal base, then AC adaptor plug into Outlet (please avoid battery dried-up).
10. Working Period (in Active): 2 weeks (full charge).
11. Charge Time: 5 hours.
12. Low Power: Green LED blinking until power dried-up or charge.
13. Charging: Red LED turns ON.
14. Full Charge: Green LED turn ON.
15. Alarm: Red LED Blinking.
16. In Active (when you set up Alarm): Blue LED Blinking.
17. Remote Control: 5 units with one remote control.
Package Included
1. series (Remote Control Demo-Alert).
2. Universal USB Adaptor 5Vdc / 500mA.
3. Infrared Remote Control.
4. USB to mini USB Cable.
5. Magnetic Detecting Sensor Cable.
6. Micro USB to 3.5Φcharge cable.
