120W 48v Smart E Bike Battery Charger
*Description
| No. | spec | Constant voltage | Constant current | Transition/ | Weight | Size | |||
| Cut-off | |||||||||
| Lead-acid | Li-Mn | Lifepo4 | Max (A) | Lead-acid | Li | (kg) | (mm) | ||

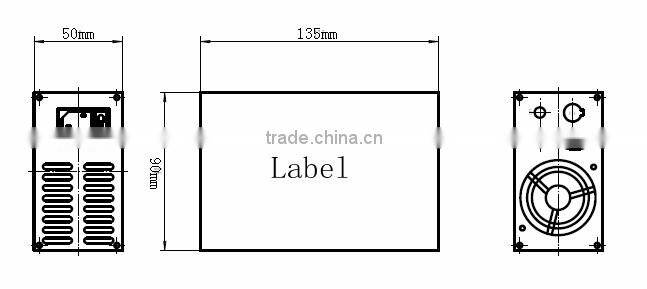

| 1 | 12V | 14.7V | 16.8V | 14.6V | 6 | 1.2 | 0.3 | 0.8 | 135*90*50 |
| 2 | 24V | 29.4V | 29.4V | 29.2V | 4 | 0.8 | 0.2 | ||
| 3 | 36V | 44.1V | 42.0V | 43.8V | 2.5 | 0.5 | 0.125 | ||
| 4 | 48V | 58.8V | 54.6V | 58.4V | 2 | 0.4 | 1.5 | ||
| Features | 1 | Full automatic transition of CC, CV and Float/cut-off | |||||||
| 2 | Precise limit of voltage & current, guarantee fully charged and avoid over charge | ||||||||
| 3 | Protections: over current, over voltage, short circuit and reverse polarity | ||||||||
| 4 | High Efficiency: 95%~98%, PFC: 0.96, eco-friendly | ||||||||
| 5 | Two LED indicators, Aluminium, elegant and reliable | ||||||||
| 6 | CE & ROHS Certified, Safety and High Quality | ||||||||
| Note: Cut-off point for Li battery is 5% of CC, and it can be set between 5%-10%. | |||||||||
| All functions can be customized production(e.g.BMS communication,predict charge,Recharged regularly,Active power factor correction PFC) | |||||||||

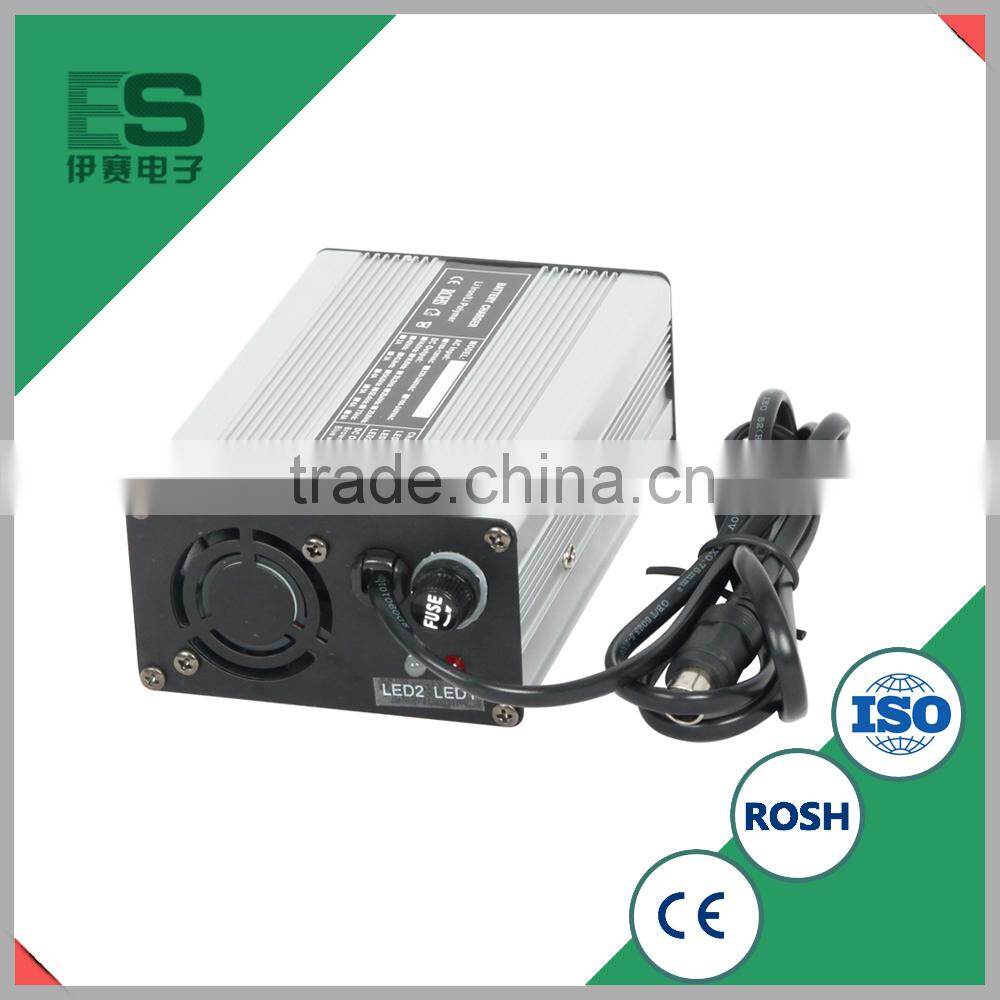

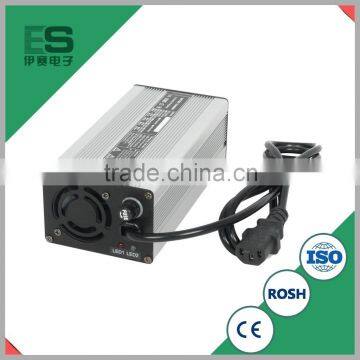

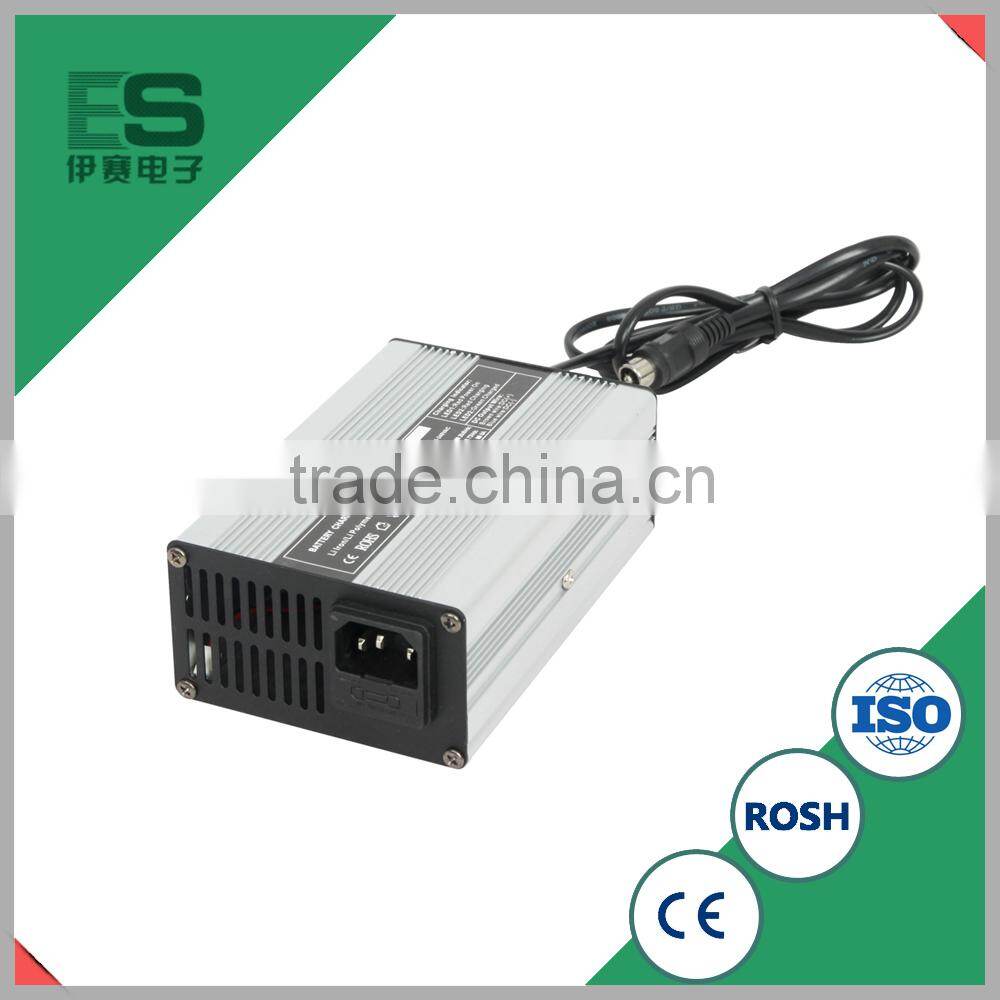

Product Pictures

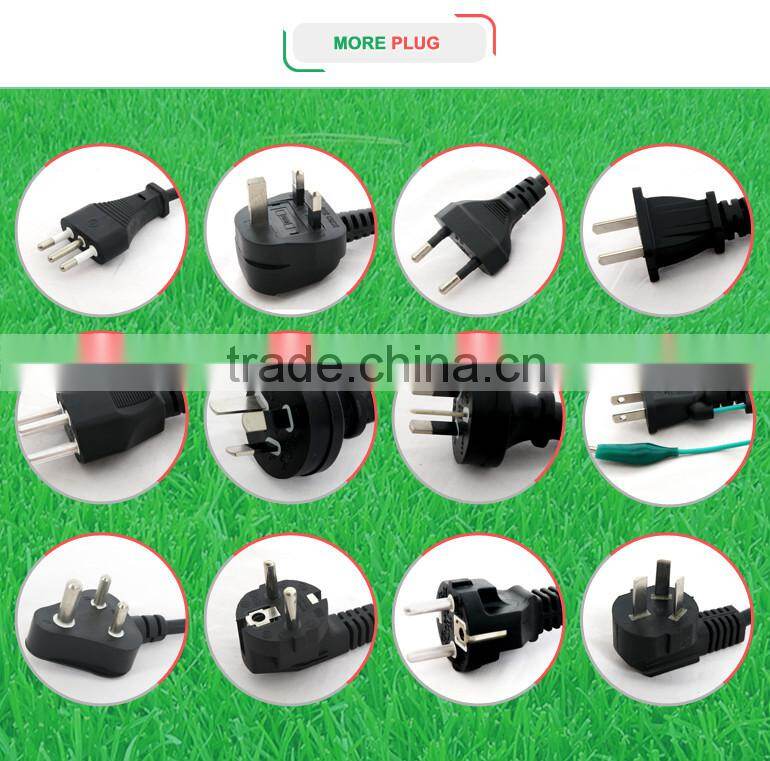

The charger plugs
Output connectors
Specification
*Temperature: -10~45 Degree
*Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)
*Life Expectancy: 15,000H at 25 Degree
*Apply to Electrical scooter, Electrical motorcycle ,Electrical bicycle
In Use
Advantages
* We are specialized in manufacturing lithium battery chargers which can be largely applied for E-motorcycles, E-sweepers and E-forklifts.
*Our company has a group of engineers who have been in this field for more than 40 years both in production and management, and a group of young and knowledgeable people with doctor degrees who are skilled in high-tech and innovative thinking.
*our company has supplied high quality, high stable and reliable chargers and speed-controllers for North America, Europe and Asia, such as the United States, Canada, Mexico, Germany, Italy, Sweden, Portugal, Japan, South Korea and Taiwan area.
*All of our products have passed CE certification.
About us
As a7 years leading battery charger factory.we can produce battery
charger based on your requirements!More information about our
charger.**Please click here without hesitation!**
