Smartphone Baby Monitor Real-Time IP Camera Monitoring System

Smartphone Baby Monitor Real-Time IP Camera Monitoring System thumbnail-1
Smartphone Baby Monitor Real-Time IP Camera Monitoring System thumbnail-2
Smartphone Baby Monitor Real-Time IP Camera Monitoring System thumbnail-3
Smartphone Baby Monitor Real-Time IP Camera Monitoring System photo-1
Smartphone Baby Monitor Real-Time IP Camera Monitoring System photo-2
Smartphone Baby Monitor Real-Time IP Camera Monitoring System photo-3
US$ 45 - 55 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Farctrl
Model Number:
YK200--Real-Time IP Camera Monitoring System
Contact Supplier Request Quote Chat Now
Shenzhen Farctrl Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Farctrl
Model Number YK200--Real-Time IP Camera Monitoring System
Type IP Camera
Style Dome Camera
Sensor CMOS
Technology Pan / Tilt / Zoom
Special Features Other, Linkage Alarm

                 Night Vision Internet Surveillance IP Video Camera

1. Real-Time IP Camera Monitoring System Parameter:

Model

YK200-- Real-Time IP Camera Monitoring System

Video Compression

Operation System

H.264 Baseline profile

Video

Image Sensor

1.0MP HD CMOS Sensor

Core Chipset

Hi3518E Chipset

Resolution

720P HD images, resolution up to 1280x720,1.0MP

Resolution Variable

720P(1280 x 720),VGA(640 x 360), QVGA(320 x 180)

Frame Rate

1~30fps

Min. Illumination

Color: 1.5 Lux; W/B: 0 Lux with IR LED ON

IR Distance

Dual IR cut filter with auto switch,2pcs high-power ceramic IR LEDs, night vision at 5 meters

S/N Ratio

≥38dB

CMOS Features

Support AWB,AGC,BLC

Lens/Visual Angel

3.6mm

System Feature

Security

Account, password two level user authentication

Adaptive dynamic IP domain name system(Free)

No need domain name, support dynamic IP, no application of “peanut shells”, completely solve the problem of frequently dropped calls, connection with high speed

Mobile phone monitor

Support megapixel HD mobile phone monitor, dedicated IPHONE software, Android software(Software version required IOS4.3,Android 2.3 and above)

On-board storage

Support external 128GB TF card,24 hours recording,More than 32GB need to be formatted as FAT32

Plug and Play

Adopting advanced Cloud-link P2P (Plug and play) technology, network penetration up to 99%, applicable to all kinds of complex networks, installation takes only three steps: 1. Connecting power supply and network, 2. Installing mobile phone software; 3. Viewing CCTV images.

Server Clusters

P2P intelligent clusters of servers throughout the world, protect the pan-tilt home IP camera works stable and efficient

Audio

Audio Compression:

G.711A

Audio Input

1CH built-in 38dB microphone

Audio Output

Built-in speaker(8Ù1W)

PTZ Control

Pan & Tilt

Pan 355°,Tilt 120°

Video Management

Recording Mode

Manual recording, timing recording and alarm recording

Video Storage

TF Card (support Max.128G)

Network

Ethernet

10Base -T, /100Base-TX, RJ45 Connector

Protocols

TCP/IP,HTTP,TCP,UDP,SMTP, DHCP,DNS,DDNS,NTP,UPnP,P2P etc

Wireless

WiFi 802.11b/g/n wireless network

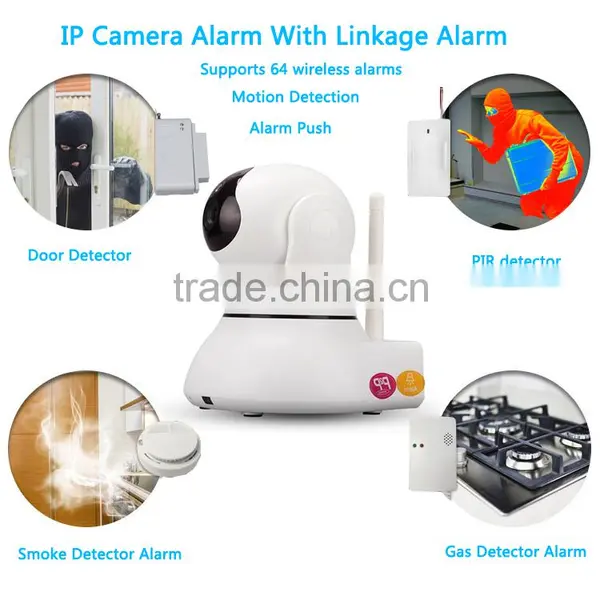

Alarm

Alarm Input

Learning wireless sensor alarm input

Motion Detection

Support

Alarm Detection

Max. 64ch wireless alarm sensor, support one key defense setting and delete

Alarm Action 1

Speaker alarm and call 5 different mobile phones

Alarm Action 2

Capture photos and send by E-mail

System Requirement

System Configuration

 Software version IOS4.3,Android 2.3 and above

General

Material

Cartoon robot/engineering plastics

Working Environment

Indoor

Power Supply

DC5V 2A

Working Temperature

-10~50 °C

Working Humidity

95% RH

Dimensions

104x102x117mm (L x W x H)

Weight

N.W:300g/pcs;G.W:740g/pcs;8.8kg/1 CTN; 10pcs/1CTN

Package Dimensions

1pcs:215mm x 150mm x 115mm(L×W×H)

1CTN:500mm x 390mm x 255mm(L×W×H)

Standard Accessories

Power adaptor, Bracket and Operation guide

Accessories Optional

Wireless door contact and Controller

Installation Method



Mounted on bracket or Flat type



2. Real-Time IP Camera Monitoring System Features:

(1)Motion Detection: When Monitoring the regional Moving the target , the video Surveillance will start to recording and taking a picture, at the same time push.

(2)Two—Way Video: This Camera Elaborate special treatment on calling (increase the volume, decrease the noisy ) ,can centralized collection from the voice of the target position,get more clear sound.

(3)TF-Card : Support 128G And Video Recording for 24 hours.

(4)PTZ Remote : This Camera Support a full range of PTZ Control, Pan 355 and Tilt 120.

(5)P2P (Play And Plug) : Directly across Multi-Router, Broadband is not limited (All Netcom , Telecom ,China Unicom) as long as there is network ,through P2P Service, You can easily achieve a variety of network penetration and simple operation.

(6)Multi-User: Support Android And IOS System and computer.

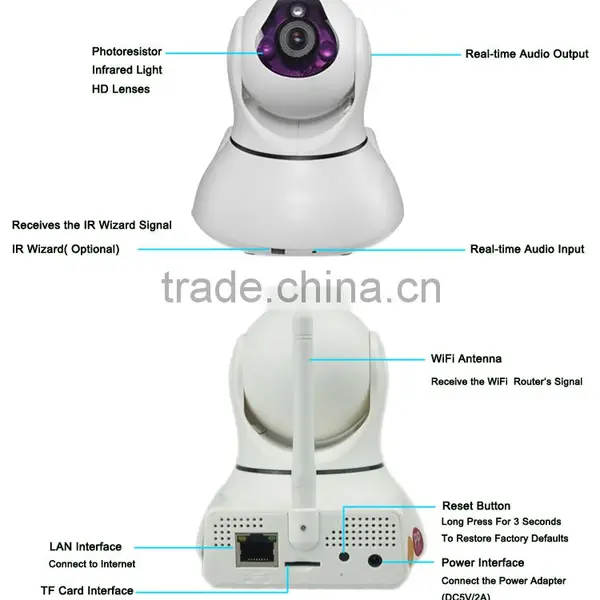

3. Real-Time IP Camera Monitoring System Pictures:

Smartphone Baby Monitor Real-Time IP Camera Monitoring SystemSmartphone Baby Monitor Real-Time IP Camera Monitoring SystemSmartphone Baby Monitor Real-Time IP Camera Monitoring System

4. Real-Time IP Camera Monitoring System Package:

 Smartphone Baby Monitor Real-Time IP Camera Monitoring System

5.What Other Type Camera ?

Smartphone Baby Monitor Real-Time IP Camera Monitoring System

6.Our Certification:

Smartphone Baby Monitor Real-Time IP Camera Monitoring System

7.About us :

Smartphone Baby Monitor Real-Time IP Camera Monitoring System

 Smartphone Baby Monitor Real-Time IP Camera Monitoring System

8.Contact Information:

Smartphone Baby Monitor Real-Time IP Camera Monitoring System
