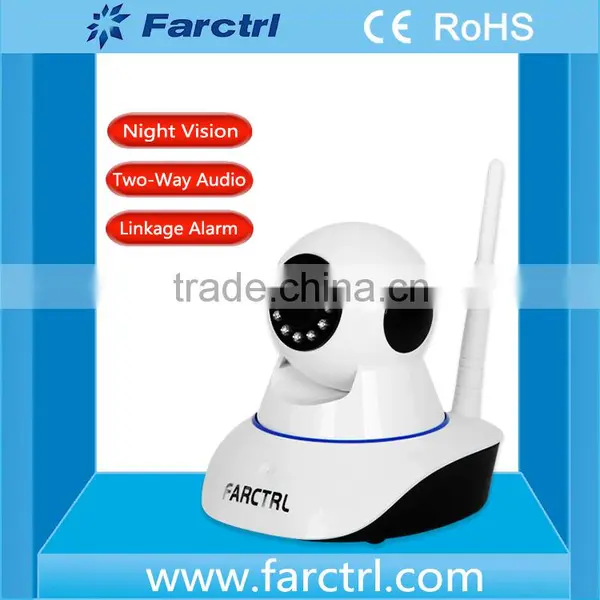

Hot Indoor Megapixel 720P Two Way Audio Wireless CCTV Camera
1. Two Way Audio Wireless CCTV Camera Features:
1.720P high-definition video technology, using 3.6mm camera megapixel lens, supports three kinds of network picture at the same time, HD: 1280*720, SD: 640*360, Smooth : 320*180 .
2. Two-way audio: Directly talk to your family or pet with phone or PC anytime and anywhere.
3. Peer-to-peer(P2P) enabled to allow easy setup and configuration. Brand New and More User Friendly UI, Control camera only by your finger sliding on screen. You can add camera by scan QR code on the bottom of IP camera, find it in you LAN or input camera ID and Password, Really Simple and Convenient!
4. Motion Detection: Support Four motion detection, send alarm pictures or video to email/FTP/MicroSD
5. IR Cut Filter, Help to produce accurate color images by blocking the transmission of the infrared light while passing the visible light
6. Pan/Tilt control (Pan:355°& Tilt:90°), remote viewing & record from anywhere anytime.
2. Two Way Audio Wireless CCTV Camera Parameter:
Model |
YK100-- Two Way Audio Wireless CCTV Camera |
|
Video Compression |
Operation System |
H.264 Baseline profile |
Video |
Image Sensor |
1.0MP HD CMOS Sensor |
Core Chipset |
Hi3518E Chipset |
|
Resolution |
720P HD images, resolution up to 1280x720,1.0MP |
|
Resolution Variable |
720P(1280 x 720),VGA(640 x 360), QVGA(320 x 180) |
|
Frame Rate |
1~30fps |
|
Min. Illumination |
Color: 1.5 Lux; W/B: 0 Lux with IR LED ON |
|
IR Distance |
Dual IR cut filter with auto switch,2pcs high-power ceramic IR LEDs, night vision at 5 meters |
|
S/N Ratio |
≥38dB |
|
CMOS Features |
Support AWB,AGC,BLC |
|
Lens/Visual Angel |
3.6mm |
|
System Feature |
Security |
Account, password two level user authentication |
Adaptive dynamic IP domain name system(Free) |
No need domain name, support dynamic IP, no application of “peanut shells”, completely solve the problem of frequently dropped calls, connection with high speed |
|
Mobile phone monitor |
Support megapixel HD mobile phone monitor, dedicated IPHONE software, Android software(Software version required IOS4.3,Android 2.3 and above) |
|
On-board storage |
Support external 64GB TF card,24 hours recording,More than 32GB need to be formatted as FAT32 |
|
Plug and Play |
Adopting advanced Cloud-link P2P (Plug and play) technology, network penetration up to 99%, applicable to all kinds of complex networks, installation takes only three steps: 1. Connecting power supply and network, 2. Installing mobile phone software; 3. Viewing CCTV images. |
|
Server Clusters |
P2P intelligent clusters of servers throughout the world, protect the pan-tilt home IP camera works stable and efficient |
|
Audio |
Audio Compression: |
G.711A |
Audio Input |
1CH built-in 38dB microphone |
|
Audio Output |
Built-in speaker(8Ù1W) |
|
PTZ Control |
Pan & Tilt |
Horizontal 355°,vertical 120° |
Video Management |
Recording Mode |
Manual recording, timing recording and alarm recording |
Video Storage |
TF Card (support Max.128G) |
|
Network |
Ethernet |
10Base -T, /100Base-TX, RJ45 Connector |
Protocols |
TCP/IP,HTTP,TCP,UDP,SMTP, DHCP,DNS,DDNS,NTP,UPnP,P2P etc |
|
Wireless |
WiFi 802.11b/g/n wireless network |
|
Alarm |
Alarm Input |
Learning wireless sensor alarm input |
Motion Detection |
Support |
|
Alarm Detection |
Max. 64ch wireless alarm sensor, support one key defense setting and delete |
|
Alarm Action 1 |
Speaker alarm and call 5 different mobile phones |
|
Alarm Action 2 |
Capture photos and send by E-mail |
|
System Requirement |
System Configuration |
Software version IOS4.3,Android 2.3 and above |
General |
Material |
Cartoon robot/engineering plastics |
Working Environment |
Indoor |
|
Power Supply |
DC5V 2A |
|
Working Temperature |
-10~50 °C |
|
Working Humidity |
95% RH |
|
Dimensions |
104x102x117mm (L x W x H) |
|
Weight |
N.W:300g/pcs;G.W:740g/pcs;8.8kg/1 CTN; 10pcs/1CTN |
|
Package Dimensions |
1pcs:215mm x 150mm x 115mm(L×W×H) 1CTN:500mm x 390mm x 255mm(L×W×H) |
|
Standard Accessories |
Power adaptor, Bracket and Operation guide |
|
Accessories Optional |
Wireless door contact and Controller |
|
|
Installation Method
|
Mounted on bracket or Flat type |
|
3. Two Way Audio Wireless CCTV Camera Pictures:
4.How to Operate It ?
1. Software Download
To better experience the convenience of this product, Please download the App before using this product.
(1) Scan that package box QR Code
(2) IOS Users can go to the App Store to search and down App : 2cu.
(3) Android users can visit the website () to download and install 2CU.
Note : Users need to register for an account when first time open “2CU” Software.
2. Set up a Account:
(1) Phone Register:
(2) Email Resgiter
As registration is successful, it will pop-up congratulations, Then the system automatically assigns an ID
NO And pls remember it, used as a login user name ,click on “ok” and input that password .
3.Establish a network (To connect LAN /wifi Network)
(1) To Connect LAN : After Power on the camera, Connect one end of the network cable to the camera network Interface and the other end connected to the router LAN Interface(Make Sure the router DHCP Function is on) ,after successfully connected the yellow lights on and the green light flashes.
(2)To Connect WIFI : Open 2CU>
4. Learn Code:
The camera can be used with a wireless Detector (Optional 433 Mhz support a total of 8 zones 64 wireless detectors) to learn of the code and build a wireless alarm system.
(1) Learn Code
Add the device to contact list after successful loin in the 2CU,Click device any black and will have Playback, Setting Or Edit buttons, then click setting >Defence Area, for examples to set up a door sensor as NO 1 Detector of the hall, choose the hall, Click NO 1 Button ,the learning code dialog box will be popped up ,then the door sensor will be trigger and APP Will remind that the learning successful. The NO 1 Button will turn to red color.
5.Clear Code:
Click the associated digital
5. Product Application:
(1 )Check on your kids
Keep up with your family, no matter where you are. This wireless ip camera can be used as a nanny camera to keep an eye on your little ones when you can't be there.
(2) Check on pets
As a pet camera, it is also a great way to keep an eye on your beloved pets when you're away.
(3) Watch home
See your home from anywhere anytime. This wireless ip camera offers a simple and affordable way to check on your home from anywhere anytime. Easy setup within a minute.
(4) Monitor the elderly
Watch over your elderly, disabled or ill loved ones when you're not around them. Make sure caregivers are doing their job.
6.Package Include:
1 Pcs * Camera Host
1 Pcs * 5V 2A Adapter
1 Pcs * Bracket
1 Pcs * Manual
7.FAQ :
1.Q: When adding a device, APP Did not prompt the discovery of a new equipment.
A: Please check if the cameras and cell phone are in the same LAN; Please check if the camera”s network indicator keeps on; if camera and cell phone are not in the same LAN, It is recommended to use the ID number manually add cameras.
2.Q : When Viewing live video, the device reminds the password is wrong
A:Please check if the remote access password which being set when add the device is right or not. If not, Please select edit to re-set it from the list of entries in the camera.
If you forget your remote access password of the camera, suggest you to press the reset button to restore the device to factory defaults(the factory default, the devices password is empty ,the first time add camera, need to create a new password. Otherwise, Remote access will not be accepted)
3.Q:”Device List ”Reminds the device is offline
Please check whether the network of the camera is normal and the network indicator of device is on;
Please check whether the router network is normal
4.Q:Remote Control Wizard can not control the camera normal
Please check if the remote wizard is connected with the cell phone’s headphone normally
Please adjust the direction of the remote control wizard, aimed at the camera IR Receiver .Some Phones Need to adjust the volume keys to maximum.
5.Q:Unable to search the video files during playback
Please check if the SD Card is damaged
Please check the retrieval time of the video file, the system time of the camera.
