New Style DC12V/24V Rainbow Touch RGB Controller
US$ 5 - 20
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Fontislight
Model Number:
FL-CW-R
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LED Strip Light Use IR Led Dimmer With 12 Buttons 12V/24V Led DimmerUS$ 3.5 - 4.5MOQ: 50 Pieces -
LED Street Light Use IR Led Dimmer With 12 Buttons 12V/24V Led DimmerUS$ 3.5 - 4.5MOQ: 50 Pieces
-
LED Downlight Use IR Led Dimmer With 12 Buttons 12V/24V Led DimmerUS$ 3.5 - 4.5MOQ: 50 Pieces
-
LED Wall Light Use 1channel IR Led Dimmer With 12 Buttons 12V/24V Led DimmerUS$ 3.5 - 4.5MOQ: 50 Pieces
-
IR 8A With 12 Buttons 12V/24V Led DimmerUS$ 3.5 - 4.5MOQ: 50 Pieces
Place of Origin
Guangdong, China
Brand Name
Fontislight
Model Number
FL-CW-R
Type
Remote Control
Max. Load Power
216W
Voltage
Other, 12 and 24V DC
Specifications

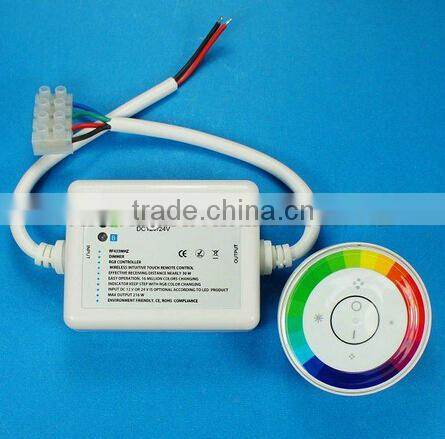

Rainbow Touch RGB ControllerModel : FL-CW-R
Size : 86.5x55.6x22.8mm
Power : 216W
Rainbow Touch RGB Controller
Rainbow Touch RGB Controller
Technical parameters:
- Working temperature: -20 to 60°C
- Supply voltage: 12 and 24V DC (optional) (for orders specify voltage)
- Output: 3 channels
- Connecting mode: common anode
- Transmission/receiving frequency: 433.92MHz
- External dimensions (L x W x H): 86.5 x 55.6 x 22.8mm
- Packing size (L x W x H): 88 x 88 x 156mm
- Net weight: 170g
- Gross weight: 215g
- Output current: <6A (each channel)
- Output power: <216W
-
Presentation mode:Hopping mode: under gradual change mode condition
- Gradual change model
- Touch on button again under monochrome mode condition, RGB strip will be changed into gradual
- change mode
-
Increasing color button will speed up the color change, decreasing color button will slowdown
- Touch on button
- RGB strip will be changed into hopping mode
- Increasing color button will speed up the hopping, decreasing color button will slowdown
- Under gradual change or hopping mode, touching on switch will change one to the other
- Close the RGB strip and restart It if you want to enter monochrome mode
- Pay attention: the change of above two presentation mode need 4 seconds
- Input voltage of remote control must be the same as RGB strips
- Match the color of output wiring when connecting
- When the color doesn't match, for example, it displays blue when touch green, or displays
- green
- When touching blue, please check whether the wiring is correct, in this case, exchange each other
