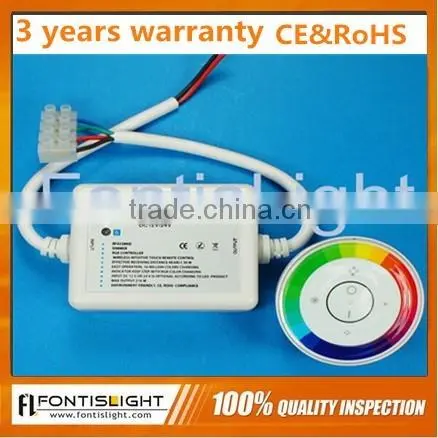

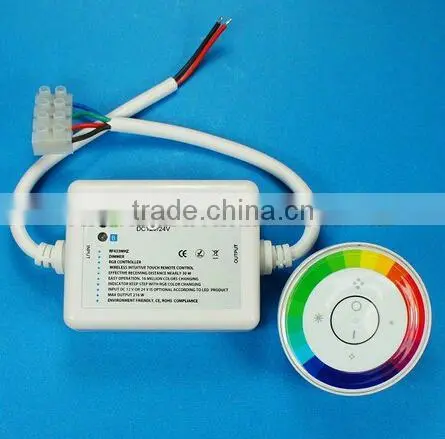

Rainbow Touch RGB Controller for LED Strip Light

Name: Rainbow Touch RGB Controller for LED Strip Light
Brand: Fontislight
SKU: 100256009

US$ 5 - 20 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Fontislight

Model Number:

FL-CW-R

Shenzhen Fontislight Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Fontislight

Model Number FL-CW-R

Type Remote Control

Max. Load Power 216W

Specifications

Rainbow Touch RGB Controller
Model : FL-CW-R
Size : 86.5x55.6x22.8mm
Power : 216W
Rainbow Touch RGB Controller

Rainbow Touch RGB Controller

Technical parameters:

Working temperature: -20 to 60°C
Supply voltage: 12 and 24V DC (optional) (for orders specify voltage)
Output: 3 channels
Connecting mode: common anode
Transmission/receiving frequency: 433.92MHz
External dimensions (L x W x H): 86.5 x 55.6 x 22.8mm
Packing size (L x W x H): 88 x 88 x 156mm
Net weight: 170g
Gross weight: 215g
Output current: <6A (each channel)
Output power: <216W
Presentation mode:Hopping mode: under gradual change mode condition
Gradual change model
Touch on button again under monochrome mode condition, RGB strip will be changed into gradual
change mode
Increasing color button will speed up the color change, decreasing color button will slowdown
- Touch on button
- RGB strip will be changed into hopping mode
- Increasing color button will speed up the hopping, decreasing color button will slowdown
- Under gradual change or hopping mode, touching on switch will change one to the other
- Close the RGB strip and restart It if you want to enter monochrome mode
- Pay attention: the change of above two presentation mode need 4 seconds
- Input voltage of remote control must be the same as RGB strips
- Match the color of output wiring when connecting
- When the color doesn't match, for example, it displays blue when touch green, or displays
- green
- When touching blue, please check whether the wiring is correct, in this case, exchange each other
