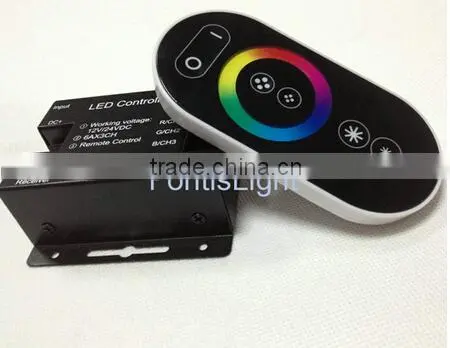

Amazing Design Wireless Touch RGB Controller/ RGB Led Controller

Name: Amazing Design Wireless Touch RGB Controller/ RGB Led Controller
Brand: Fontislight
SKU: 100255393
Availability: InStock

US$ 5 - 10 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Fontislight

Model Number:

FL-CW-RB

Shenzhen Fontislight Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Fontislight

Model Number FL-CW-RB

Type Remote Control

Voltage Other, DC 5V/12V/24V

Max. Load Power 216W

Specifications

Model : FL-CW-RB
Size : 83.5*78.6*33mm
Power : 216W
Wireless Touch Controller for RGB system 12W, 6A of each channel

Amazing design Wireless Touch RGB Controller/ RGB Led Controller

Model	FL-CW-RB
Power	<216W
Current	Each channel max 6A
Working Voltage	DC 5V/12V/24V
Connecting mode	common anode
Transmission/receiving frequency	433.92MHz
Net weight	227g
Gross weight	379g
Packing size	(L x W x H): 200 x 135 x 45mm
Working temperature	-20 to 60℃

Presentation mode:

Gradual change model
Touch on button again under monochrome mode condition, RGB strip will be changed into gradual
change mode
Increasing color button will speed up the color change, decreasing color button will slowdow
Hopping mode: under gradual change mode condition

Touch on button

RGB strip will be changed into hopping mode

Increasing color button will speed up the hopping, decreasing color button will slowdown

Under gradual change or hopping mode, touching on switch will change one to the other

Close the RGB strip and restart It if you want to enter monochrome mode

Pay attention: the change of above two presentation mode need 4 seconds

Input voltage of remote control must be the same as RGB strips

Match the color of output wiring when connecting

When the color doesn't match, for example, it displays blue when touch green, or displaysgreen

When touching blue, please check whether the wiring is correct, in this case, exchange each other
