Home > Lights & Lighting > Lighting Fixtures > Dimmer > Led Controllers/ Remote Led Controller/controller for Rgb Ribbon/fulllight Led Controller

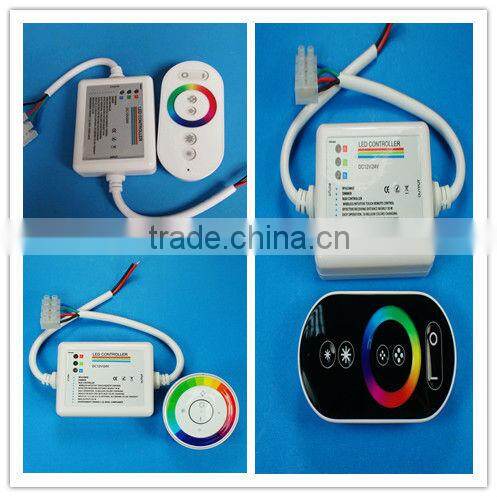

Led Controllers/ Remote Led Controller/controller for Rgb Ribbon/fulllight Led Controller
US$ 1 - 2
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Fontislihgt
Model Number:
FL-CW-R
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Rgb Led Controller/ 216w RGB Controller/rgb Led Controller ProgrammableUS$ 1 - 2MOQ: 50 Pieces -
Wifi Rgb Controller/ Led Controller Wifi/ Rgb Led ControllersUS$ 1 - 2MOQ: 50 Pieces
-
Wireless Touch RGB Controller/ RGB Led ControllerUS$ 5 - 10MOQ: 100 Pieces
-
5V/12V/24V Wireless Touch RGB LED Controller/ Wireless Led RGB Controller With Romote Controller/led Rgb ControllerUS$ 5 - 10MOQ: 100 Pieces
-
Rainbow Touch RGB ControllerUS$ 1 - 2MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
Fontislihgt
Model Number
FL-CW-R
Type
Remote Control
Max. Load Power
216W
Voltage
Other, DC 12V---24V
Specifications
Model : FL-CW-RSize : 86.5x55.6x22.8mm
Power : 216W
Supply voltage: 12 and 24V DC (optional) (for orders specify voltage)
RGB Rainbow Touch Controller/ RGB Controller
Model: FL-W-R
Working Voltage: 12v---24v
- Technical parameters
- Working temperature: -20 to 60°C
- Supply voltage: 12 and 24V DC (optional) (for orders specify voltage)
- Output: 3 channels
- Connecting mode: common anode
- Transmission/receiving frequency: 433.92MHz
- External dimensions (L x W x H): 86.5 x 55.6 x 22.8mm
- Packing size (L x W x H): 88 x 88 x 156mm
- Net weight: 170g
- Gross weight: 215g
- Output current: <6A (each channel)
- Output power: <216W
-
Presentation mode:
- Gradual change model
- Touch on button again under monochrome mode condition, RGB strip will be changed into gradual
- change mode
- Increasing color button will speed up the color change, decreasing color button will slowdown
- Hopping mode: under gradual change mode condition
- Touch on button
- RGB strip will be changed into hopping mode
- Increasing color button will speed up the hopping, decreasing color button will slowdown
- Under gradual change or hopping mode, touching on switch will change one to the other
- Close the RGB strip and restart It if you want to enter monochrome mode
- Pay attention: the change of above two presentation mode need 4 seconds
- Input voltage of remote control must be the same as RGB strips
- Match the color of output wiring when connecting
- When the color doesn't match, for example, it displays blue when touch green, or displays
- green
- When touching blue, please check whether the wiring is correct, in this case, exchange each other
