2015 Good quality Dimmer /LED Touch Dimmers

FOB Price

USD $2 - $3 / Piece

100 Pieces(Min.Order)

Supply Ability 2000 Unit / Units per Month
Port Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Fontislight	Model Number:	Touch led Driver
Type:	Other, Remote Control, Wireless Dimmer	Max. Load Power:	96W, 96W	Voltage:	Other, 5V/12V/24V

Product Description

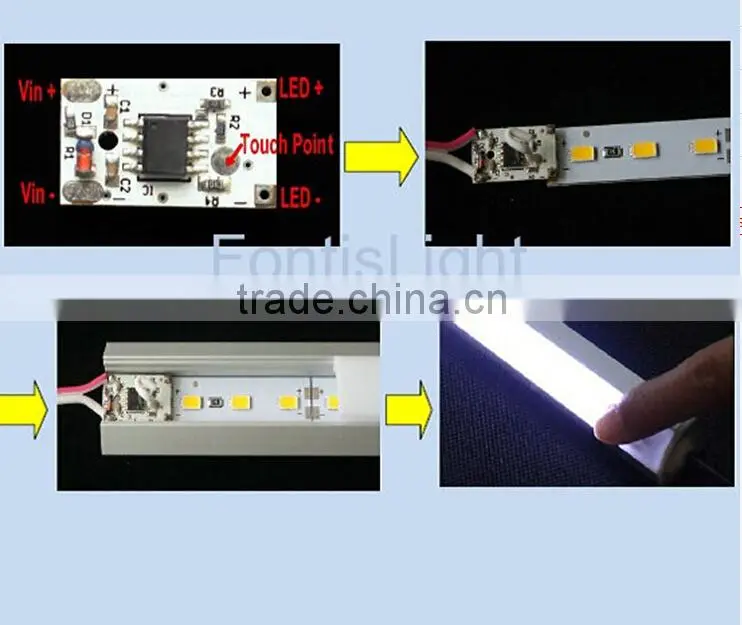

Touch Dimmable led Driver Features:

1 . Mini size: L18.5mm x W11mm x H5mm

2. INPUT VOLTAGE:DC 5-24V

3. MAX OUTPUT VOLTAGE : DC 5-24V

4. MAX Output CURRENT: 4A

5. Low Standby Current Consumption:

a. In 12V: 6mA b. In 24V: 12mA

6. Touch signal can penetrate different medium (such as glass, acrylic, plastic, ceramic), safety to use

7. Wide range Stepless dimming

8. With memory of dimming

9. low EMI

10. Used Power MOSFET 24 AMPERES, 60 VOLTS, RDS(on) = =0.036 (Typ)

Applications:

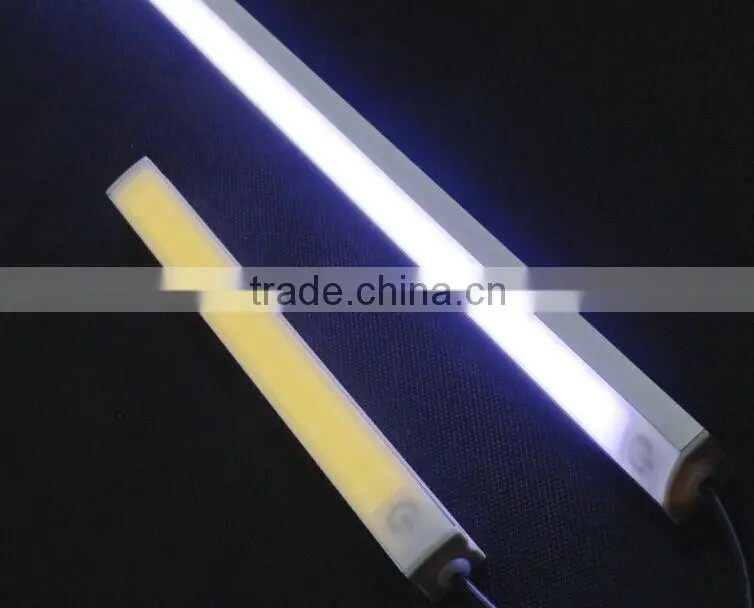

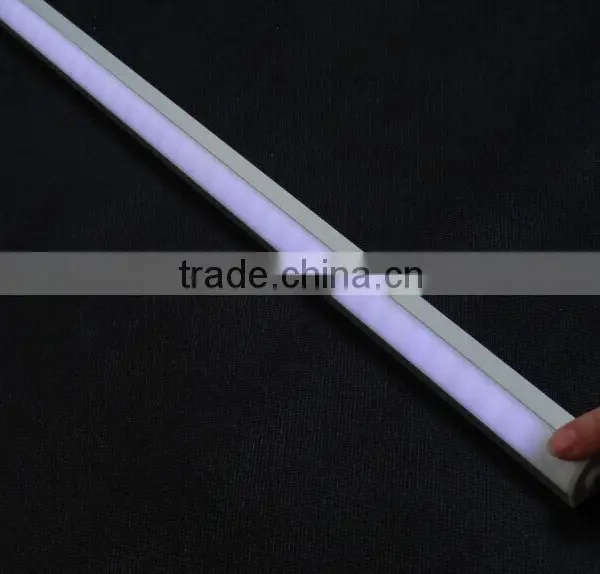

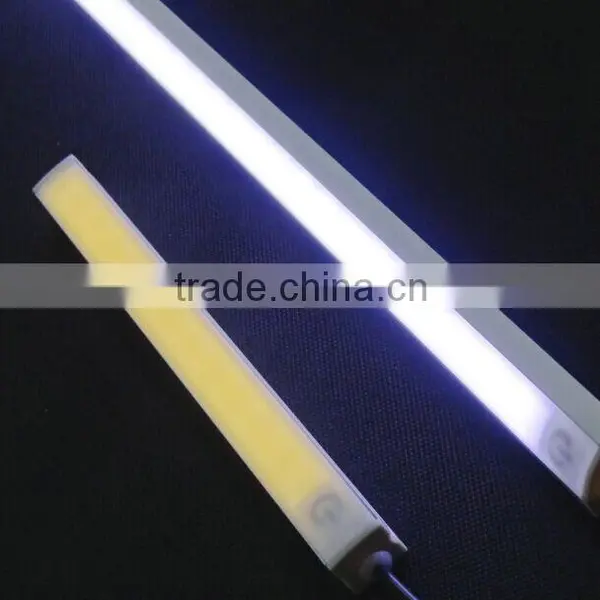

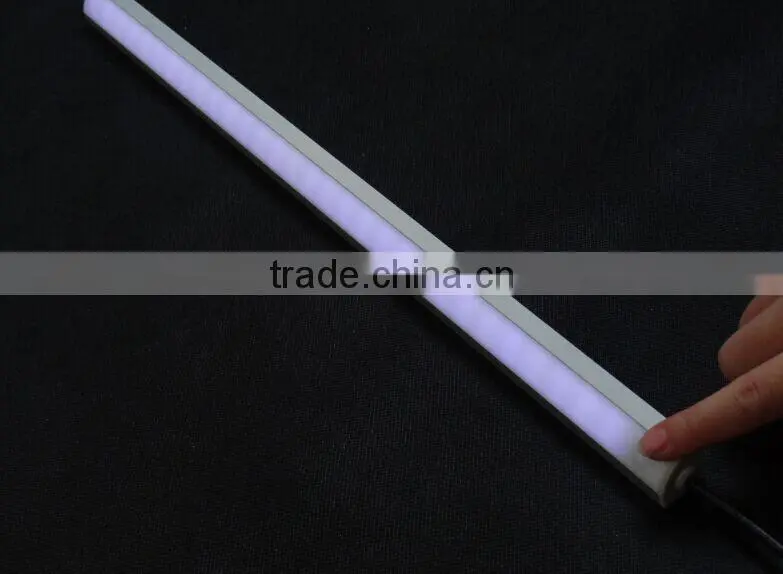

Applied to Desk lamps , LED lights or crafts

Control Mode:

Initial supply, the light is Off.

1) Click touch (time<550ms)= ON/OFF Switch

First Click touch, Light On

Second Click touch, Light Off

Initial brightness is Maximum brightness.

2) Press touch (time>550ms) = adjustable of brightness (increasing/decreasing brightness)

First press, brightness is increasing; Release, brightness remains same level (if pressing time>3S, brightness would reach to its Max value and keep this intensity)

Second press, brightness is decreasing; release, brightness remains same level (if pressing time>3S, brightness would reach to its Min value and keep this intensity)

3) Click and Press could be used in any time, their functions won’t be interference or restrictions

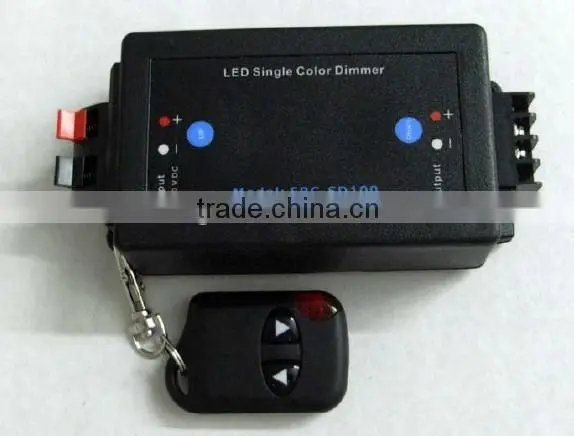

Other dimmer :
