Specifications

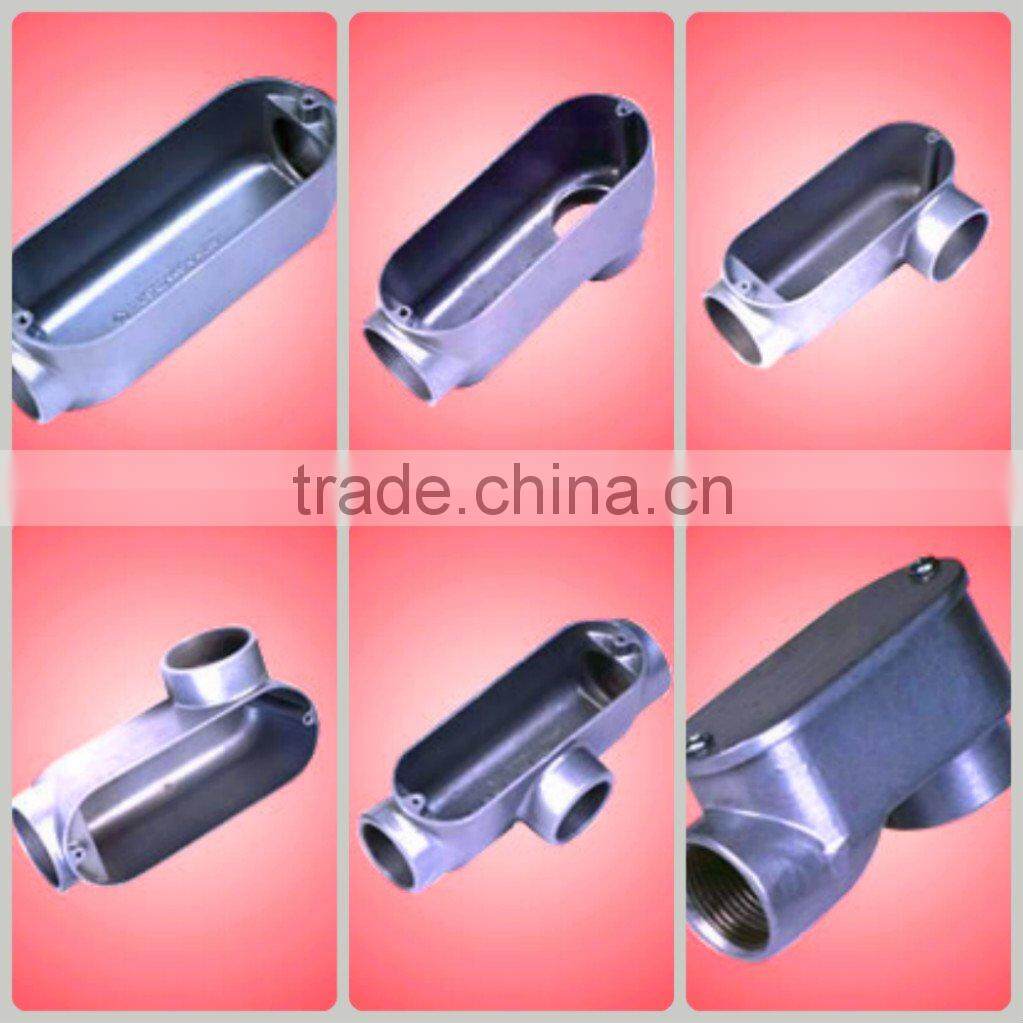

conduit bodiescess:die cast
2.with neoprene gasket or not
3.surface powder coated
size:1/2"-4"
1.Rugged,seamless,die-cast construction that prevents mositure entry
2.State of the art powder coat finish for maximum durability
3.Flat back design for easy mounting close to walls
4.May be used on aluminum or steel conduit
APPLICATIONS
1.Threaded style conduit bodies are for use on rigid conduit
2.Set-Screw style are for use on thinwall(EMT)conduit
3.Use TEDDICO/BWF conduit outlet bodies for connecting conduit sections,for making bends in conduit runs as pull outlets,or to provide openings for making splices and taps in conductors
Cat.NO. | Size | Length | Wide | High | Color |
CC-50 | 1/2" | 4-11/16" | 1-5/16" | 1-3/8" | Gray |
CC-75 | 3/4" | 5-1/2" | 1-9/16" | 1-5/8" | Gray |
CC-100 | 1" | 6-7/16" | 1-13/16" | 1-7/8" | Gray |
CC-125 | 1-1/4" | 8-3/8" | 2-1/2" | 2-1/2" | Gray |
CC-150 | 1-1/2" | 8-3/8" | 2-1/2" | 2-1/2" | Gray |
CC-200 | 2" | 10-9/16" | 3-3/16" | 3-3/8" | Gray |
CC-250 | 2-1/2" | 13-1/2" | 4-1/2" | 4" | Gray |
CC-300 | 3" | 13-1/2" | 4-1/2" | 4-1/2" | Gray |
CC-350 | 3-1/2" | 16-5/16" | 5-9/16" | 5-5/8" | Gray |
CC-400 | 4" | 16-5/16" | 5-9/16" | 5-5/8" | Gray |
