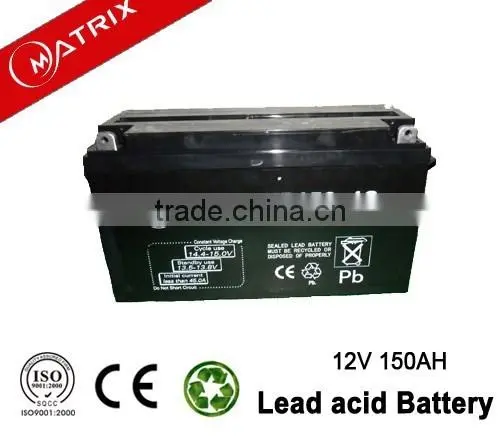

Power supply 12V solar battery 150ah
| Nominal Voltage | 12V | |
| Rated capacity(20 hour rate) | 150AH | |
| Dimensions | Length | 483±1mm(19.32inches) |
| Width | 170±1mm(6.8inches) | |
| Height | 239±1mm(9.56inches) | |
| Total Height | 240±1mm(9.6inches) | |
| Weight Approx | 45.0Kg(96.8lbs) | |
| Capacity 25°C | 10 hour rate(6.50A, 10.80V) | 150.00AH | |
| 5 hour rate(10.40A, 10.50V) | 140.00AH | ||
| 1 hour rate(39.00A, 9.60V) | 130.00AH | ||
| Internal Resistance |
Full charged Battery at 25 °C (77°F) |
6mΩ | |
|
Capacity affected by temperature (20 hour rate) |
40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
| Self-Discharge at 25 °C (77°F) | Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
|
Charge (constant voltage) |
Cycle |
Initial Charging Currentless than 19.50A Voltage14.40-15.00 V |
|
| Float | Voltage 13.50-13.80V | ||
| Terminal | T5 | ||
Applications:
1)Fire protection and security uninterruptible power supply
2)Electronic appliance and other backup power supply
3)Telephone and telecommunication equipment
4)Uninterruptible power supply systems for bank
5)Emergency lighting or small lamp fitting
6)Solar&Wind System
7)Security system
Warnings:
1)- Matrix series batteries have acid in the case and are fully charged before
leaving factory. Do not attempt to dismantle the battery, if accidental skin/eye
contact is made with electrolyte, seek medical advice immediately.
2)- Do not use a new battery with an old one.
3)- Do not use the battery in sealed container.
4)- Each battery should have detailed record including the ex-factory date,
installing date and using record.
5)- Check the connection of wire in a fixed interval (once a year). If there is
any looseness should tighten the wire.
6)- Wipe the surface of the battery with soft cloth in a fixed interval (once
three months) and always keep the battery clean.
7)- Avoid using any kind of organic solvents for cleaning the surface of the
battery.
Plate production equipment
Our company owned factories specialized in palte production and battery assembling.
We're warmly welcome your visit our factory for further acquaintance of us.
Assembling line
We're genuine factories can well control the quality, production cost and delivery time.
Normally we can delivery the products within 15-20days. For some hot models such as 6v 4ah,12V 7AH,12V 12AH,12V 17AH, 12v 100ah , we have stock in warehouse.
Short circuit testing
After connected plate group, our QC will test if there any fake connnection or short circuit in the battery.
Acid filling
Charging and discharging
Charging and discarge control equipment
To charge and discharge battery 3times(72hours), which fully activate the meterial on the plate.
Logo printing
Packing
All the battery are packed with professional package, well protected battery during the long tim transportation.
Certificate
We're ISO9001 verified factories. From material to finished poducts. Every procedure are strictly managed accordance with this quality stardard, to ensure the good quality supply to customers.
