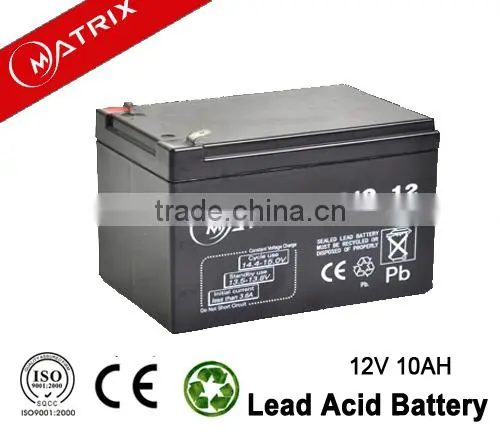

Help CenterAGM Rechargeable 12v 10ah Solar Panel Battery
Related Products
-
100ah AGM 12v High Current BatteryNegotiableMOQ: 100 Pieces -
Lead VRLA SMF Battery 12v 50ahNegotiableMOQ: 300 Pieces
-
AGM Power Backup 12V 50AH SMF BatteryNegotiableMOQ: 300 Pieces
-
AGM Power Backup 12v 80ah SMF BatteryNegotiableMOQ: 200 Pieces
-
AGM Power Backup 12v 140ah SMF BatteryUS$ 130 - 160MOQ: 100 Pieces
| Nominal Voltage | 12V | ||
| Rated capacity(20 hour rate) | 10AH | ||
| Dimensions | Length | 151±1mm(5.94 inches) | |
| Width | 98±1mm(3.86inches) | ||
| Height | 96±1mm(3.74inches) | ||
| Total Height | 101±1mm(3.98 inches) | ||
| Weight Approx | 3.20Kg(7.04lbs) | ||
| Capacity 25°C(77°F) | 20 hour rate(0.60A, 10.50V) | 10.00AH | |
| 10 hour rate(1.10A, 10.50V) | 9.60AH | ||
| 5 hour rate(2.04A, 10.50V) | 8.40AH | ||
| 1 hour rate(7.20A, 9.60V) | 7.20AH | ||
| Internal Resistance | Full charged Battery at 25 °C (77°F) | 16mΩ | |
|
Capacity affected by temperature (20 hour rate) |
40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
|
Self-Discharge at 25°C(77°F) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
|
Charge (constant voltage) |
Cycle | Initial Charging Currentless than 3.60A Voltage14.40-15.00 V | |
| Float | Voltage 13.50-13.80V | ||
| Terminal | T2,T3 | ||
General features:
1)Extremely safe and stable chemistry
2)Non-spillable construction design
3)ABS containers and covers optional
4)safty valve installation of explosion proof
5)high quality and high realiability
6)exceptional deep discharge recovery performance
7)low shelf discharge characteristics
8)flexible design for multiple installation positions
Applications:
♦Telephone switchboards, electric equipments, medical equipments, medical instruments and meters
♦Computers and uninterrupted power source (UPS)
♦ower transmission and transformer station, switch control and accident lighting
♦ Fire fighting, safety device and alarm monitoring
♦Aviation, spaceflight and power storage
♦Automatic office system
♦ Radio communication
♦ Emrgency lighting and car and ship starting system
♦Portable electric appliances and mining system
♦Traffic and navigation signal lamp
Warnings:
1)- Matrix series accumulator have acid in the case and are fully charged before
leaving factory. Do not attempt to dismantle the accumulator, if accidental skin/eye
contact is made with electrolyte, seek medical advice immediately.
2)- Do not use a new battery with an old one.
3)- Do not use the battery in sealed container.
4)- Each battery should have detailed record including the ex-factory date,
installing date and using record.
5)- Check the connection of wire in a fixed interval (once a year). If there is
any looseness should tighten the wire.
6)- Wipe the surface of the battery with soft cloth in a fixed interval (once
three months) and always keep the accumulator clean.
7)- Avoid using any kind of organic solvents for cleaning the surface of the
accumulator.
Advantages :
1.Competitive prices with reliable quality.
2.Adopting high quality PP plastic for battery case, stronger and heatproof.
3.Plates made of high purity lead 99.94-99.96% dry charged battery
4.High quality AGM separator, pure acid
Brief Introduction
MATRIX BATTERY is the leading vendor supplying lead acid battery solutions. Our business covers a wide range of fields, including solar energy, wind energy, Telecommunications, electric power, UPS, emergency illumination, security, equipment, cars, motors, electric bicycles, golf carts, forklifts, boats, engineering machines, etc. We are working on providing scientific, high grade, and professional resolving plans to let customers have wonderful battery service in multiple important parts and enrich their modern life
Plate production equipment
Our company owned factories specialized in plate production and battery assembling.
We're warmly welcome your visit our factory for further acquaintance of us.
Assembling line
We're genuine factories can well control the quality, production cost and delivery time.
Normally we can delivery the products within 15-20days. For some hot models such as 6v 4ah,12V 7AH,12V 12AH,12V 17AH, 12v 100ah , we have stock in warehouse.
Short circuit testing
After connected plate group, our QC will test if there any fake connnection or short circuit in the battery
Charging and discharging
To charge and discharge battery 3times(72hours), which fully activate the meterial on the plate.
Logo printing
Certificate:
CE, IEC,MSDS,ISO9001
If you have any quesitons, please feel free contacting us as below:
Abby Zhu
Tel: +86-755-8357-7116
Fax: +86-755-8357-7126
Mobile: +86-135-7541-7265
Skype: abbyzhu8986
************************************
Shenzhen Matrix Battery Co.Ltd
Website:
Alibaba:http://matrixbatteries.en.china.cn
************************************
Address:A1103 World Trade Plaza
FuHong Rd Futian District ShenZhen, China
Why Choose Us
1.door to door service.
2.low cost raw material with high quality.
3.Independent designer with more than 10 years design experience.
duct with the international market step.
5.our products are exported to Middle East,Europe,Asia,America,south Africa and else.
6.we would like stand with you in same line to open market with long term business.
