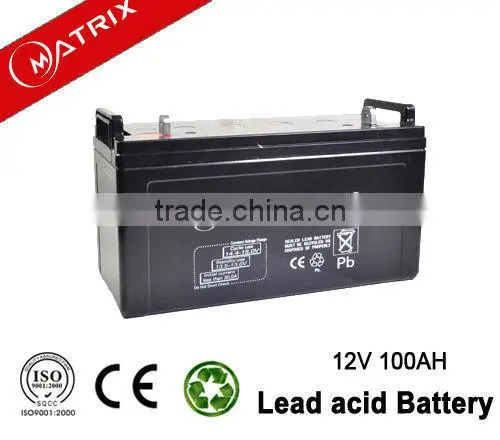

12 volt 100ah deep cycle solar battery for solar system
Detail Specifications:
* Model: NP100-12 12V lead acid battery
* Nominal Voltage: 12V lead acid battery
* Rated Capacity: 100Ah(20Hr)
* Dimension: 150(L)*50(W)*94(H)*100(TH)mm
* Approx Weight: 31.0Kg/pcs 12V lead acid battery
* Packing Detail: 1PCS/CTN 12v lead acid battery
* Loading Quantities: 20'FT=600PCS
Specification:
| Nominal Voltage | 12V | |
| Rated capacity(20 hour rate) | 100AH | |
| Dimensions | Length | 407±1mm(16.02 inches) |
| Width | 173±1mm(6.81inches) | |
| Height | 236±1mm(9.3inches) | |
| Total Height | 240±1mm(9.45 inches) | |
| Weight Approx | 31.5Kg(69.3lbs) | |
Characteristics
| Capacity 25°C | 10 hour rate(10.00A, 10.80V) | 100.00AH | |
| 5 hour rate(16.00A, 10.50V) | 80.00AH | ||
| 1 hour rate(60.00A, 9.60V) | 60.00AH | ||
| Internal Resistance | Full charged Battery at 25 °C (77°F) |
4.5mΩ | |
| Capacity affected by temperature (20 hour rate) |
40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
| Self-Discharge at 25°C(77°F) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
| Charge (constant voltage) |
Cycle | Initial Charging Currentless than 30.00A Voltage14.40-15.00 V | |
| Float | Voltage 13.50-13.80V | ||
| Terminal | T10 | ||
Packing
1.PP bags for each product
2.Standard cartons for exporting
3.Wood pallet for safe transportation
4.Material : high quality lead, spongy lead, AGM separator , pure sulphuric acid.
5.long life span
6.Warranty : 12 -15 months
7.Packing:10pcs/cartons, with or without pallet. Loading Quantities: 20'FT=857cartons
8.OEM: customer's brands & packaging design/dimension for free.
Shipment:
1. By sea,by air Shipping, other good shipping way also welcomed.
2.we will send products in 15-20 days after the bank receipt.
3.A tracking number and photos of products will send by email after arrange shipped.
Payment:
1.Pay through T/T.
2.Price term:FOB Shenzhen /HK, CIF, CFR, Door to Door.
3.The customer is responsible for any tax or bank charges by their countries.
Orders:
1.Small orders and sample orders are welcomed, if we have stocks.
2.shipping on time.
3.any problem can get in time communication by 24 hours.

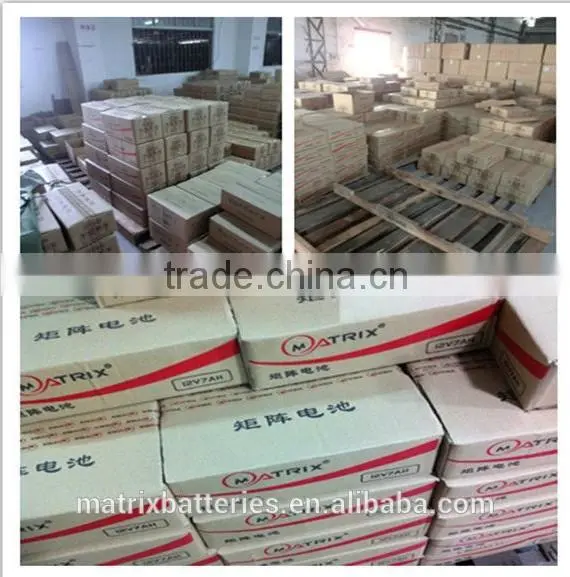

All the battery are packed with professional package, well protected battery during the long tim transportation.
