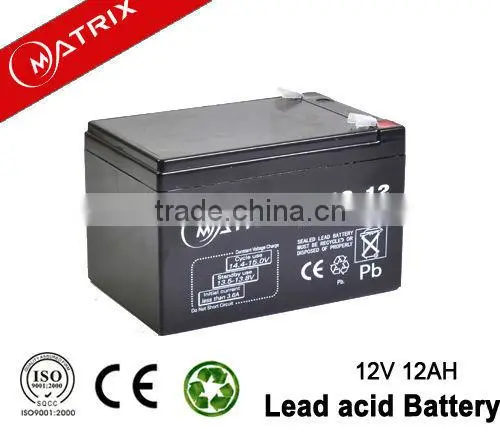

Help Center12v 12ah SLA Electric Equipment Battery
Related Products
-
6v Series 7Ah Sealed Rechargeable Battery With 12 Months WarrantyUS$ 5.5 - 7.5MOQ: 1000 Pieces -
Customized 12v 7ah Lead Acid Battery FactoryNegotiableMOQ: 1 Piece
-
6V 4ah Medical Suctions BatteryUS$ 2.5 - 3.5MOQ: 1000 Pieces
-
Lead Acid Battery for Fire Alarm System 6v10ahUS$ 5.9 - 8.9MOQ: 1000 Pieces
-
6v 4ah Sealed Lead Acid Rechargeable Battery for Emergency LightUS$ 9.7 - 12.7MOQ: 1000 Pieces
| Nominal Voltage | 12V | ||
| Rated capacity(20 hour rate) | 12AH | ||
| Dimensions | Length | 151±1mm(5.94 inches) | |
| Width | 98±1mm(3.86inches) | ||
| Height | 96±1mm(3.74inches) | ||
| Total Height | 101±1mm(3.98 inches) | ||
| Weight Approx | 3.40Kg(7.50lbs) | ||
| Capacity 25°C(77°F) | 20 hour rate(0.60A, 10.50V) | 12.00AH | |
| 10 hour rate(1.10A, 10.50V) | 11.00AH | ||
| 5 hour rate(2.04A, 10.50V) | 10.20AH | ||
| 1 hour rate(7.20A, 9.60V) | 7.20AH | ||
| Internal Resistance | Full charged Battery at 25 °C (77°F) | 16mΩ | |
| Capacity affected by temperature (20 hour rate) |
40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
| Self-Discharge at 25°C(77°F) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
| Charge (constant voltage) |
Cycle | Initial Charging Currentless than 3.60A Voltage14.40-15.00 V | |
| Float | Voltage 13.50-13.80V | ||
| Terminal | T2,T3 | ||
Application:
1.Telephone switchboards, electric equipments, medical equipments, medical instruments and meters
2.Computers and uninterrupted power source (UPS)
3.Power transmission and transformer station, switch control and accident lighting
4.Fire fighting, safety device and alarm monitoring
5.Aviation, spaceflight and power storage
6.Automatic office system
7.Radio communication system
8.Emergency lighting and car and ship starting system
9.Portable electric appliances and mining system
10.Traffic and navigation signal lamp
Notice:
1.Don’t near the hot source and don’t under the sunshine.
2.Don’t charge in the sealed container.
3.No short circuit. It should be addition charge if you don’t use, and single charge per three months, to avoid irreversible sulfating. The battery should be changed when the battery jar broken or the electrolyte omitted, to avoid acid corrosion.
4.Don’t store in the space of acid gas. You should be careful and regular check when use the battery. To avoid the battery don’t work. You should change the battery if the capacity is not full or has been damage, especially after one year using.
5.Don’t put the battery in the fire, or it will explode. Please use cotton cloth to clean, if the battery is broken down and leak electrolyte. Please wash your skin when touch the electrolyte.
6.Don’t clean the battery by using the organic solution. (e.g. petrol)
Brief Introduction
MATRIX BATTERY is the leading vendor supplying lead acid battery solutions. Our business covers a wide range of fields, including solar energy, wind energy, Telecommunications, electric power, UPS, emergency illumination, security, equipment, cars, motors, electric bicycles, golf carts, forklifts, boats, engineering machines, etc. We are working on providing scientific, high grade, and professional resolving plans to let customers have wonderful battery service in multiple important parts and enrich their modern life
Plate production equipment
Our company owned factories specialized in plate production and battery assembling.
We're warmly welcome your visit our factory for further acquaintance of us.
Assembling line
We're genuine factories can well control the quality, production cost and delivery time.
Normally we can delivery the products within 15-20days. For some hot models such as 6v 4ah,12V 7AH,12V 12AH,12V 17AH, 12v 100ah , we have stock in warehouse.
Short circuit testing
After connected plate group, our QC will test if there any fake connnection or short circuit in the battery
Charging and discharging
To charge and discharge battery 3times(72hours), which fully activate the meterial on the plate.
Logo printing
Certificate:
CE, IEC,MSDS,ISO9001
