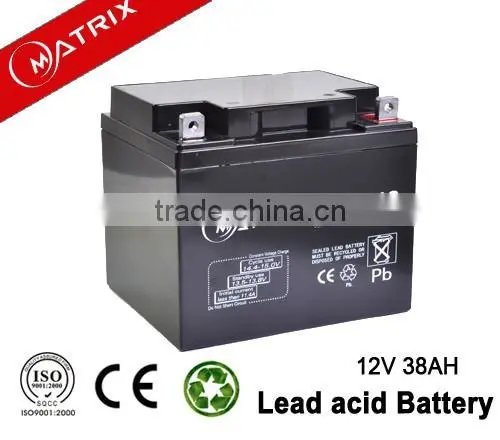

Manufacturer 12v 38ah battery for solar and wind system
Deep cycle Battery features:
1.Using oxygen recombination technology: maintenance-free

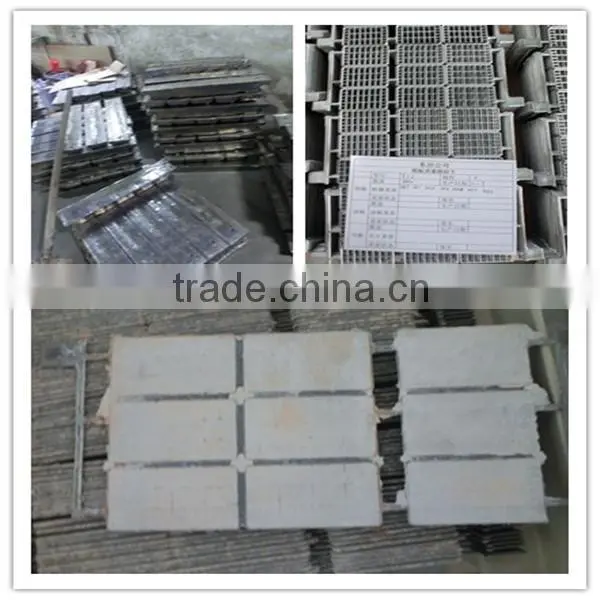

2.PbCaSn alloy for plate grids: less gassing, less self-discharging
3.High quality AGM separator: extend cycle life and prevent micro short circuit
4.ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);
5.High purity raw material: ensure low self discharge rate
Characteristic :
| Capacity 25°C | 10 hour rate(3.80A, 10.80V) | 38.00AH | |
| 5 hour rate(6.56A, 10.50V) | 32.80AH | ||
| 1 hour rate(24.30A, 9.60V) | 24.30AH | ||
| Internal Resistance |
Full charged Battery at 25 °C (77°F) |
9.7mΩ | |
|
Capacity affected by temperature (20 hour rate) |
40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
| Self-Discharge at 25 °C (77°F) | Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
|
Charge (constant voltage) |
Cycle | Initial Charging Currentless than 11.40A Voltage14.40-15.00 V | |
| Float | Voltage 13.50-13.80V | ||
| Terminal | T32 | ||
Specification :
| Nominal Voltage | 12V | |
| Rated capacity(20 hour rate) | 38AH | |
| Dimensions | Length | 197±1mm(7.76inches) |
| Width | 166±1mm(6.50inches) | |
| Height | 170±1mm(6.69inches) | |
| Total Height | 170±1mm(6.69inches) | |
| Weight Approx | 12.0Kg(27.56lbs) | |
Applications:
- Data Centre (High Rate UPS)
- Telecommunication
- Banks & Financial Centre
- Hospital& Testing Laboratories
- Power Generation Plants
- Emergency Lighting
- Emergency Power Supply
- High Power Backup Supply
- LED Light
- VAN
- Wheel chairs
- Security system"Alarm system" "CCTV"
- "Video" Camera""Loudspeaker"
- Marine
- Wheel Chair
- Mobility scooter
- Kids car/TOY
Warnings:
- Matrix series batteries have acid in the case and are fully charged before leaving factory. Do not attempt to dismantle the battery, if accidental skin/eye contact is made with electrolyte, seek medical advice immediately.
- Do not use a new battery with an old one.
- Do not use the battery in sealed container.
- Each battery should have detailed record including the ex-factory date, installing date and using record.
- Check the connection of wire in a fixed interval (once a year). If there is any looseness should tighten the wire.
- Wipe the surface of the battery with soft cloth in a fixed interval (once three months) and always keep the battery clean.
- Avoid using any kind of organic solvents for cleaning the surface of the battery.
