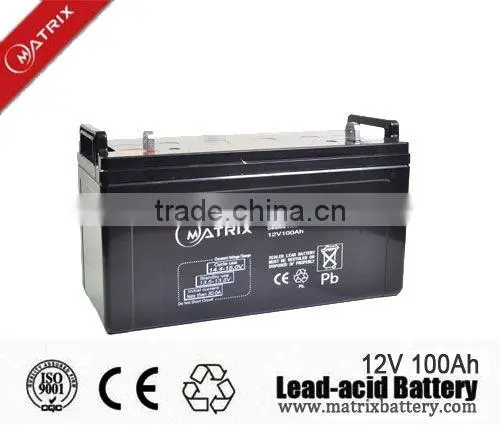

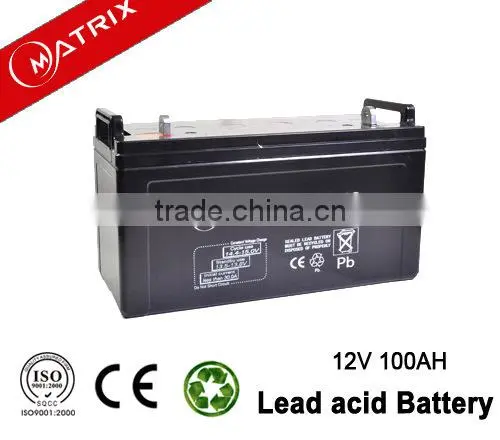

Solar System Usage Deep Cycle 12V 100Ah Lead Acid Battery
1. Model: NP100-12(12V100Ah)
2. Dimension: 409*175*209mm
3. Total height:238mm
4. Wieght: 31.5 kgs approx
5. Terminal: T11
6. OEM availabe
7. lead acid battery Sample available for your special demands.
Lead Acid Battery Specification:
Battery Model |
NP 100-12 12V100AH |
|||
Designer Floating Life |
Up to 5 Years |
|||
Capacity (25℃) |
20HR(5.2A,10.50V) |
10HR(9.8A,10.80V) |
5HR(17A,10.8V) |
3HR(2A,10.8V) |
|
104AH |
98AH |
85AH |
75AH |
Dimensions |
Length |
Width |
Height |
Total Height |
|
409mm (16.1inch) |
176mm (6.9inch) |
225mm (8.9inch) |
225mm (8.9inch) |
Approx. Weight |
32.0Kg (70.5 lbs) |
|||
Internal Resistance |
Full charged at 25℃:≤3.5mΩ |
|||
Self Discharge |
2% of capacity declined per month at (25℃) |
|||
|
Capacity Affected by Temp.(20HR) |
40℃ |
25℃ |
0℃ |
-15℃ |
|
102% |
100% |
88% |
78% |
Charge Voltage(25oC) |
Cycle use |
Float use |
||
|
14.4-14.6V(-30mV/℃), max. Current: 25.0A |
13.6-13.8V (-20mV/℃) |
||
Feature :
1. Maintenance-free: advanced VRLA technology and absorption glass fiber separator to save the trouble adding electrolyte within usage life.
2.Leak tightness: unique structure design and sealing technology to guarantee no electrolyte leak regardless of chargers position.
3. No memory effect: the capacity of some batteries like ni-cd is to reduce as a result of repeated usages, namely memory effect, while battery has no such deficiency.
4. Low self discharge: Battery adopts special lead-calcium alloy slab lattice control to reduce battery self discharge to its minimum level to save trouble re-charging in long-time use.
5. Long life: special material slab lattice and electrolyte added by high polymer material to expand the life span of the battery
6. Wide range of suitable temperature.
7. Safe: low pressure air vent valve system to avoid excess gas producing inside the battery to guarantee normal usage life.
Lead acid battery Application:
1. For dynamic, sound and images: electric tools, toys, portable vacuum cleaners, auto-run robot, electric bicycles, portable CD players, cameras, TVs, notebook computers, word processors
2. For telecommunication: car phones, mobile telephone systems, portable radio transmitters and portable terminals.
3. For survey and medical service: Portable measuring instrument, sphygmomanometer, electrically operated wheelchair.
4. For office: universal UPS, office computers, computer terminals and DOS operation system.
5. For communication: key pad telephone, PHS relay stations, telephone exchanges, cable TV and fiber-optic communications equipment
6. For security: burglar alarm system and abnormal alarm system.
7. For industrial use: emergency lighting system.
Battery picture and packing:
