Home Solar system 12v 100ah gel battery
MNG Series-- Storage-type Gelled Battery
l completely sealed and maintenance-free, low self-discharge
l 100% precise quality testing, stable quality and high reliable performance
l Unique grid alloy formula, Gelled electrolyte formula and updated manufacturing technique

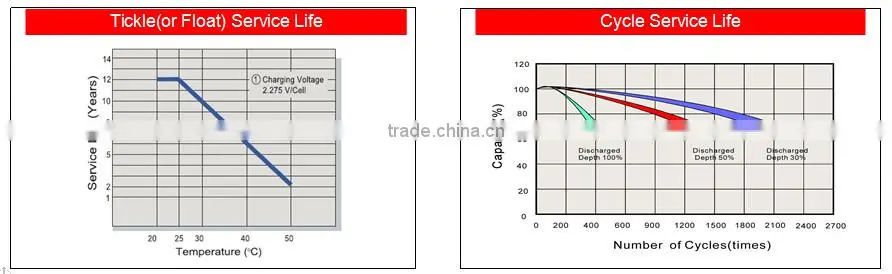

l Floating & standby use:up to 12 years
l Cycle use 1: More than 350 cycles at 100% DOD
l Cycle use2: More than 1800cycles at 30% DOD
Application:
l Telecommunications
l UPS/EPS
l DC Power Supply
l Solar system
l Wind Power System
l Auto Control Sytem
Construction:
lComponent ......Raw material
lSealant ........Epoxy
lSafety valve .... Rubber
lTerminal ........Copper/Pb
lSeparator ........Fiber glass
lElectrolyte ....... Gelled acid
lPositive ........Lead dioxide
lNegative ........Lead
lContainer ........ABS
lCover ........ABS
Speification:
Battery Model |
MMG 100-12 12V100AH |
|||
Designed Floating Life |
Up to 12 Years |
|||
Capacity (25℃) |
20HR(5.2A,10.50V) |
10HR(9.8A,10.80V) |
5HR(17A,10.8V) |
3HR(2A,10.8V) |
104AH |
98AH |
85AH |
75AH |
|
Dimensions |
Length |
Width |
Height |
Total Height |
407mm (16inch) |
173mm 6.81inch) |
207mm (8.15inch) |
236mm (9.29inch) |
|
Approx. Weight |
32.0Kg (70.5 lbs) |
|||
Internal Resistance |
Full charged at 25℃:≤3.5mΩ |
|||
Self Discharge |
2% of capacity declined per month at (25℃) |
|||
|
Capacity Affected by Temp.(20HR) |
40℃ |
25℃ |
0℃ |
-15℃ |
102% |
100% |
88% |
78% |
|
Charge Voltage(25oC) |
Cycle use |
Float use |
||
14.4-14.6V(-30mV/℃), max. Current: 36.0A |
13.6-13.8V (-20mV/℃) |
|||
Constant Current Discharge(CC,Unit:A) at 25℃(77℉) | ||||||||||||
F.V/Time |
5Min |
10Min |
15Min |
30Min |
1Hr |
2Hr |
3Hr |
4Hr |
5Hr |
8Hr |
10Hr |
20Hr |
1.85V/Cell |
209.0 |
160.0 |
135.0 |
98.0 |
56.0 |
33.30 |
23.90 |
19.70 |
16.20 |
11.41 |
9.80 |
4.85 |
1.80V/Cell |
259.0 |
205.0 |
164.0 |
105.0 |
58.0 |
34.50 |
25.30 |
20.80 |
16.30 |
11.92 |
10.0 |
5.00 |
1.75V/Cell |
266.0 |
224.0 |
171.0 |
108.0 |
59.0 |
36.80 |
25.80 |
21.30 |
16.60 |
12.12 |
10.10 |
5.20 |
1.70V/Cell |
284.0 |
230.0 |
176.0 |
110.0 |
60.0 |
37.10 |
26.30 |
21.30 |
16.60 |
12.20 |
10.20 |
5.30 |
1.60V/Cell |
318.0 |
242.0 |
183.0 |
114.0 |
62.0 |
37.60 |
27.10 |
21.80 |
17.10 |
12.42 |
10.40 |
5.50 |
Constant Power Discharge (CP,Unit:W) at 25℃(77℉) | ||||||||||||
F.V/Time |
5Min |
10Min |
15Min |
30Min |
1Hr |
2Hr |
3Hr |
4Hr |
5Hr |
8Hr |
10Hr |
20Hr |
1.85V/Cell |
397.1 |
304.0 |
256.5 |
186.2 |
106.4 |
63.3 |
45.4 |
37.4 |
30.8 |
21.7 |
18.6 |
9.2 |
1.80V/Cell |
492.1 |
389.5 |
311.6 |
199.5 |
110.2 |
65.6 |
48.1 |
39.5 |
31.0 |
22.6 |
19.0 |
9.5 |
1.75V/Cell |
505.4 |
425.6 |
324.9 |
205.2 |
112.1 |
69.9 |
50.0 |
40.5 |
31.5 |
23.0 |
19.2 |
9.9 |
1.70V/Cell |
539.6 |
437.0 |
334.4 |
209.0 |
114.0 |
70.5 |
50.0 |
40.5 |
31.5 |
23.2 |
19.4 |
10.1 |
1.60V/Cell |
604.2 |
459.8 |
347.7 |
216.6 |
117.8 |
71.4 |
51.5 |
41.4 |
32.5 |
23.6 |
19.8 |
10.5 |
