Specifications
Professional Manufacturer1:Maintenance free
2:High discharge rate
3:Competition price&high quality
4:3-5years lifespan
12v 200ah Telecom base station battery
Company profile:
Company Name: |
ShenZhen Matrix Battery Co., Ltd. |
|
Business Type: |
Manufacturer |
|
Main Products: |
Battery |
|
Operational Address: |
A1101 International Trade Plaza, Futian District ,Shenzhen, China (Mainland) |
Shenzhen Matrix Battery Co., Ltd. (MATRIX BATTERY for short) is a high-tech manufacturer specialized in the research, production, sale and service of all kinds of Matrix (brand) lead acid batteries. Our company is committed to studying and applying new materials in green energy field and making it industrialized. We mainly have four series of products, which are lead acid battery series for backup power, lead acid battery series for motorcycle, powerful lead acid battery series and stored energy lead acid battery series. The productive capacity of MATRIX BATTERY can reach 1 million Kilovolt Ampere/Hour per year with more than 600 staff members and advanced battery production technology and ability.
base station battery
- Maintenance free
- High power to weight ratio
- No memory effect
- Low self discharge
- CE certificate
- Long service life
- High discharge rate
- Wide operating temperature range
Application (Cycle Use) :
Portable VTR/TV, tape recorders, radio, etc.
Power tools, lawn mowers, vacuum cleaners
Cameras and photographic equipment
Portable personal computers, word processors, portable terminals, etc.
Portable measuring equipment
Portable telephone sets
Various power toys and hobby equipment
Lighting equipment
- Data Centre (High Rate UPS)
- Telecommunication
- Banks & Financial Centre
- Hospital& Testing Laboratories
- Power Generation Plants
- Emergency Lighting
- Emergency Power Supply
- High Power Backup Supply
- LED Light
- VAN
- Wheel chairs
- Security system"Alarm system" "CCTV"
- "Video" Camera""Loudspeaker"
- Marine
- Wheel Chair
- Mobility Scooter and Kids Car

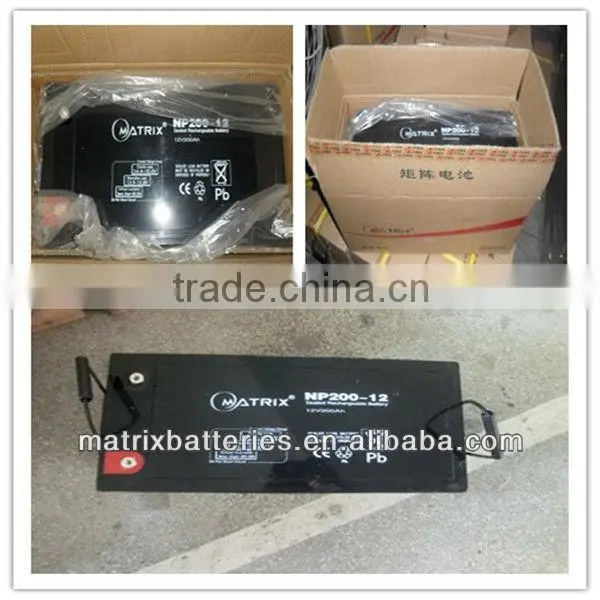

PICTURE OF BATTERY AND FACTORY :
Characteristic :
| Capacity 25°C | 10 hour rate(20.00A, 10.80V) | 200.00AH | |
| 5 hour rate(35.00A, 10.50V) | 175.00AH | ||
| 1 hour rate(124.00A, 9.60V) | 124.00AH | ||
| Internal Resistance |
Full charged Battery at 25 °C (77°F) |
3mΩ | |
|
Capacity affected by temperature (20 hour rate) |
40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
|
Self-Discharge at 25°C(77°F) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
|
Charge (constant voltage) |
Cycle | Initial Charging Currentless than 60.00A Voltage14.40-15.00 V | |
| Float | Voltage 13.50-13.80V | ||
| Terminal | M8 | ||
Specification :
| Nominal Voltage | 12V | |
| Rated capacity(10 hour rate) | 200AH | |
| Dimensions | Length | 522±1mm(20.55 inches) |
| Width | 235±1mm(9.25inches) | |
| Height | 218±1mm(8.58inches) | |
| Total Height | 222±1mm(8.74 inches) | |
| Weight Approx | 56Kg | |
Warnings: base station battery
- Matrix series batteries have acid in the case and are fully charged before leaving factory. Do not attempt to dismantle the battery, if accidental skin/eye contact is made with electrolyte, seek medical advice immediately.
- Do not use a new battery with an old one.
- Do not use the battery in sealed container.
- Each battery should have detailed record including the ex-factory date, installing date and using record.
- Check the connection of wire in a fixed interval (once a year). If there is any looseness should tighten the wire.
- Wipe the surface of the battery with soft cloth in a fixed interval (once three months) and always keep the battery clean.
- Avoid using any kind of organic solvents for cleaning the surface of the battery.
