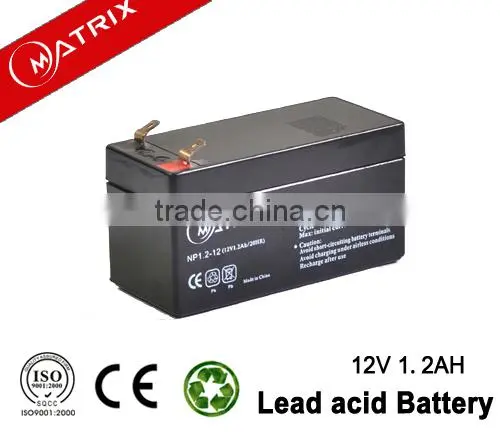

1.2AH Power Safe Battery 12v

1.2AH Power Safe Battery 12v thumbnail-1
1.2AH Power Safe Battery 12v photo-1
US$ 2 - 3 MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Matrix
Model Number:
NP1.2-12
Contact Supplier Request Quote Chat Now
Shenzhen Matrix Battery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Matrix
Model Number NP1.2-12
Usage Other, Security system
Voltage Other, 12v
Sealed Type Sealed
Maintenance Type Free
Size 97*43*52*58mm
Weight Approx 0.5
Nominal Capacity 1.2ah
1.2AH power safe battery 12v

Product Description



l completely sealed and maintenance-free, low self-discharge

l 100% precise quality testing, stable quality and high reliable performance

l Unique grid alloy formula and updated manufacturing technique

l Floating & standby use:up to 3 years

l Cycle use 1: More than 240 cycles at 100% DOD

l Cycle use2: More than 1200cycles at 30% DOD





Application:





l Telecommunications

l UPS/EPS

l DC Power Supply

l Solar system

l Wind Power System

l Auto Control System



Construction:



lComponent ......Raw material

lPositive ........Lead dioxide

lNegative ........Lead

lContainer ........ABS

lCover ........ABS

lSealant ........Epoxy

lSafety valve ....Rubber

lTerminal ........Copper

lSeparator ........Fiber glass

lElectrolyte .......Sulfuric acid



Specification:



Battery Model

NP 1.2-12  12V1.2AH

Designer Floating Life

Up to 3 Years

Capacity  (25℃)

20HR(0.065A,10.50V)

10HR(0.12A,10.50V)

5HR(0.222A,10.5V)

1HR(0.75A,10.5V)

1.3AH

1.2AH

1.11AH

0.75AH

Dimensions

Length

Width

Height

Total Height

97mm (3.82inch)

43mm (1.69inch)

52mm (2.05inch)

58mm (2.28inch)

Approx. Weight

0.55 Kg (1.21 lbs)

Internal Resistance

Full charged at 25℃:≤85mΩ

Self Discharge

2% of capacity declined per month at (25℃)

Capacity Affected

by Temp.(20HR)

40℃

25℃

0℃

-15℃

102%

100%

88%

78%

Charge Voltage(25oC)

Cycle use

Float use

14.4-14.6V(-30mV/℃), max. Current: 0.36A

13.6-13.8V (-20mV/℃)



Constant Current Discharge(CC,Unit:A)  at 25℃(77℉)

F.V/Time

5Min

10Min

15Min

30Min

1Hr

2Hr

3Hr

4Hr

5Hr

8Hr

10Hr

20Hr

9.6V

5.20

3.51

2.47

1.50

0.78

0.46

0.33

0.27

0.23

0.15

0.12

0.07

10.2V

4.68

3.20

2.22

1.42

0.73

0.44

0.33

0.26

0.22

0.15

0.12

0.07

10.5V

4.43

3.04

2.08

1.38

0.71

0.43

0.32

0.25

0.22

0.15

0.12

0.06

10.8V

4.12

2.88

1.95

1.34

0.68

0.42

0.31

0.24

0.21

0.14

0.12

0.06

11.1V

3.90

2.73

1.82

1.30

0.66

0.41

0.30

0.24

0.20

0.14

0.11

0.06

Constant Power Discharge (CP,Unit:W) at 25℃(77℉)

F.V/Time

5Min

10Min

15Min

30Min

1Hr

2Hr

3Hr

4Hr

5Hr

8Hr

10Hr

20Hr

9.6V

55.2

37.3

26.2

15.9

9.0

5.3

3.87

3.11

2.64

1.74

1.42

0.78

10.2V

51.9

35.4

24.6

15.8

8.5

5.1

3.76

3.01

2.59

1.71

1.40

0.76

10.5V

50.2

34.5

23.6

15.6

8.2

5.0

3.70

2.86

2.57

1.70

1.39

0.75

10.8V

47.9

33.5

22.7

15.5

8.0

4.9

3.66

2.82

2.46

1.63

1.35

0.74

11.1V

46.4

32.4

21.6

15.4

7.9

4.8

3.55

2.81

2.41

1.57

1.33

0.73
