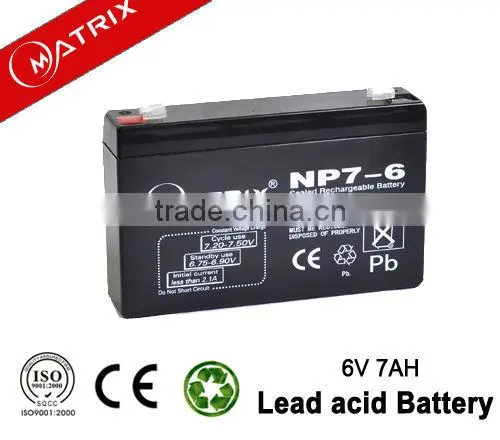

Maintenance Free SLA Battery 6V 7Ah Traffic Signs
Detail Specifications:
* Model: NP7-6
* Nominal Voltage: 6V lead acid battery
* Rated Capacity: 7Ah(20Hr)
* Dimension: 151(L)*34(W)*94(H)*100(TH)mm
* Approx Weight: 1.05Kg/pcs 12V lead acid battery
* Packing Detail: 20PCS/CTN 12V lead acid battery
* Loading Quantities: 20'FT=1,8000PCS
Main Features:
1.Low selfdischarge: lower than 3% of rated capacity per month under normal operating temperature
2.ABS case (can be made with flame retardant V0)
3.No memory effect after repetitious usage or discharges
4.Maintenance-free operation
5.Sealed construction and leak proof
6.Safety valve regulated system
7.Operating in any position
8.Deep discharge recovery
9.Wide operating temperature range
Applications:
1.Power transmission and transformer station, switch control and accident lighting
2.Fire fighting, safety device and alarm monitoring
3.Automatic office system
4.Radio communication system
5.Emergency lighting and car and ship starting system
Type :6v Battery:
1.Standard:GERMAN Standard
2.Material : high quality lead-stibonium alloy , AGM separator , pure sulphuric acid add special Additive.
3. Super starting power and long life.
4.Warranty : 12 -15 months
5.Delivery:within 25 days after receiving deposit.
6.OEM: customer's brands & packaging design/dimension for free.
Our advantages :
1.Competitive prices with reliable quality.
2.Adopting high quality PP plastic for battery case, stronger and heatproof.
3.Plates made of high purity lead 99.994-99.996% dry charged battery
4.High quality AGM separator, pure acid
SPECIFICATIONS:
| Nominal Voltage | 6V | |
| Rated capacity(20 hour rate) | 7.0AH | |
| Dimensions | Length | 151±1mm(5.94inches) |
| Width | 34±1mm(1.34inches) | |
| Height | 94±1mm(3.70inches) | |
| Total Hight | 100±1mm(3.94inches) | |
| Weight Approx | 1.05Kg(2.31lbs) | |
CHARACTERISTICS:
| Capacity 25°C(77°F) | 20 hour rate(0.35A, 5.25V) | 7.00AH | |
| 10 hour rate(0.67A, 5.25V) | 6.70AH | ||
| 5 hour rate(1.19A, 5.25) | 5.95AH | ||
| 1 hour rate(4.40A, 4.80V) | 4.40AH | ||
| Internal Resistance | Full charged Battery at 25 °C (77°F) |
15mΩ | |
| capacity affected by temperature(20 hour rate) | 40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
| Self-Discharge at 25 °C (77°F) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
| Charge (constant voltage) |
Cycle | Initial Charging Current less than 2.10 A Voltage Charge 7.20~7.50V |
|
| Float | Voltage 6.75~6.90V | ||
| Terminal | T1 OR T2 | ||
