Travelling Electric Rickshaw for Passenger

FOB Price

US$ 2,500 - 2,850 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Voltage	48V
Power Supply	Storage Battery	Wheel Size	Other, 18"
Motor	Other, Brushless, 48V 1000W brushless differential motor	Certification	CE
Frame Material	Steel	Foldable	No
Max Speed	Other, 25 km/h
Place of Origin	Henan, China	Brand Name	ZZMERCK
Model Number	M-TB01

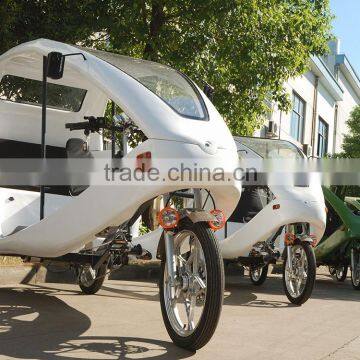

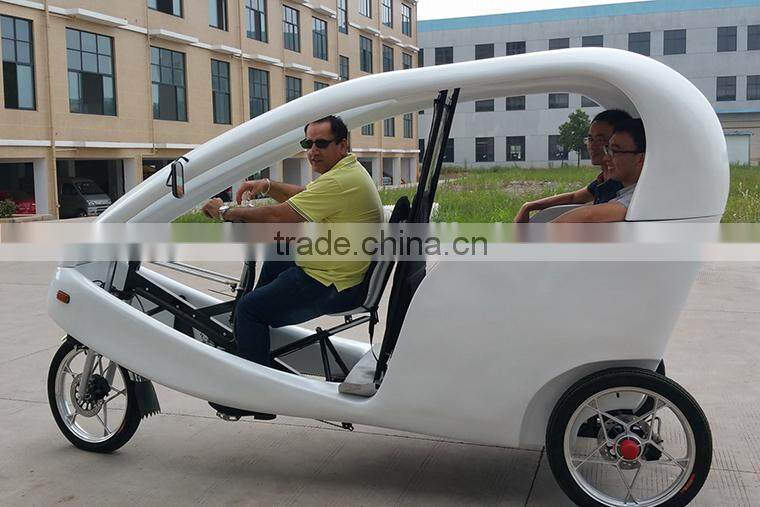

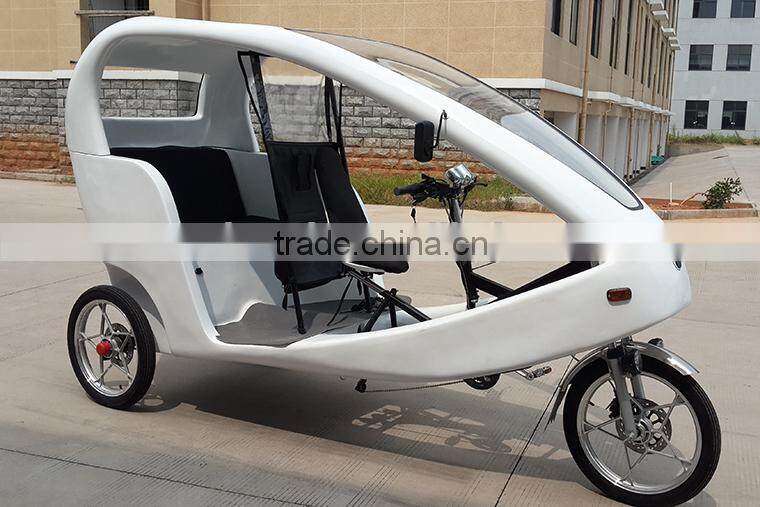

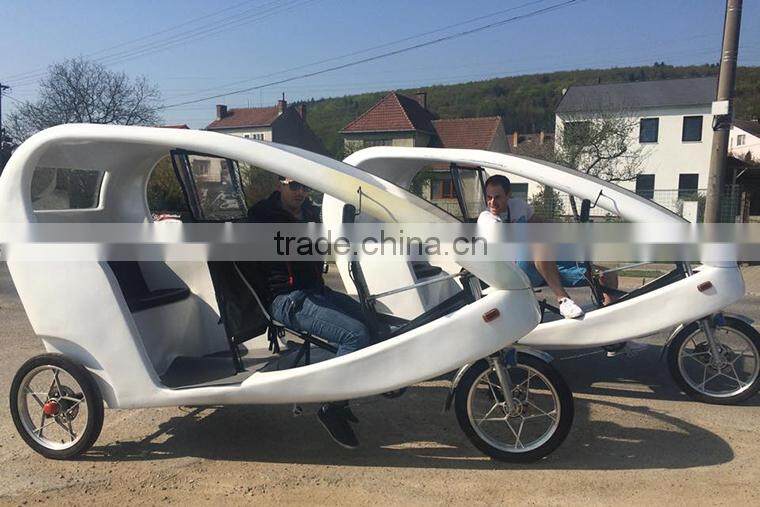

Passenger velotaxi bike for renting

Product Description

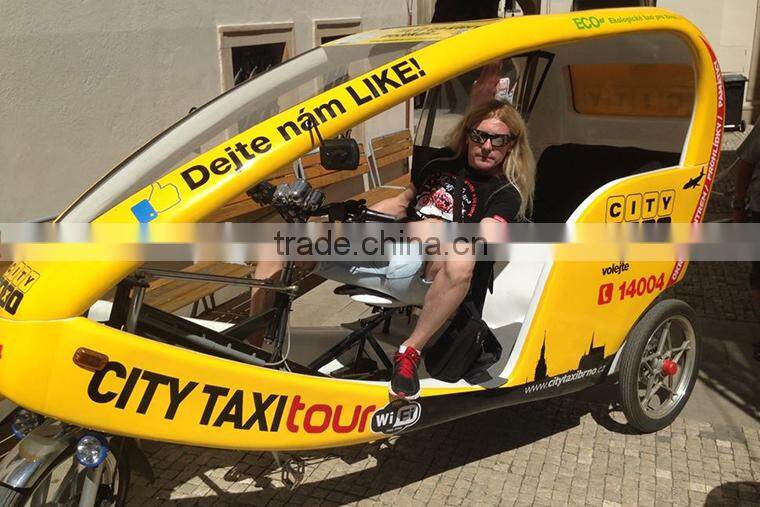

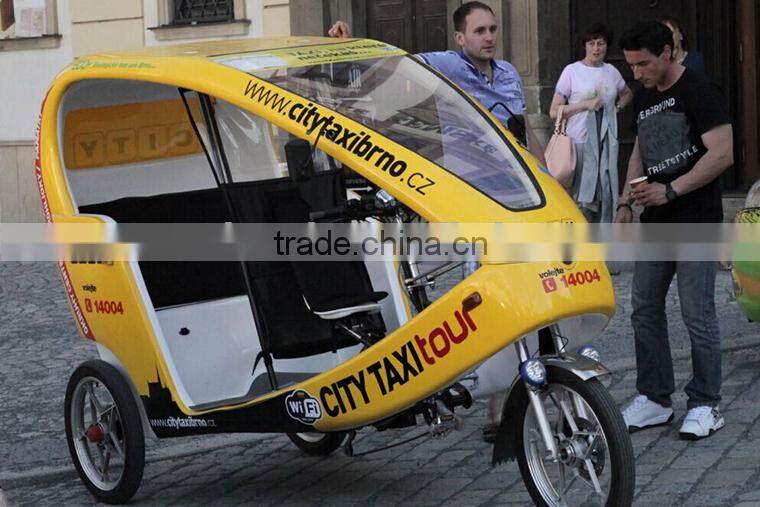

You can make advertising on bike:

Product Specs

Main Components
Frame	Rugged steel
Cab	Glass fiber reinforced plastic
Steering fork	Shoulders type damper front fork
Brakes	Hydraulic disc brakes
Damper	Drum spring damper (rear)
Gears	Shimano 3*7 gears
Rim	Integrated aluminum alloy
Tires	18"X2.75
Electric System
Motor	48V 1000W brushless DC permanent magnet differential motor
Battery	12V 60Ah Lead-acid battery4 or 48V 60Ah LiFePO4 battery*
Controller	48V 1000W brushless controller
Charger	100V - 240V AC, 50/60 Hz
Pedal Assist System	1:1
Performance
Max. speed	25 km/h
Endurance distance	105 km (Depends on weight, assistance, terrain, weather conditions etc.)
Charging time	6-8 hours
Max. braking distance	4 m
Climbing capacity	20 %
Parking capacity	20 %
Loading Capacity:	300 kg
Meter	LCD digital meters, indicating lights, speed, power
Lighting system	12 volt lighting system (turn signals, running, braking)
Beep	Beep when turning and reversing
Size
Overall dimension	3100 (L) * 1100 (W) * 1850 (H) mm
Wheel base	2500 mm
Wheel interval	1040 mm
Passenger seat dimension	840 (L) * 330 (W) mm
Packing
N.W.	200 kg
G.W.	270 kg
Packing size	307123200 cm, 100% assembled
Container load QTY	4 units/20"GP, 8 units/40"GP
Accessories
Passenger safety belt
MP3 speaker
Media player
USB charging outlet
Extra brake light
GPS

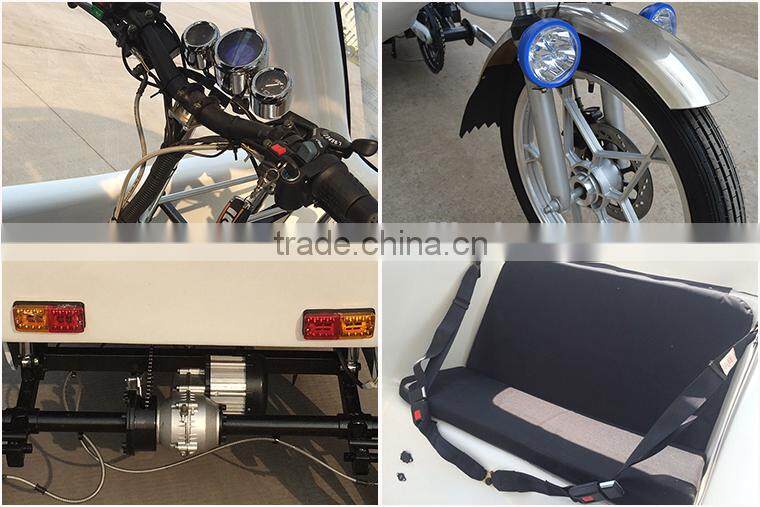

Detailed Images

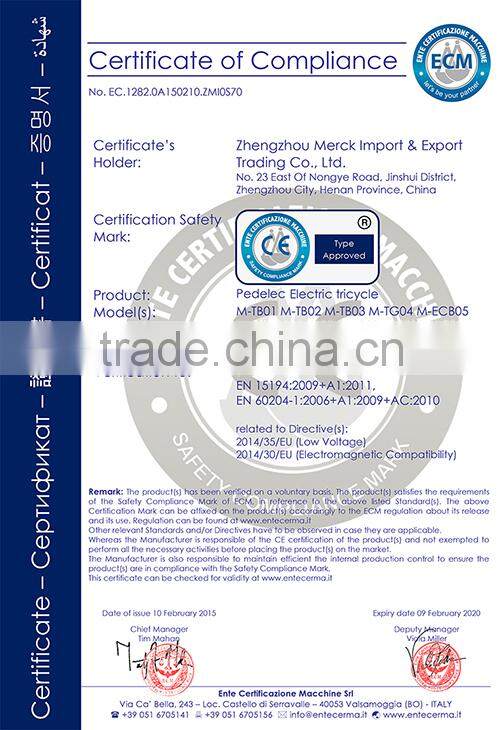

Certifications

Packaging

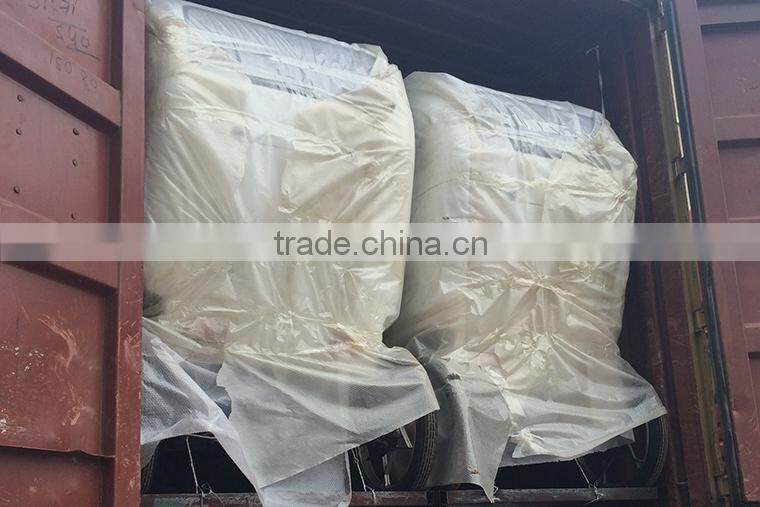

The container loading: 20"FCL: 4 units, 40"FCL: 8 units.

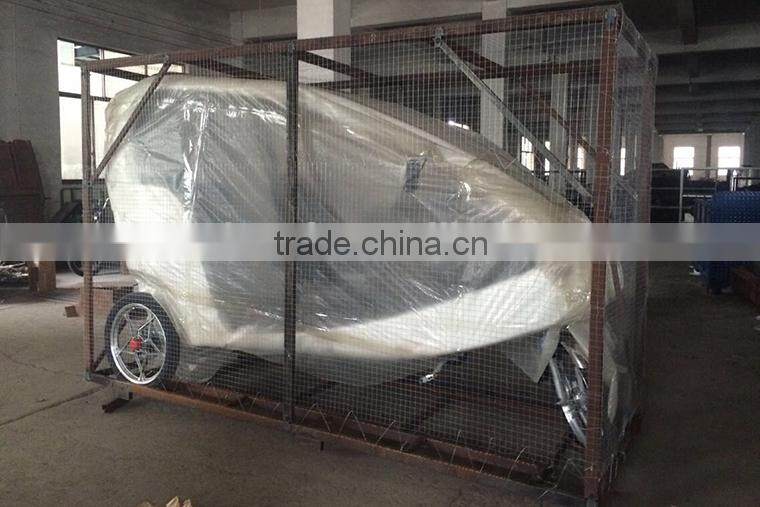

The rickshaw is fully assembled in iron case:

Option accessaries

We can also install Safety belt for passenger seat, MP3 player, USB charging outlet, and GPS. But It deponds on the customer's request.
