Hot sale soft tube filling sealing machine SH-100
Main describtion:
Use rotary piston way, filling precision, using light point control, folding sealing, all work with high
precision cylinderfull stroke control,easy to adjust filling volume, the filling speed can be adjusted.
It applies to all kinds of composite tubes, plastic pipe and metal pipe fillingand sealing, date printing,
cut the tail. Folding neat appearance, folding strong, high accuracy, good stability. According to the
different material properties, Optional ingredients bucket heating system, anti-leak filling head Machine,
adopts imported PLC control, import the original frequency control,pneumatic components using

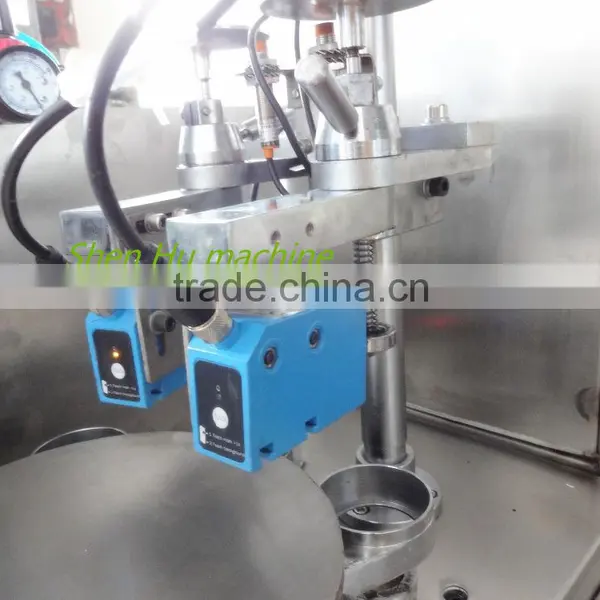

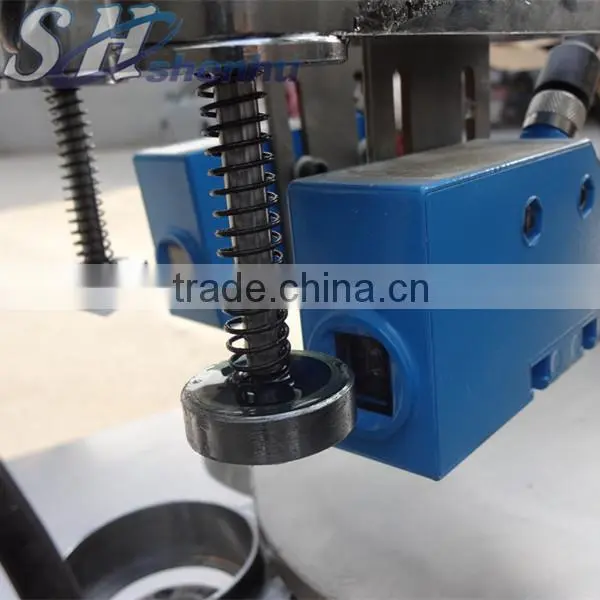

(AIRTAC), import original (SICK) photoelectric sensors, high stability.
Packaging materials and filling materials Scope:
1) aluminum, plastic pipe, composite pipe.
2) ointment, cream, gel viscosity fluids agents.
Applicable industries:
Cosmetics, light industry (household chemicals), pharmaceutical, food and other industries
for enterprise product selection to the hose for the packaging container, the device suitable
fot ointments, creams, gels or viscosity fluid filling,, and then folding and sealing the hose
tail and print code, the system produces the finished product. Aluminum tube filling and
folding machine is mainly used for the packaging containers of metal hose material
quantitative filling, folding, this machine is widely used in pharmaceutical, cosmetic, food,
chemical and other industries packaging. Such as ointments, gels, adhesives, AB glue,
epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste filling
and sealing materials.
work procedure:

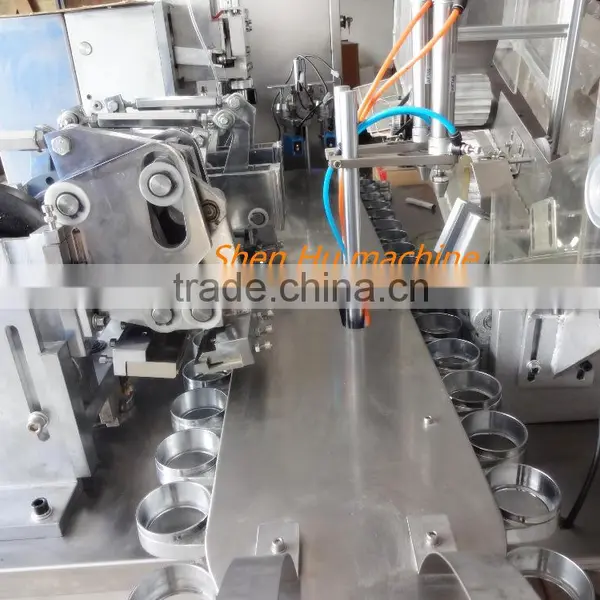

Tube position (hose container) → automatic identification label located on pipe→ →
filling quantity control test + + [hose internal cleansing (option)] → →filling → flat tail
180 °, once again folded 180 ° →folded 180 ° → saddle shaped fold → tail shaping
→ Print → finished discharge code

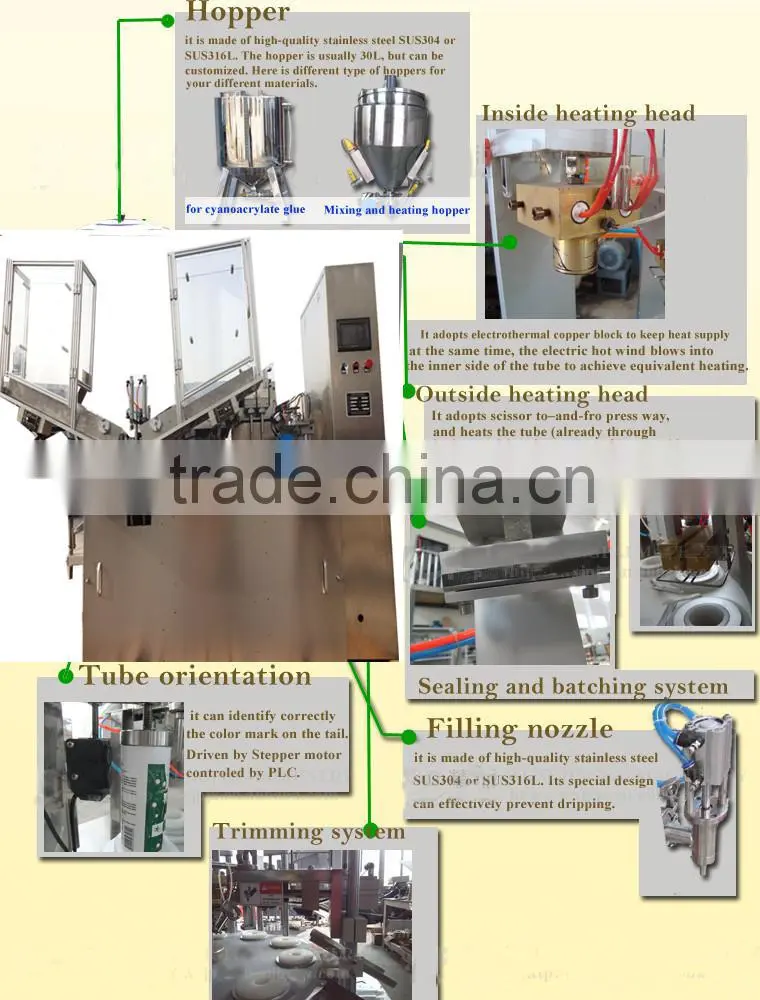

How it works:
Adopts PLC program control. Automatic tube, color positioning, filling quantitycontrol +

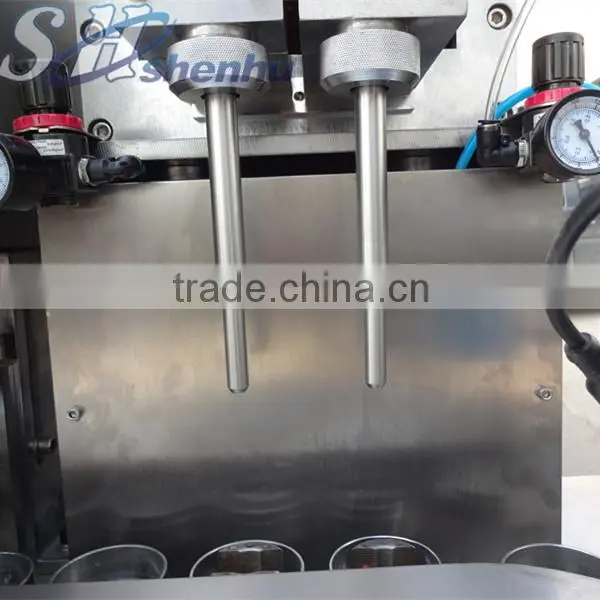

test + air cleaning (option), injection material filling nozzle deep insidethe hose, clip flat
tail, once folded 180 °, again folded 180 °, saddle form folding, tail shaping, printing code,
product discharge.
Standard Export wooden case.
Delivery within 15-30 days
Optional accessories:
Standard: Xiegua automatic feeding tube position in the entire column
Optional: Laminated barrel insulation device
Optional: barrel internal mixing device
Optional: multicolor filling system
Optional: less than 3ml / branch dedicated filling device
Optional: automatic feeding pump
Specification:
Product name |
filling sealing machine |
Productivity |
80-100pcs/min |
Filling volume |
2-200 ml(customized) |
Tube diameter |
11-35mm(customized) |
Tube length |
50-200mm(customized) |
Max power |
1.5kw |
Water consumption |
0 |
Machine weight |
About 1300kg |
Dimension(L*W*H) |
2150×1100×2100mm |
Warranty
Offer 12 months maintenance period to the problem that caused by our design, manufacture
and the material quality, and offer the relevant parts and effective service for free for above
reason. We will offer a widely and favorable technical support, after service all the time
after guarantee period.
Shang hai shen hu Machinery Co., Ltd. is located in shanghai. We are specialized
in manufacturing tube filling and sealing equipments for more than 10 years.
The automatic tube filling machine HTGF series we manufactured are well known in
China.Many trading companies order from us export to their customers. We provide
high quality machines with life-long aftersale service.
Warmly welcome you to visit us!
If there is any confusion, please feel free to contact us.
