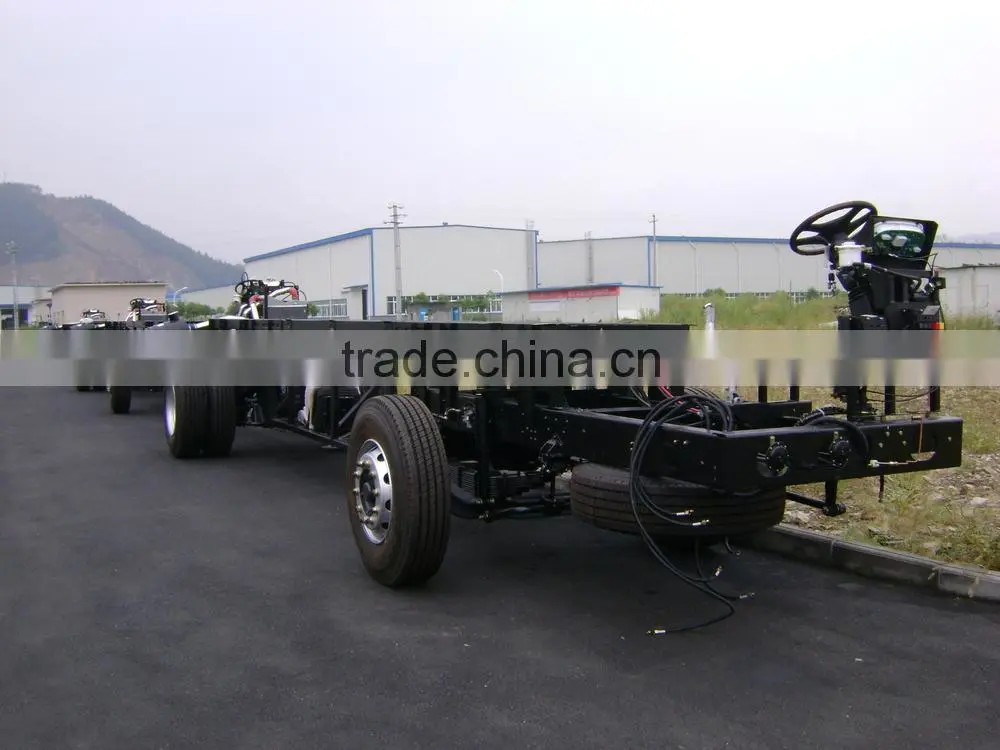

Dongfeng EQ6110KR tourist bus chassis specification
Chassis model:EQ6110KR |
Chassis structure: |
vehicle: |
Use for:highway passenger transport |
||||||||||
Chassis parameter |
dimension (mm) |
Overall dimension:11500×2462 |
Rear axle (kg) |
|
|
||||||||
wheelbase:6200 |
|
|
|||||||||||
Wheel span front/rear:2030/1860 |
model: |
manufacturer |
|||||||||||
suspension:2100/3200 |
type:Impulse welding axle housing |
Dongfeng Dana axle |
|||||||||||
Frame on the flat ground clearance: fully loaded, front axle center of the 920mm |
Maximum load weight:11000 |
||||||||||||
Approach angle: 14°; departure angle: 9° |
speed ratio: |
Axle case section:158*158 |
|||||||||||
|
Weight parameter (kg) |
Curb weight |
5400 |
Front axle (kg) |
model: |
manufacturer |
||||||||
Total weight |
17000 |
Type:I-beam forged steel |
Dongfeng Dana axle |
||||||||||
feature |
Top speed(Km/h) |
100 |
Load weight:6500 |
||||||||||
max climbing ability |
30 |
|
|
||||||||||

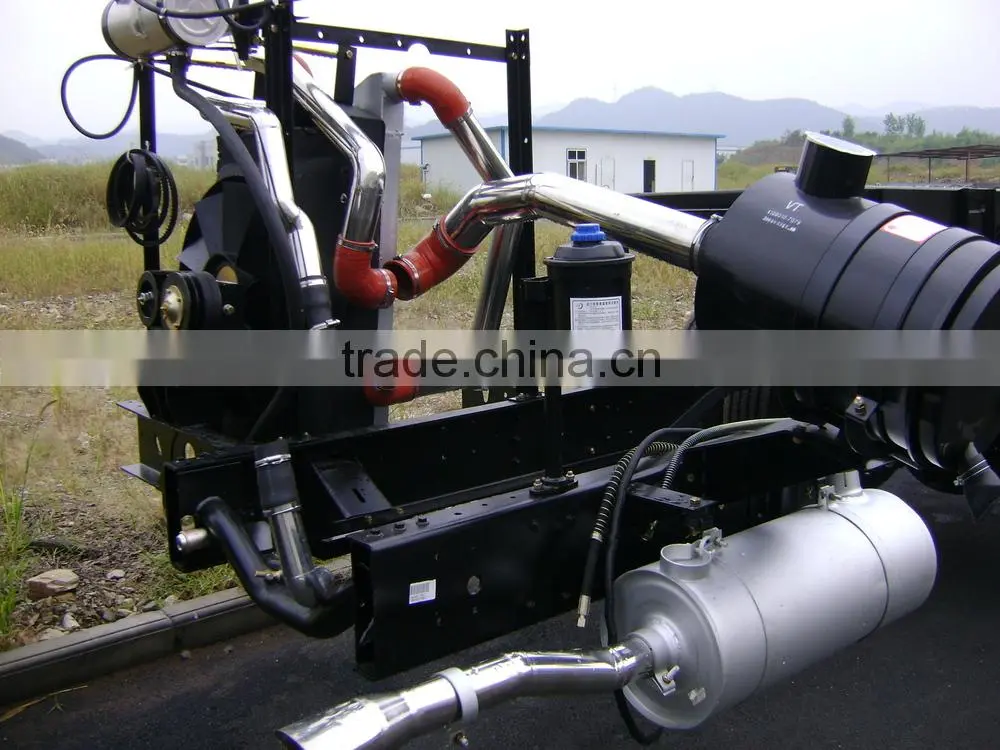

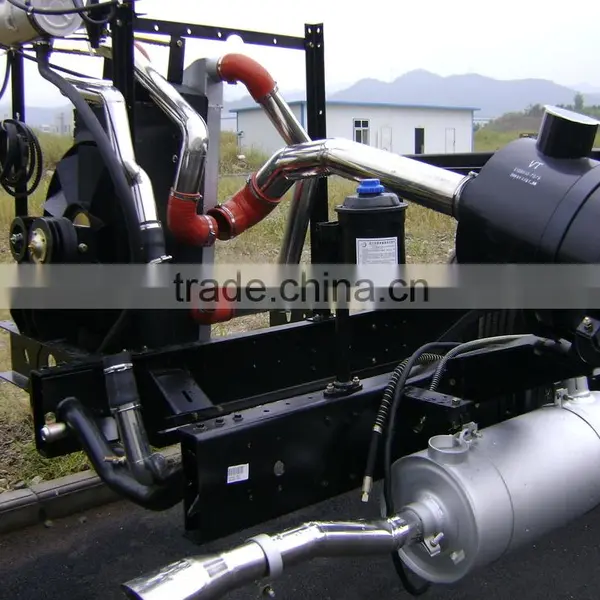

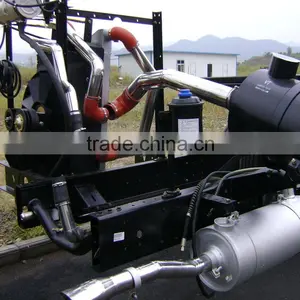

engine |
model |
YC6L280-20 Euro II/III |
manufacturer |
Yuchai diesel engine |
fuel |
Fuel tank number:1 |
Capacity (L):280 |
||||||
Fuel sort: diesel |
Rear engine |
Fuel tank position:in the chassis middle |
|||||||||||
Rated power(Kw/rpm):207Kw/2300r/min |
|
||||||||||||
Max touque(N.m/rpm):950N·m/1400-1600r/min |
dynamo |
28V 150A |
|||||||||||
Flameout:electric control | |||||||||||||
|
Idle Lifting Device: Yes, electronically controlled pneumatic Type: Single dry type diaphragm spring |
Water tank |
Copper water tank |
|||||||||||

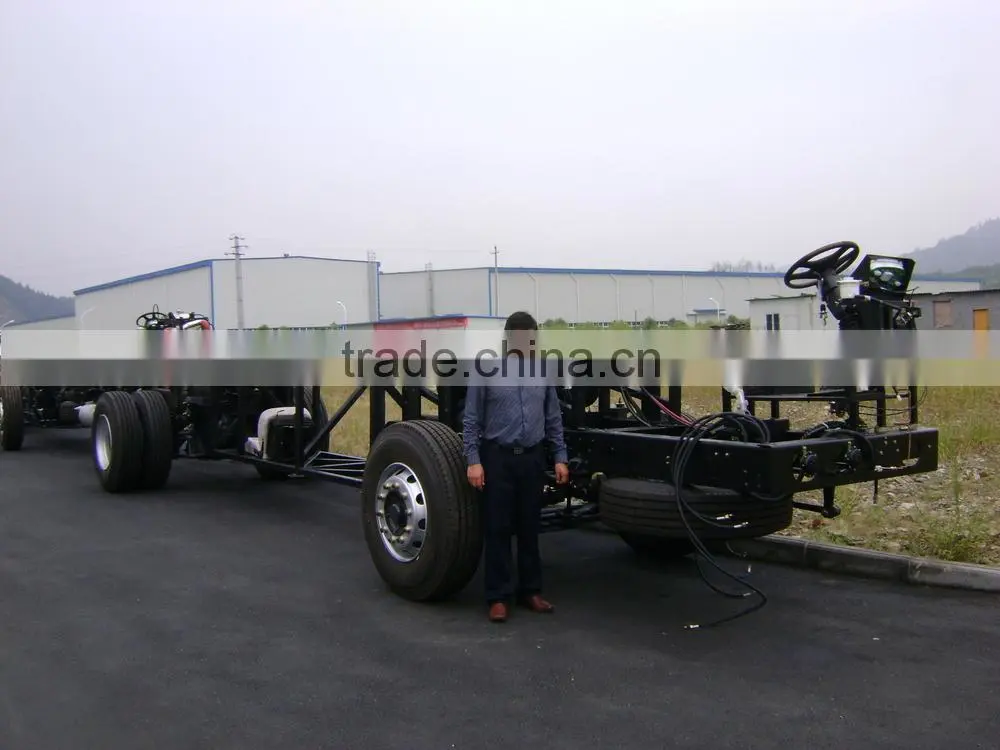

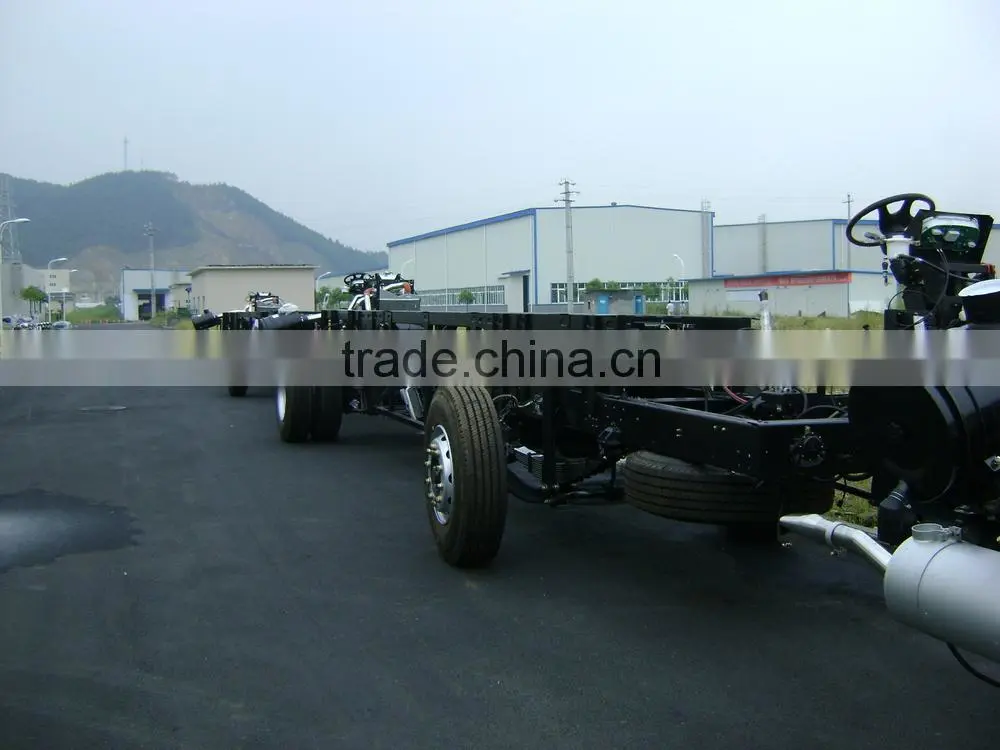

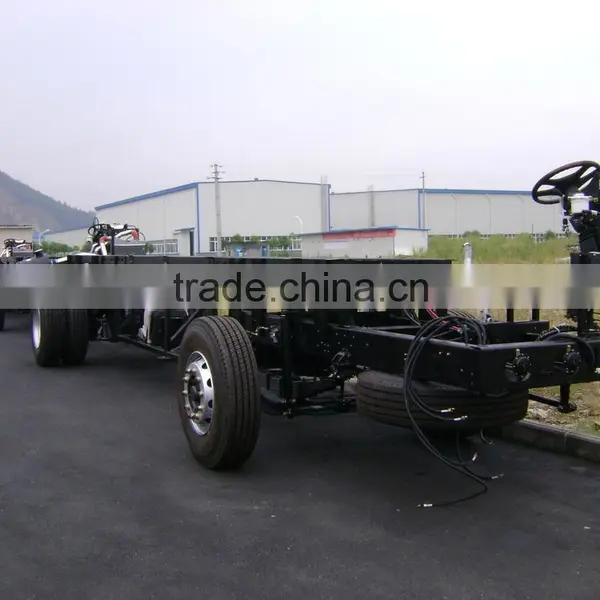

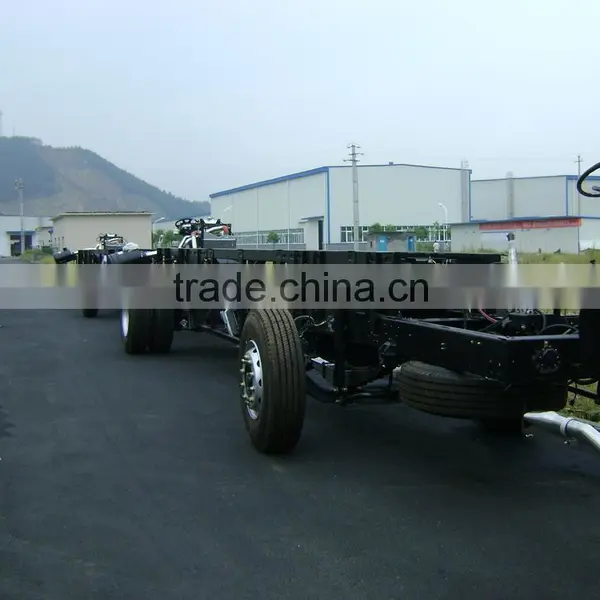

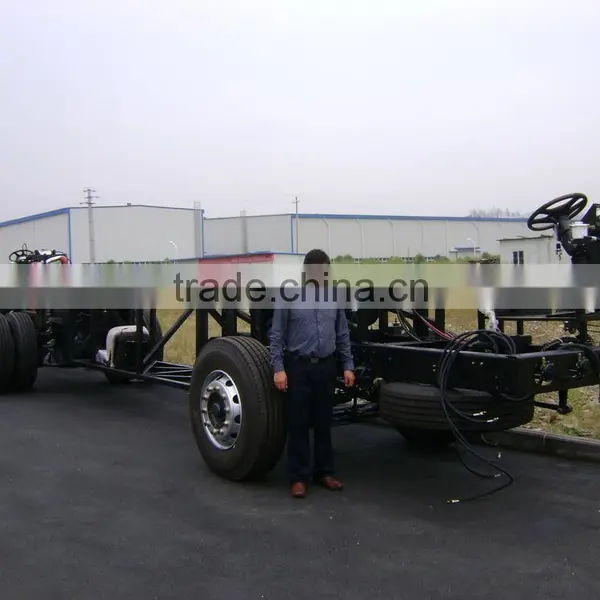

chassis |
Chassis Frame Type: Truss |
||||||||||||
clutch |
Chassis External frame width: 860; section size: 250 * 80 * 7 |
||||||||||||
Friction-chip diameter: 430 diaphragm spring clutch |
tyre |
Tyre specification:11.00R20-16RP |
number |
7 pcs |
|||||||||
assistance Type: air |
Spare tire hoist:with |
||||||||||||
transmission |
model |
QJS6-90 |
manufacturer |
ZF Manual |
brake |
Brake: Air brake |
|||||||
type:manual 6 speed |
Maximum input torque(N.m):1200 |
Parking brake: spring energy storage |
|||||||||||
Control mode: Soft operation |
Auxiliary brake: Exhaust brake |
||||||||||||
Brake drum diameter (mm): 400/410 | |||||||||||||
Odometer: electric sensor type |
Front / Back shoe film width: 150/220 |
||||||||||||
With ABS, with self-adjusting arm | |||||||||||||
suspension |
Air suspension |

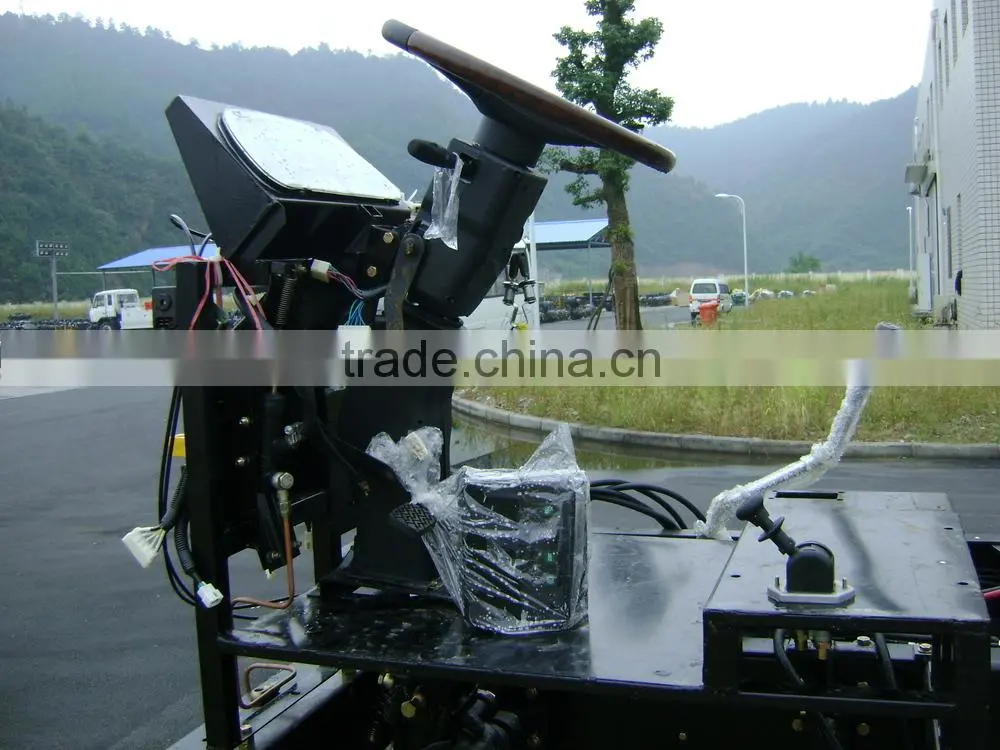

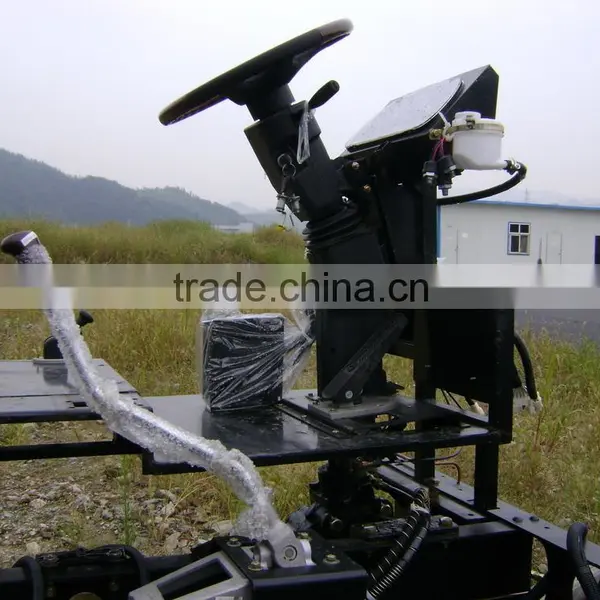

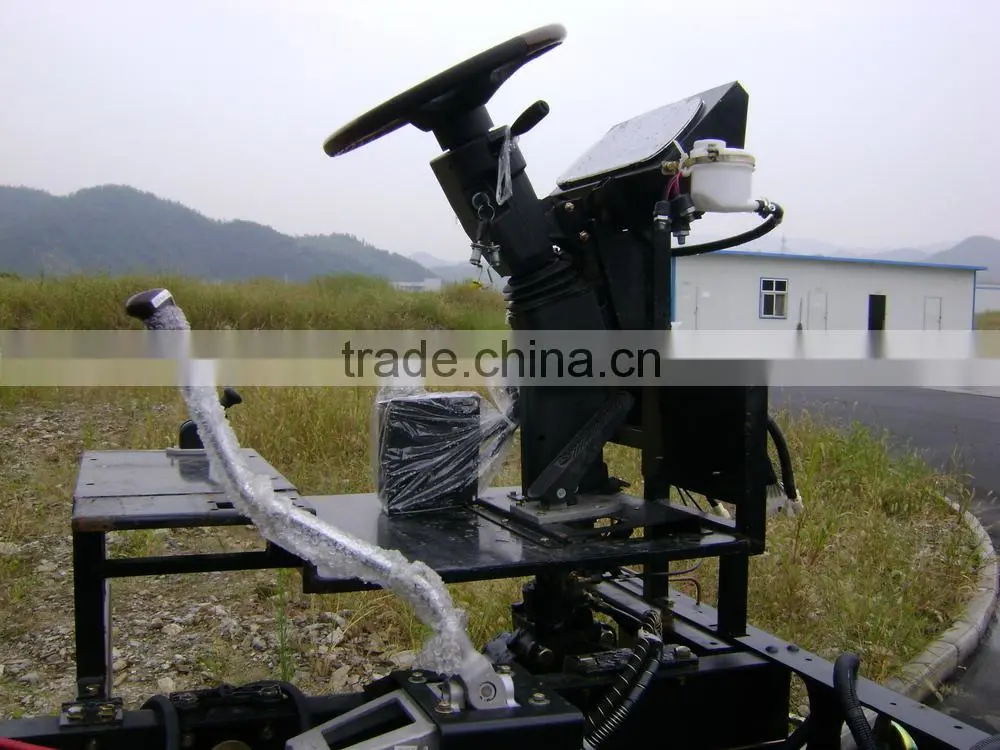

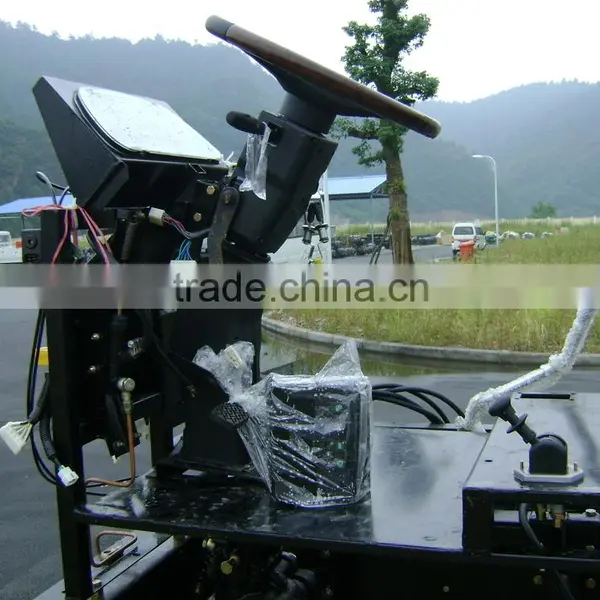

steering |
model: |
Power steering |
|||||||||
|
|
||||||||||||
| |||||||||||||
The direction of Rod: Adjustable |
Steering wheel: 480 |
||||||||||||
electrical equipments |
allocate: battery box, battery, power switch, electric horn, reverse alarm, chassis wiring harness, instruments and driving units can run up to the state (according to export chassis standard) |
||||||||||||
The other |
with retarder, ABS |
||||||||||||
