Product Name: Bottle Powder Packing Line/Powder Packing Machine For Bottles

Description:

Bottle Powder Packing Line/Powder Packing Machine For Bottles

Introduction:

This line is  consists of powder bottle filling and capping machine, bottle feeding machine, bottle cover feeding machine,  Unscrambler,  Vertical sticker labeling machine,

Stainless steel spiral elevator,  Elevator.

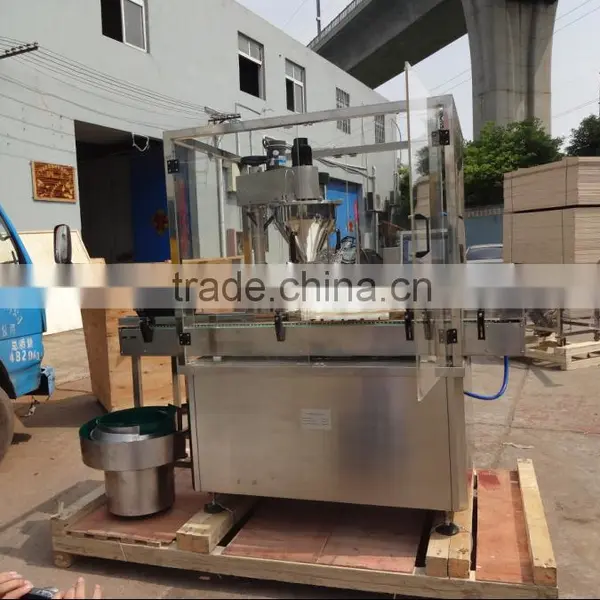

Filling and Capping Machine

The machine is in the digestion and absorption of advanced technologies in Germany on the basis of self-developed by our factory, is a leading international current, the new automatic powder filling, tamponade, spin (rolling) cover of the device. The machine adopts the disc positioning filling, automatic cover, cap, stable and reliable, accuracy up to 99% of the whole machine adopts Japan imported high-precision closed-cam indexing station, high precision, reliable service life long. The simple indexing structure, long-term use without maintenance.

The machine is suitable for all kinds of powder filling, tamponade and spin (rolling) cover, such as collagen, penicillin powder, Bingpeng so on. Widely used in food, pharmaceutical, chemical industry and scientific research. The machine adopts the advanced metering screw, according to the customer's production requirements, design of a single-screw or twin-screw filling. Machine including transmission parts, screw filling parts, stopper components, parts and other processing plug cap management, compact structure, reasonable design, and smooth operation, long life, exchange specifications so that no tool disassembly for easy maintenance. The machine can produce stand-alone, but also the composition of joint production line and washing machine, dryer and other equipment. Pharmaceutical GMP is one of the ideal equipment to achieve the transformation and modernization of production. The machine can be configured according to customer requirements to upgrade the electrical.

The machine can configuration bottle feeding machine and  Output Machine can be a machines line. Easy to operation.

Features:

1.  Interactive interface settings, intuitive and easy to operate, high precision.

2.  Frequency control, the production rate of arbitrary regulation, automatic counting.

3.  Automatic shutdown feature, no bottle no filling.

4.  Single track into the bottle, tracking cap, suitable for all kinds of bottles.

5.  Full SUS304 stainless steel, in full compliance with GMP requirements.

Technical Parameters:

Bottle Powder Packing Line/Powder Packing Machine For Bottles

Vertical sticker labeling machine

Brief introduction

The vertical sticker labeling machine is mainly used for round bottle. The bottle are transported to labeling machine and sub-bottle structure.

When the photoelectric discover the bottles ,it will out of labels and labels. It has the function: no bottle don’t label.

Man equip it with printer, while labeling the machine can print the  production batch number,

date and so on.

The stepper motor and touch screen control the labeling machine. The labeling precision is high, the error is very small. The machine is suitable for many specifications when adjust some parts.

Technical Parameters

Bottle Powder Packing Line/Powder Packing Machine For Bottles

Stainless steel spiral elevator

Brief introduction

Stainless steel spiral elevator is mainly used for conveying powder, granular and small bulk materials,

such as pesticides, veterinary drugs, seasonings, additives, chemicals, etc., spiral elevator unsuitable

transport perishable, highly viscous the easy caking materials.

Rotating spiral blades passage for conveying the material,material does not rotate together with spiral lifter blades. Force is the material of its own weight and the frictional resistance of the spiral lifter casing to the

material. Spiral lifter rotating shaft is welded by spiral blade, blade face based on different delivery of

materials has solid surface type, belt type face, leaves and other types of face. Spiral elevator screw shaft

on the direction of movement of the material has a terminal stop pushing bearing, when spiral longer, should be added to intermediate hanger bearings. stainless steel spiral elevator r with vibrating motor, feeding more smoothly;

 Bottle Powder Packing Line/Powder Packing Machine For Bottles

Stainless steel spiral elevator technical parameters

1. Conveyor Height: 1650mm (special requirements can be customized)

 2. Power: AC380V 50HZ.1.5KW

 3. Weight: 120kg

4. Capacity: 20kg

 5. Throughput: 3m3 / h

Bottle Powder Packing Line/Powder Packing Machine For Bottles

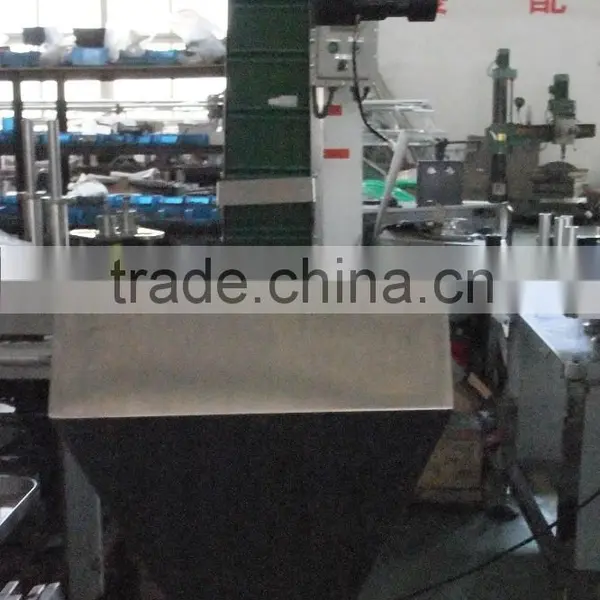

Elevator

Brief introduction:

Pour the caps disorganized into elevator hopper, then they go on special track and are hanged on bottles.

Machine appearance made from 304 stainless steel appearance, POM plastic conveyor belt used in Japan.

Main technical data

  Bottle Size: diameter:140mm

  Production Capacity: 30-60 bottles / min (depending on sample bottle specifications)

  Input Power: Single phase 220V

  Power: 1KW

  Compressed air: 0.3-0.4 MPa

  Dimensions: length × width × height (1000 × 800 × 2200) mm

  Weight: 300kg

Bottle Powder Packing Line/Powder Packing Machine For Bottles

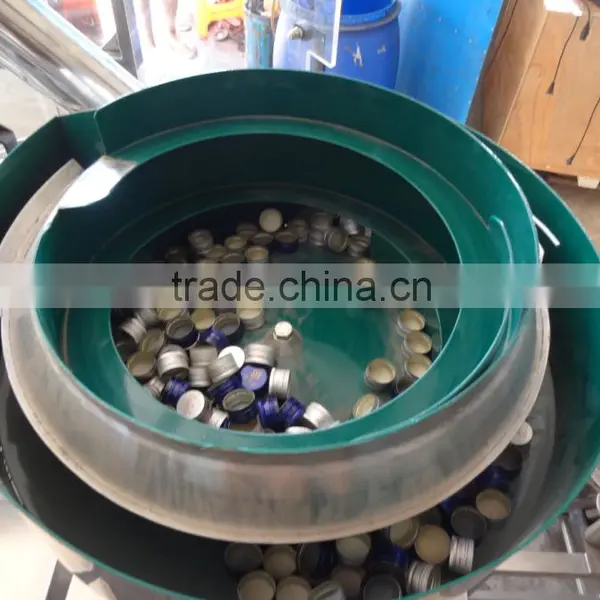

Cover arrangement:
