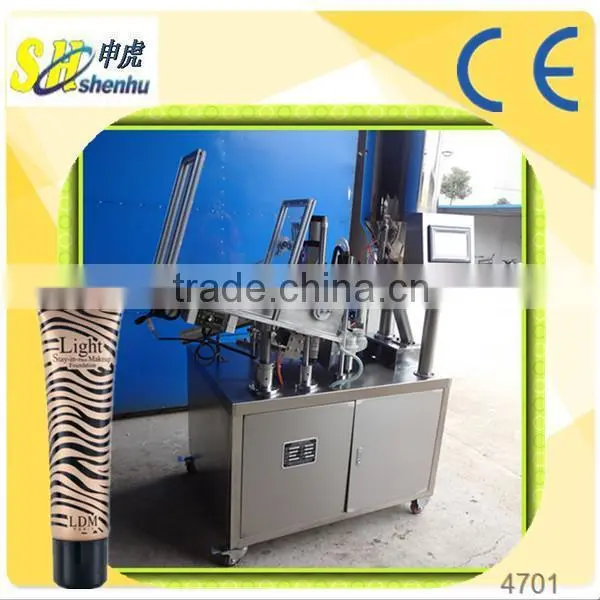

laminated cosmetic tube filler and sealer
Main Technical Parameters:
Product Name | laminated cosmetic tube filler and sealer |
Model | HTGF-50 |
Voltage | 380v/220v/50Hz |
Productivity | 30-50pcs/min |
Dimension | 1000*800*1600mm(L*W*H) |
Weight | 350kg |
Filling Volume | 3-250ml (change different molds) |
Tube Diameter | 10--50mm(change different molds) |
Power | 2.0KW -3.3KW |
Accuracy | ±1% |
Control | PLC control system |
Display | Touch screen display |
Feature | No tube no filling |
Detailed product introduction:

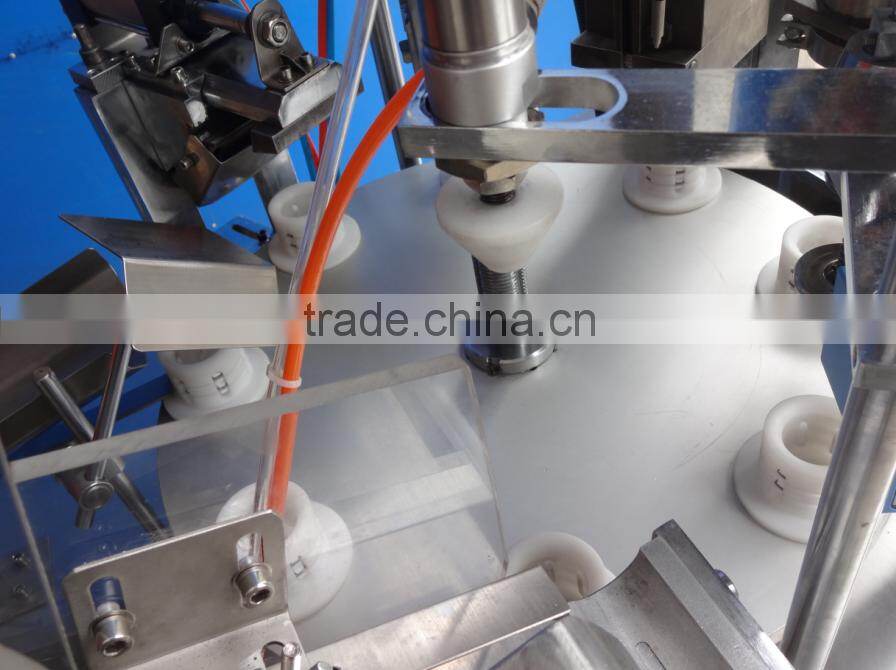

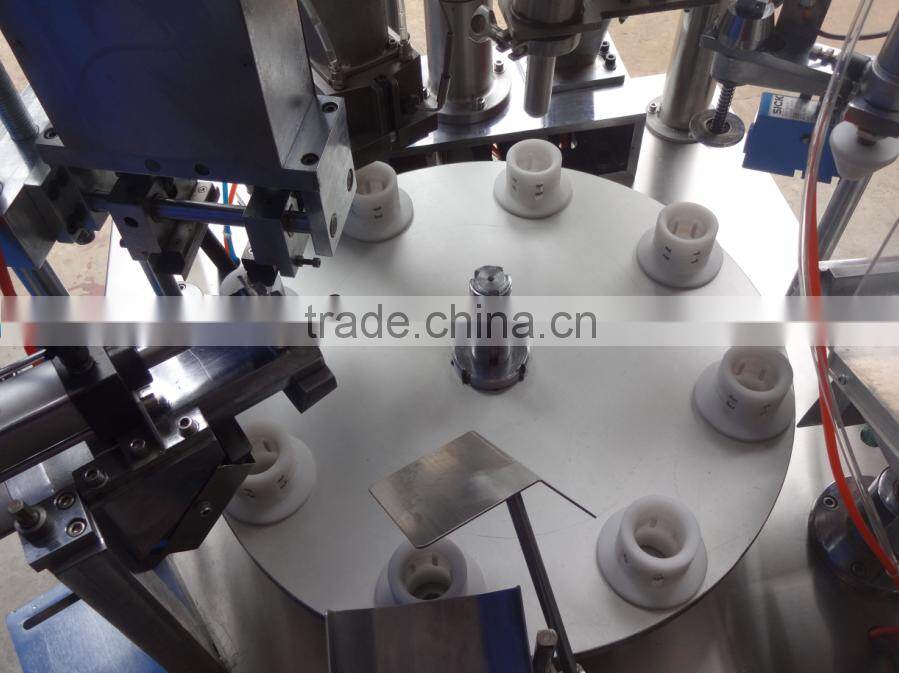

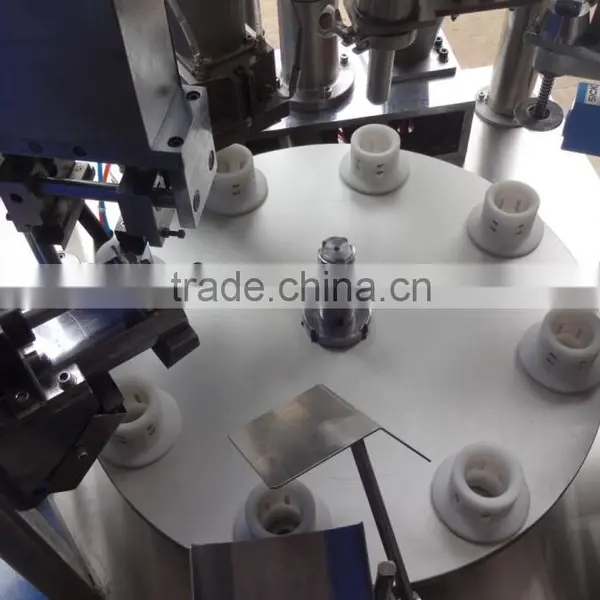

1. This is machine working plate, all function devices located on this plate, such as, mark location, filling head, heating device, sealing parts, tail cutting and output. It has 8 stations, the speed is about 25-30 tubes/min.

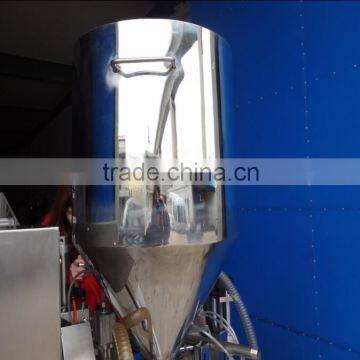

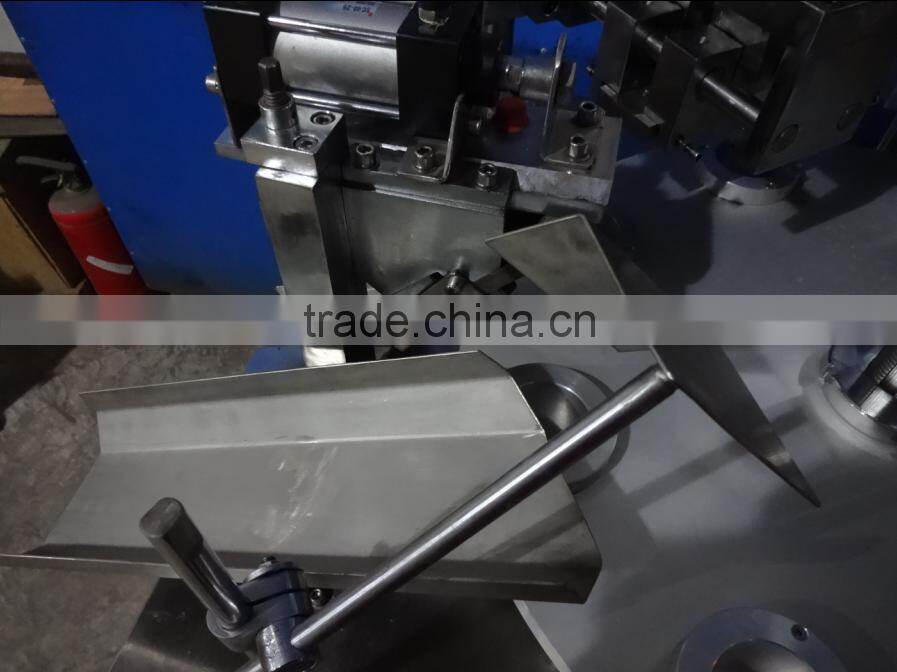

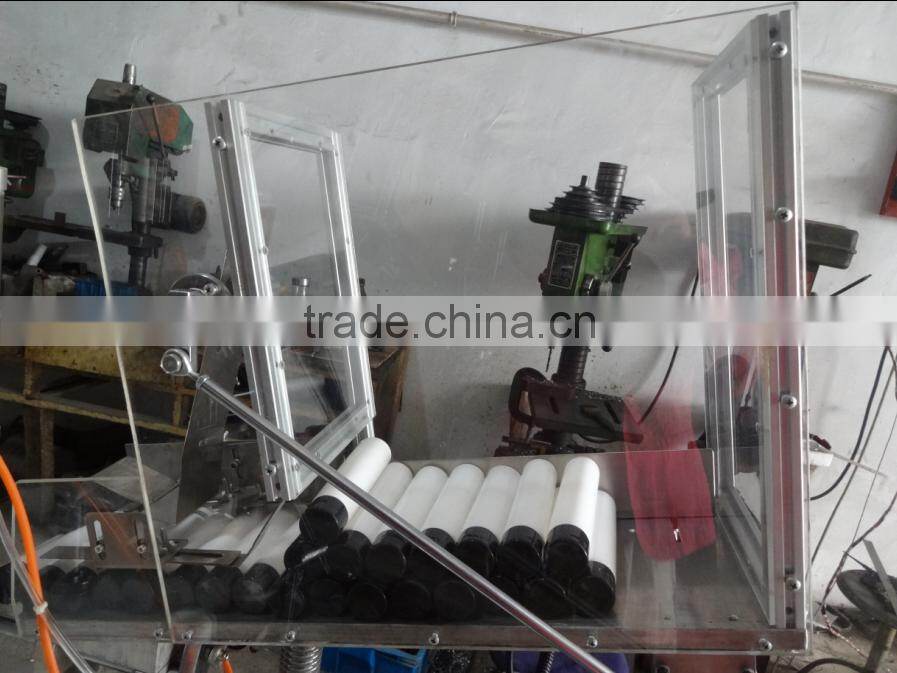

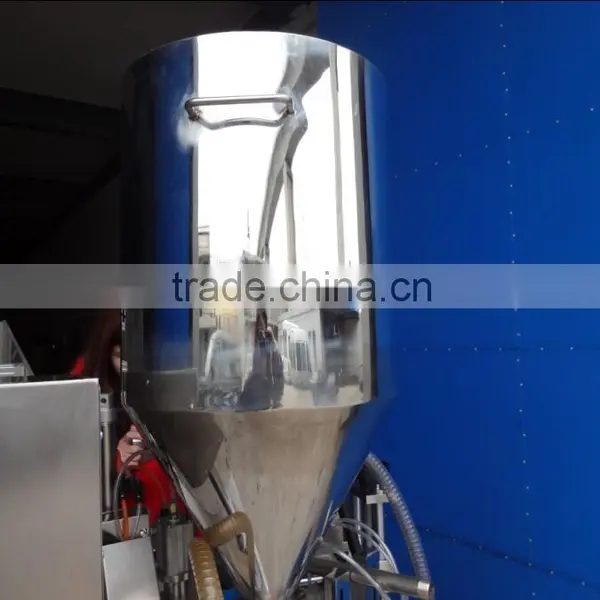

2. This is tubes container, you can put your empty tubes into this container, it will arrange tubes and feeding tubes into tube holder.

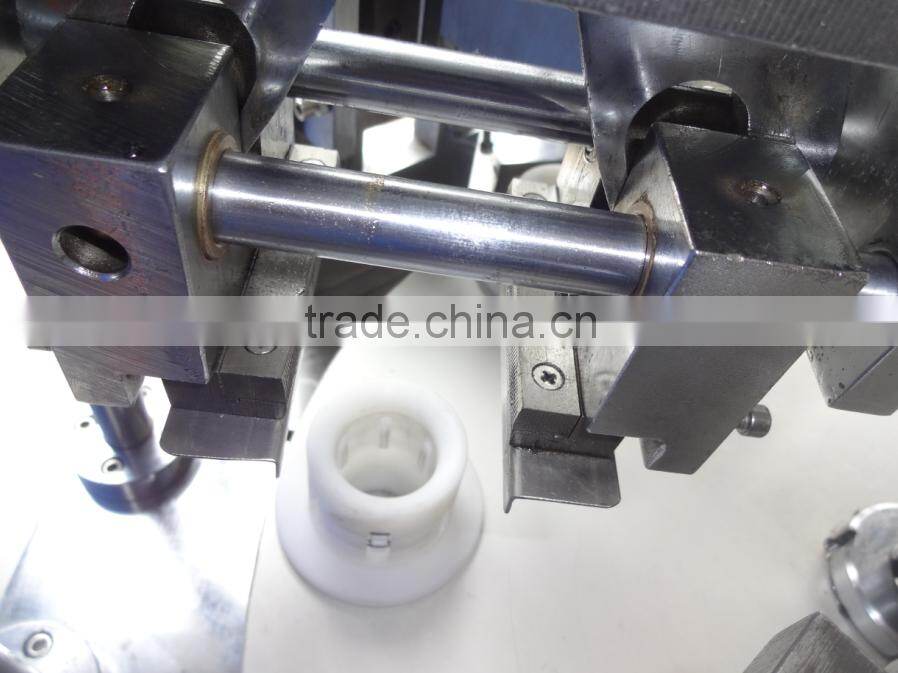

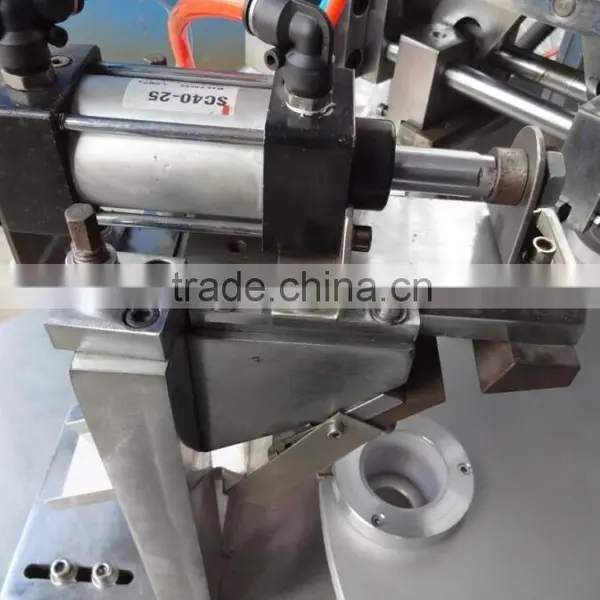

3. This is press tube device, tube will be updown into tube holder by tube feeding device, it will press tube into tube holder tightly.

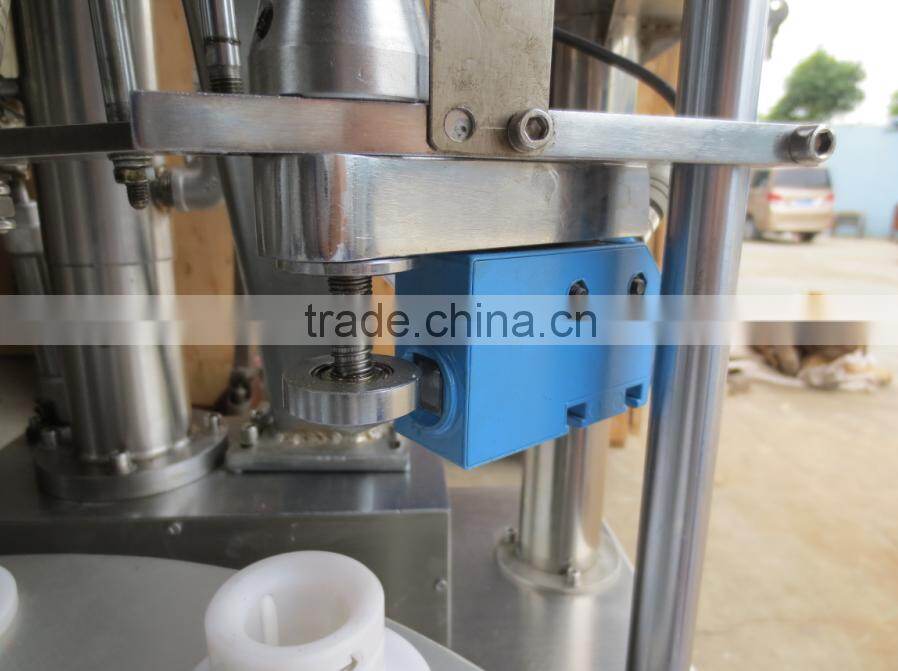

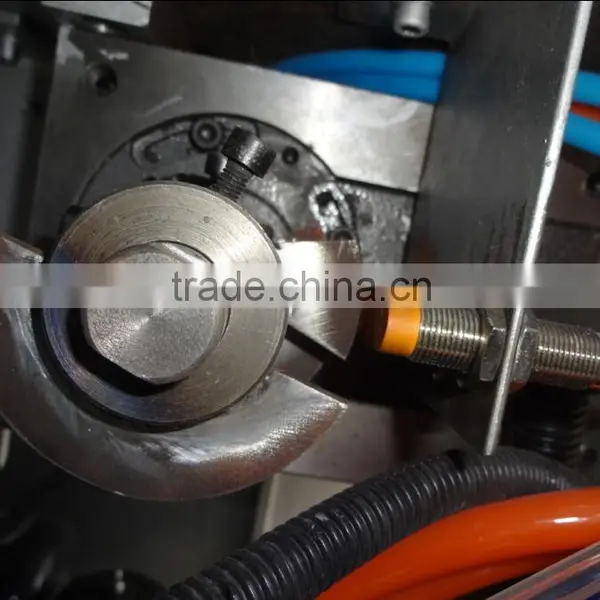

4. It is mark location, we use SICK brand, make sure high accuracy, so the sealing effect is perfect.

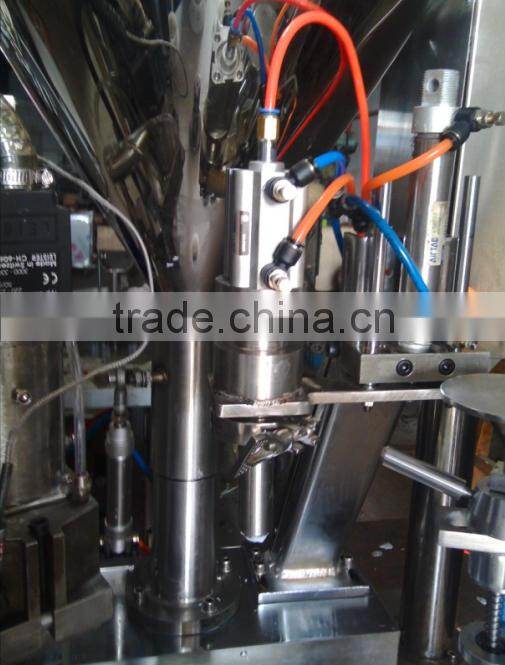

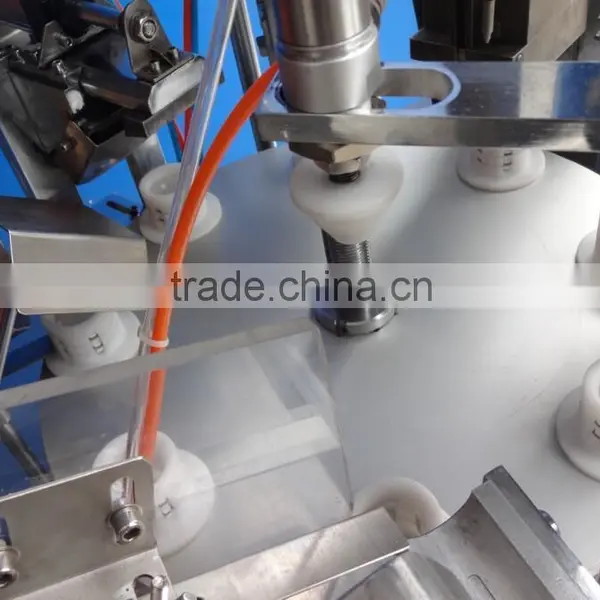

5. This is filling device, made of SS 304, it will be customized as SS 316 if you need. Our characteristic is anti-leak. It has a insert in the filling head, it can split, easy to clean. It has a plug, it will suck the filling head after filling, so this is no paste leak out. Also, it will flush air from the plug, and blow the tail.

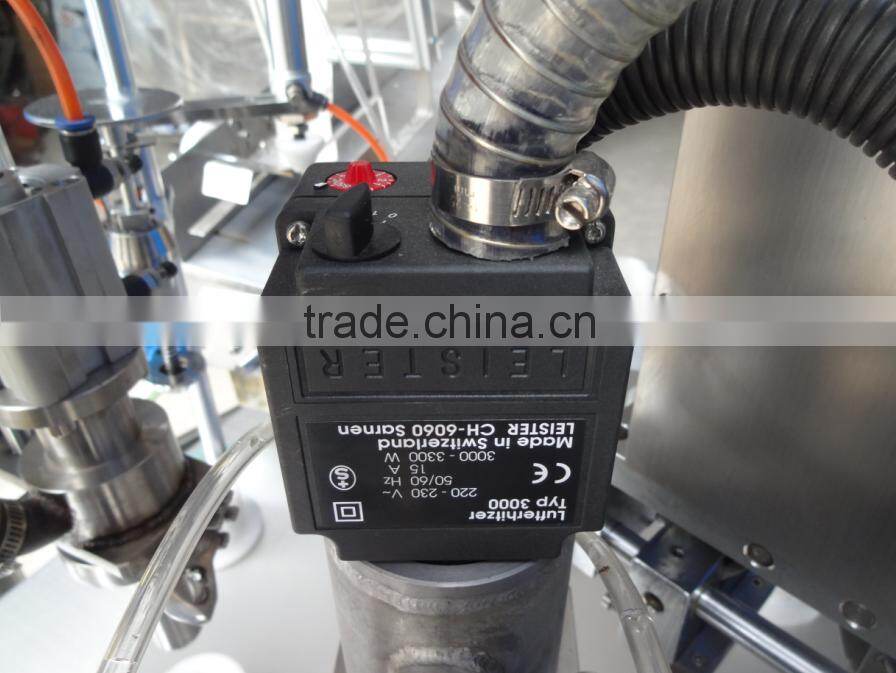

6. This is heating device. We us LEISTER brand, heating time is about 1 minute can reach up the setting temperature. The heating head and water-cooled ring also in it, make sure no damage for tubes, make sure good sealing.
7. This is sealing device. It will sealing tube after heating, also do date printing at same time. It can printing 0-9 numbers or A-Z characters, just as your requirements.

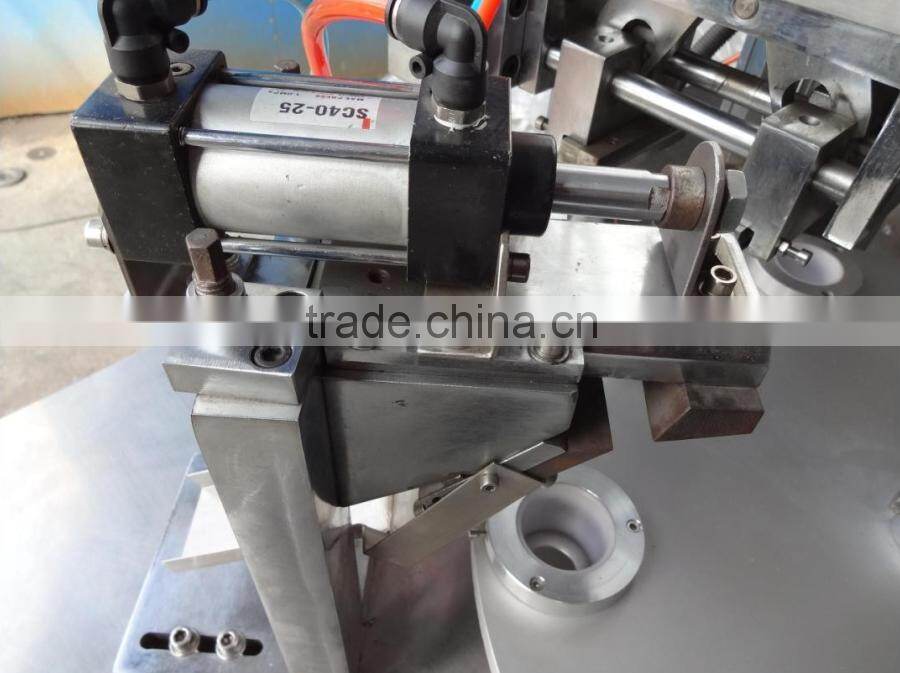

8. It is cutting device. It will cut the extra tube tail. Use cylinder control, shape knife, make sure tail flat and nice.
This is output device. Your product will be output one by one from this device.
9. Samples:
Standard Export Wooden Case
By Sea. Depend on your requirements.
Packing picture:
Terms:
1. Original: made in China
2. Package: wooden case.
3. Loading port: Shanghai
4. Payment terms: 50% deposit with the order, 50% balance before shipment.
5. Delivery time: 30 days after receiving deposit and samples
6. Guarantee: 1 year
7. Installation: We can send one technician to buyer's factory to install machine and train their worker. The buyer has to pay USD80 per day for the technician as subsidy. All the expense, such as visa, round trip tickets, and accommodation should be born by buyer.
8. Remark: If you have special demand of some parts like motor, cylinder, control panel, filling, material, conveyor, collect table, plexiglass cover and others, please tell us.

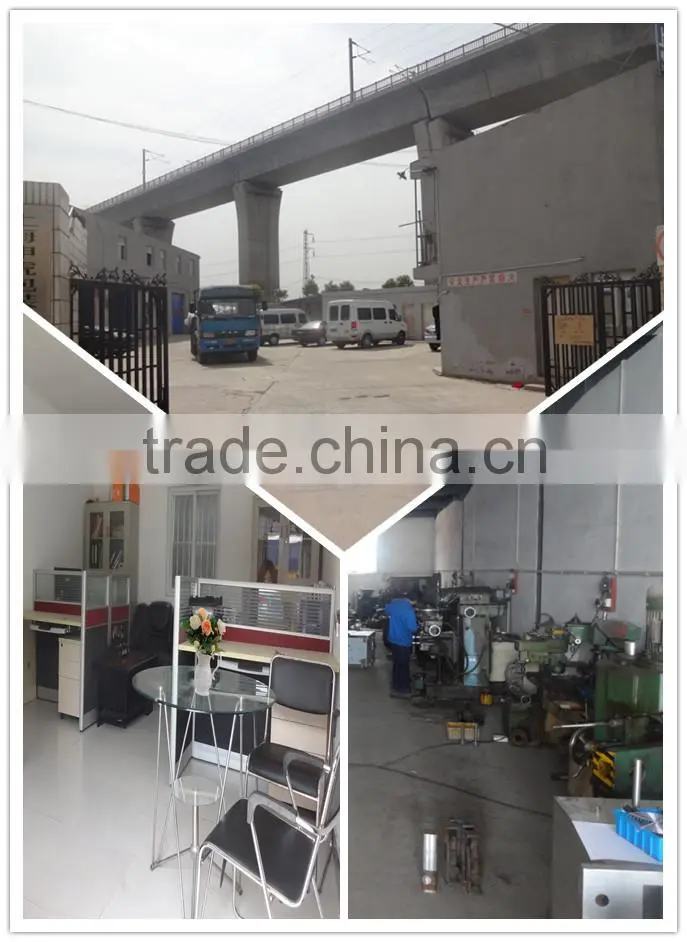

Factory Preview:
