shanghai soft tube filling and sealing machines
Profile
Incorporated in the year 2008, Shanghai Shenhu Packaging Machinery Equipment Co.,Ldt is a medium size manufacturer and exporter with a wide range of precision machineries, which located in Shanghai, Jiading.
Our range of products includes tube(cream) filling machines, bottle(liquid) filling machines, cup filling machines,food packing machines, carton machine, vacuum packing machine, sealers and cappers etc.
shanghai soft tube filling and sealing machines
Thank you for your visiting, our company is specialized in producing various soft tube,
plastic tube, composite tube, aluminum tube filling and sealing machine, suitable to a variety of toothpaste, cosmetics, skin care products,protective creams, ointments and other paste filling .
My company has a variety of tubes filling and sealing machine, high-speed,
automatic, semi-automatic, rotary, reciprocating, plastic bubes, Aluminum tubes,
internal heating, external heating and other filling and sealing machine, for the diameter of 10 -50mm, filling range is 3-250ml.
Also, we have cup filling and sealing machine for liquid or semi-liquid, such as milk, juice, soymilk, jelly, yogurt and so on. Also, we have cup filling and sealing for powder, such as, coffee, milk, soybean and so on. For k-cup coffee and nespresso coffee capsule.
For cartoning packing machine, it is use forpacking food, medicine, daily necessities,
cosmetics, health products and other items.
Carton forming open under suction, articles automatically loaded in the paper tray, spray sealed box.
shanghai soft tube filling and sealing machines
Product Name: shanghai soft tube filling and sealing machines
Description:
Item |
Heat sealing |
Voltage |
220V/380v/50Hz/60Hz |
Productivity |
50pcs/min |
Filling volume |
3-250 ml(customized) |
Tube diameter |
11-50mm(customized) |
Tube length |
50-200mm(customized) |
Max power |
7.5KW |
Water consumption |
3-6L/min |
Machine weight |
About 800kg |
Dimension(L*W*H) |
1500×1200×1500mm |
shanghai soft tube filling and sealing machines
Main description:
Use rotary piston way, filling precision, using light point control, heated sealing all work with high precision cylinder full stroke control, easy to adjust filling volume, the filling speed can
be adjusted. It applies to all kinds of composite tubes, plastic pipe and metal pipe filling and sealing, date printing, cut the tail. Sealing neat appearance, sealing strong, high accuracy,
good stability. According to the different material properties, Optional ingredients bucket
heating system, anti-leak filling head, Machine adopts imported PLC control, import the
original frequency control, pneumatic components using (AIRTAC), import original (SICK) photoelectric sensors, high stability, imported hot air flow meter and the formation of hot air heating system.
shanghai soft tube filling and sealing machines
Packaging materials and filling materials Scope:
1) soft tube, plastic pipe, composite pipe.
2) ointment, cream, gel viscosity fluids agents.
shanghai soft tube filling and sealing machines
Applicable industries:
Cosmetics, light industry (household chemicals), pharmaceutical, food and other industries
for enterprise product selection to the hose for the packaging container, the device suitable
for ointments, creams, gels or viscosity fluid filling, and then sealing the hose tail and print
code, the system produces the finished product.
Soft tube filling and sealing machine is mainly used for the packaging containers of plastic hose material quantitative filling, sealing, this machine is widely used in pharmaceutical,
cosmetic, food, chemical and other industries packaging. Such as ointments, gels, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste
filling and sealing materials.
shanghai soft tube filling and sealing machines
work procedure:
Automatic tube feeding→ tube position (hose container) → automatic identification label
located on pipe → → filling quantity control test + + [hose internal cleansing (option)] → → filling → heating the tube (inner heating for plastic tube, outer heating for compound tube) → tail shaping and sealing → tail cutting → Print → finished discharge code
shanghai soft tube filling and sealing machines
Optional accessories:
Optional: external chiller system, water cooler
Optional: Laminated barrel insulation device
Optional: barrel internal mixing device
Optional: Alien sealing device (wave-shaped sealing device; arc-shaped sealing device; T-type punching and sealing devices, etc.)
Optional: multicolor filling system
Optional: less than 3ml / branch dedicated filling device
Optional: automatic feeding pump
Optional: finished tube output conveyor
shanghai soft tube filling and sealing machines
Specification:
Item |
Heat sealing |
Voltage |
220V/380v/50Hz/60Hz |
Productivity |
50pcs/min |
Filling volume |
3-250 ml(customized) |
Tube diameter |
11-50mm(customized) |
Tube length |
50-200mm(customized) |
Max power |
7.5KW |
Water consumption |
3-6L/min |
Machine weight |
About 800kg |
Dimension(L*W*H) |
1500×1200×1500mm |
shanghai soft tube filling and sealing machines

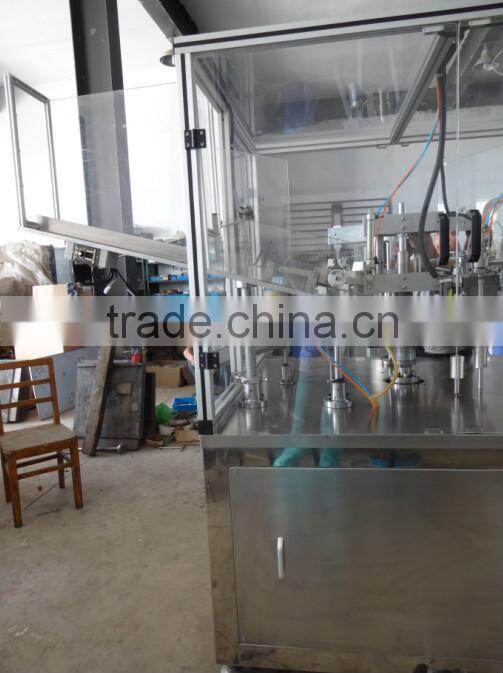

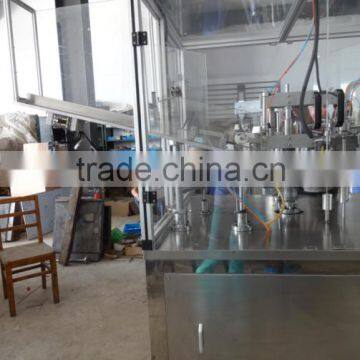

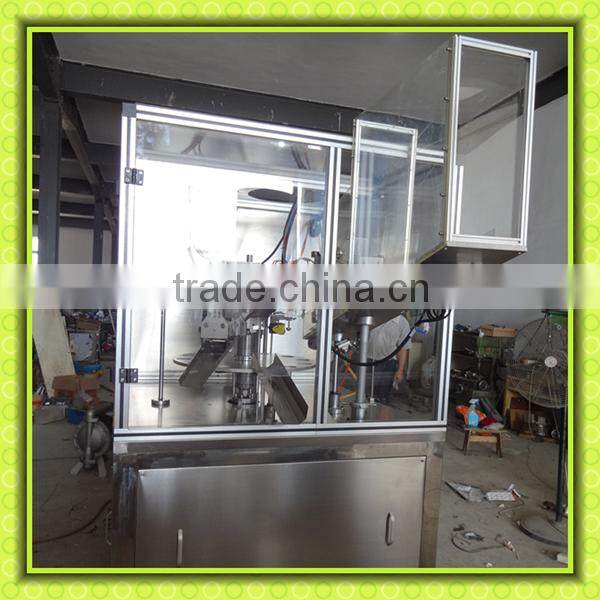

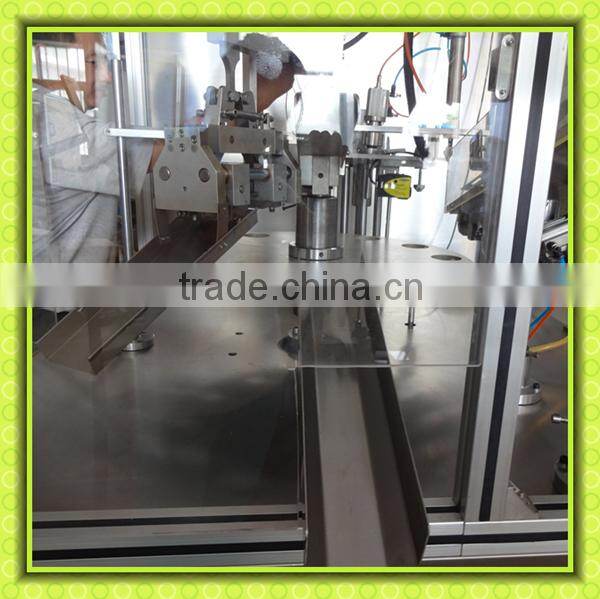

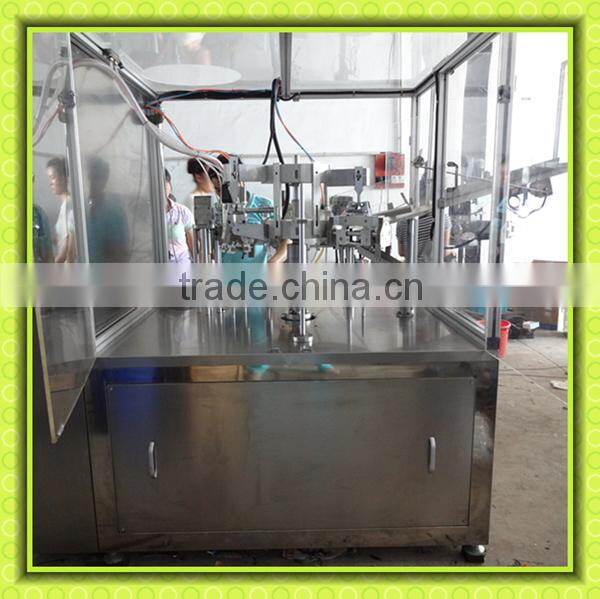

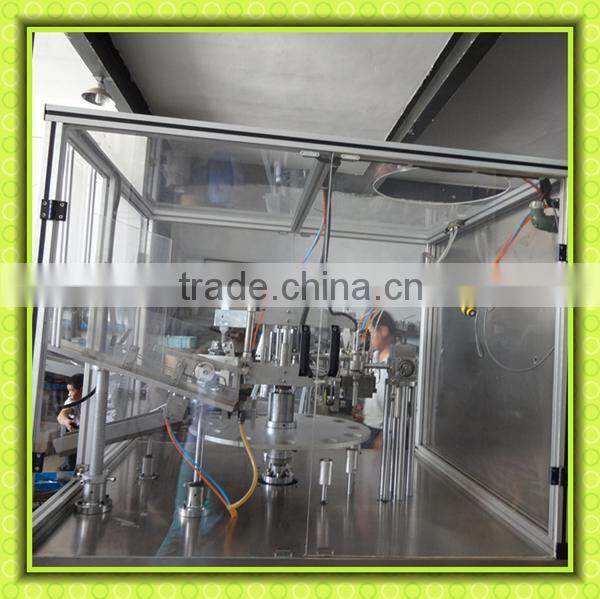

Machine Pictures:

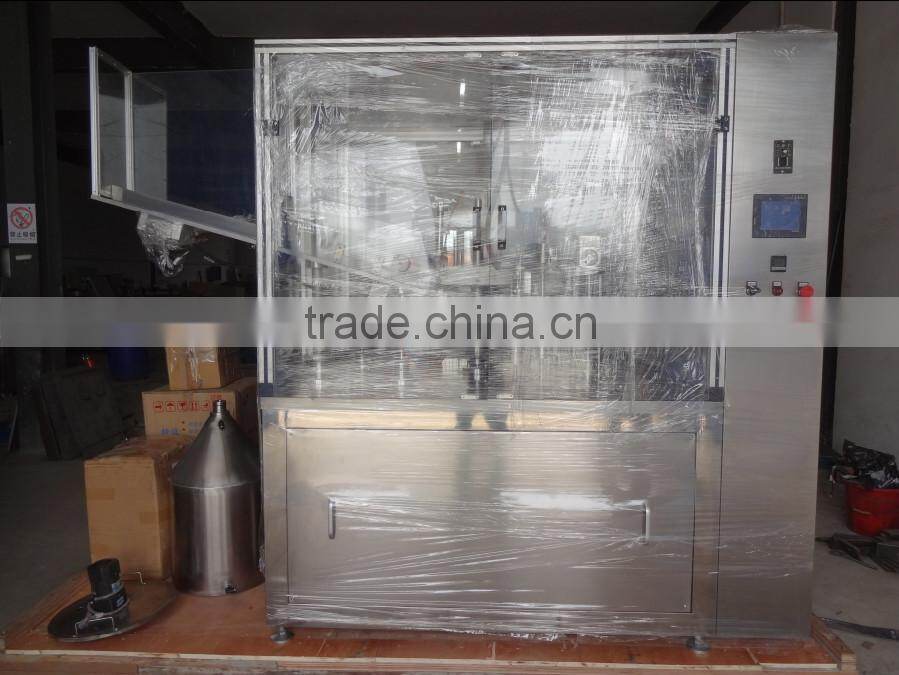

Shipping By Sea
shanghai soft tube filling and sealing machines

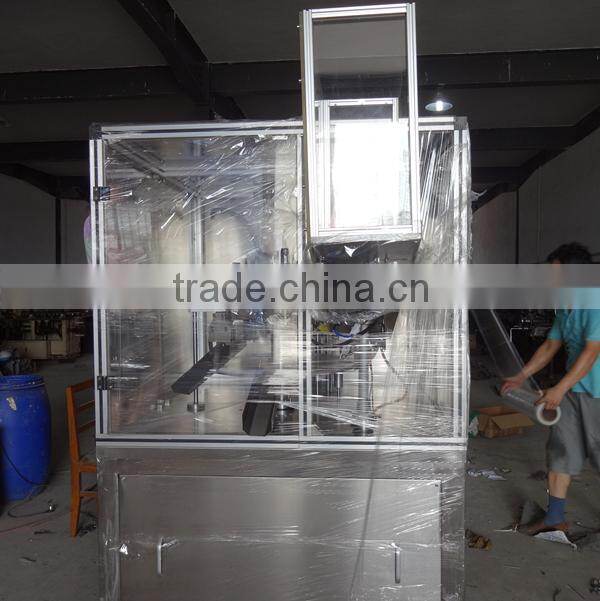

Packaging:
shanghai soft tube filling and sealing machines
Samples:
shanghai soft tube filling and sealing machines
Factory Preview:
shanghai soft tube filling and sealing machines
Cooperate Companies:
shanghai soft tube filling and sealing machines
Certificates:
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use a large number of 304 stainless steel.
4. Each machine use good quality electric elements.
5. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
6. The warranty time is one year.
Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
7. Beside the warranty days, we continue to provide life-long maintenance services.
8. Installation: We can send one technician to buyer's factory to install machine and train their worker. The buyer has to pay USD100 per day for the technician as subsidy. All the expense,
such as visa, round trip tickets, and accommodation should be born by buyer.
Terms:
1. Original: made in China
2. Package: wooden case.
3. Loading port: Shanghai
4. Payment terms: 50% deposit with the order, 50% balance before shipment.
5. Delivery time:45 days after receiving deposit and samples
6. Guarantee: 1 year
7. Remark: If you have special demand of some parts like motor, cylinder, control panel, filling, material, conveyor, collect table, plexiglass cover and others, please tell us.
