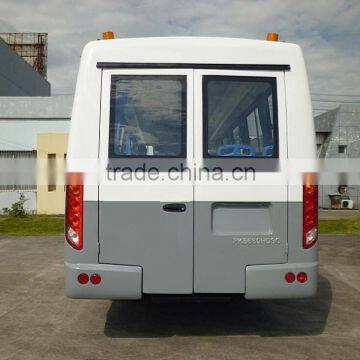

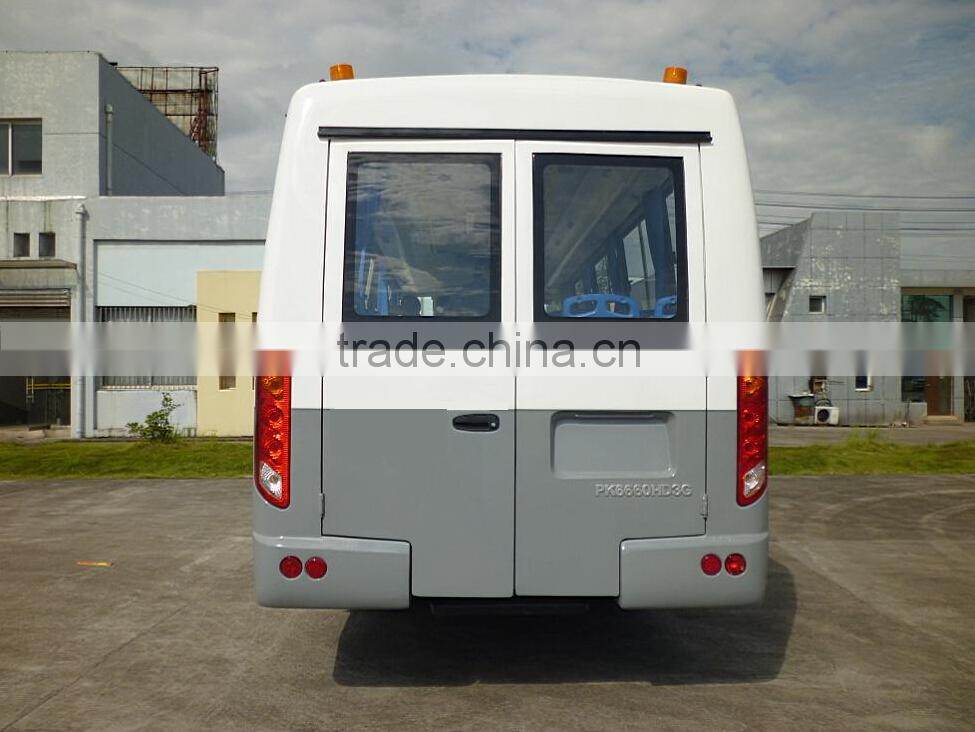

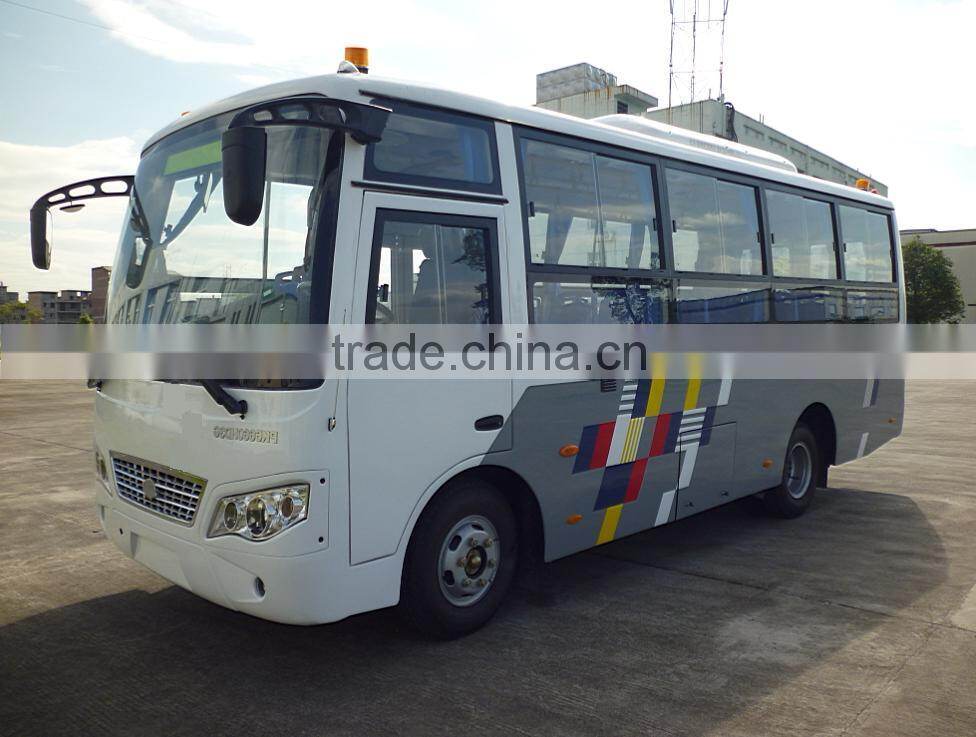

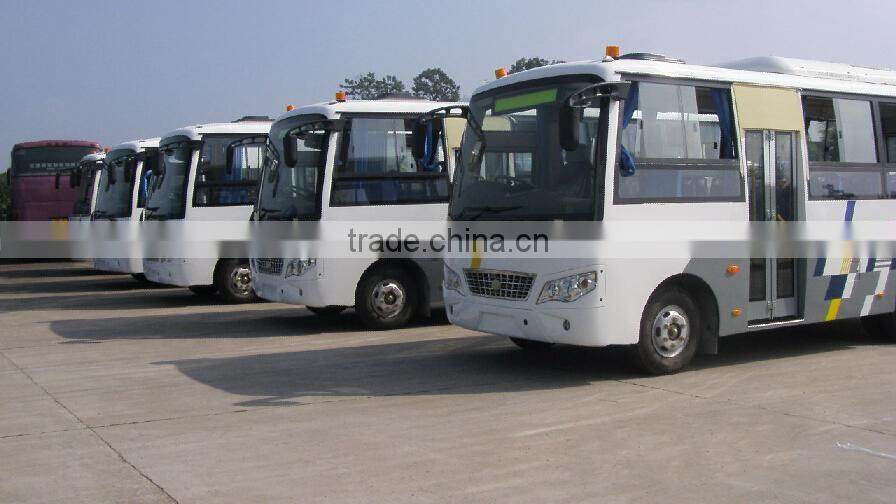

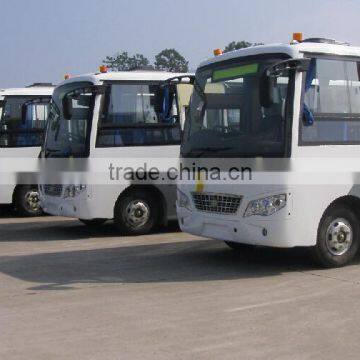

Anyuan PK6660HD3G 4x2 school bus
PK6660HD3G Technical Specification | |||||
Chassis Model |
HFC6640K3Y |
Bus Model |
PK6660HD3G |
||
|
Dimension
|
Length(mm) |
6598 |
Engine
|
Engine model |
YC4D130-30 |
Width(mm) |
2250 |
Fuel type |
Diesel Fuel |
||
Height(mm) |
2725,2895 |
Discharge standard |
Europe III |
||
Internal Heigh(mm) |
1930 |
Engine location |
Front location |
||
Wheelbase(mm) |
3500 |
Compression ratio |
-------- |
||
Tread(front/rear,mm) |
1830/1600 |
Maximum power(kw)/displacement(ml) |
96/4212 |
||
Front overhang/rear overhang(mm) |
990/1780 |
Max Torque |
380N.m
|
||
|
|
|
Fuel consumption(full load) |
205g/kW.h |
|
|
Minimum ground clearance(mm) |
165 |
Performance parameters
|
Fully-loading)braking distance |
9 |
|
Approach angle/departure angle(°) |
17/11 |
Fuel consumption limit condition |
15 |
||
Luggage room capacity(m3) |
no |
Max speed |
90 |
||
|
Quality parameters
|
Unladen mass(kg) |
3990,4100,4220 |
Gradeability largest |
30 |
|
MAX mass(kg) |
6700 |
Min turning Diameter |
8 |
||
Fully loading mass(front/rear,kg) |
/ |
Oil tank capacity |
90L |
||
Items |
body configuration |
||||
|
Chassis spec
|
Clutch |
Diaphragm spring,Driven plate diameter. |
|||
Transmission |
DongFeng manually operation transmission; |
||||
Front axles/rear axles |
DONGFENG Axles (Forged steel Material ) Axles load capacity :3000kgs |
||||
DONGFENG Axles,main reduction ratio 4.875,load capacity4500kgs | |||||
|
Suspension system
|
Both front and rear suspension assembly with Semi-elliptic multi-leaf springs(front 8/rear 10),Hydraulic Shock Absorber, Front Suspension with horizontal Stabilizer Bar |
||||
|
Steering system
|

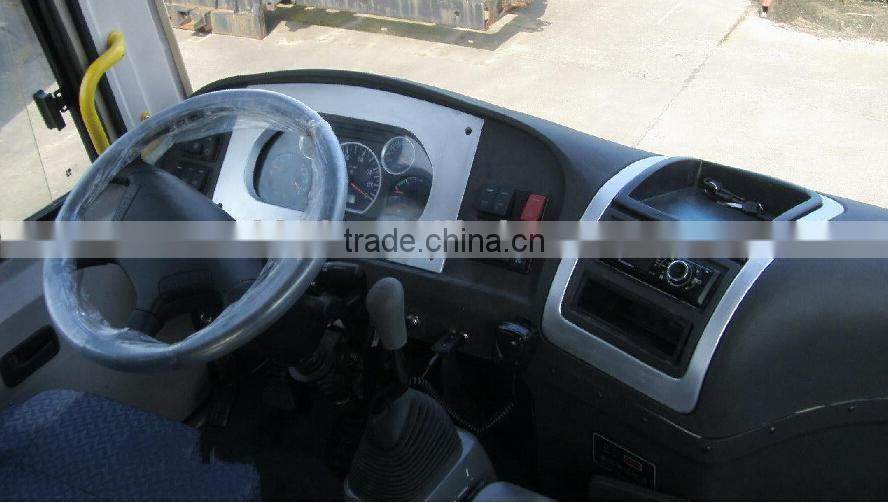

Power steering, Steering wheel position can be adjust |
||||
|
Braking system
|
Service brake:split braking system,drum brake(diameter 320mm,front width100mmrear width 120mm,Brake series, Dryer. |
||||
Parking braking:Energy storage spring brake ,Clutch Booster | |||||
Tires |
7.00-16 Rubber tire 7.00-16 |
||||
|
Body spec
|
Body Structure |
Half-integral body structure |
|||
Passenger's door |
Folding passenger |
||||
luggage room |
|
||||
Driver's seat |
Adjustable seat |
||||

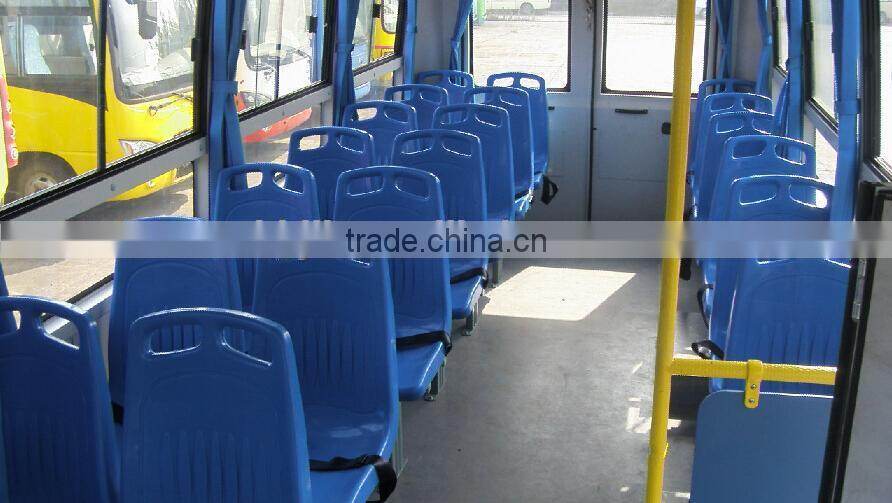

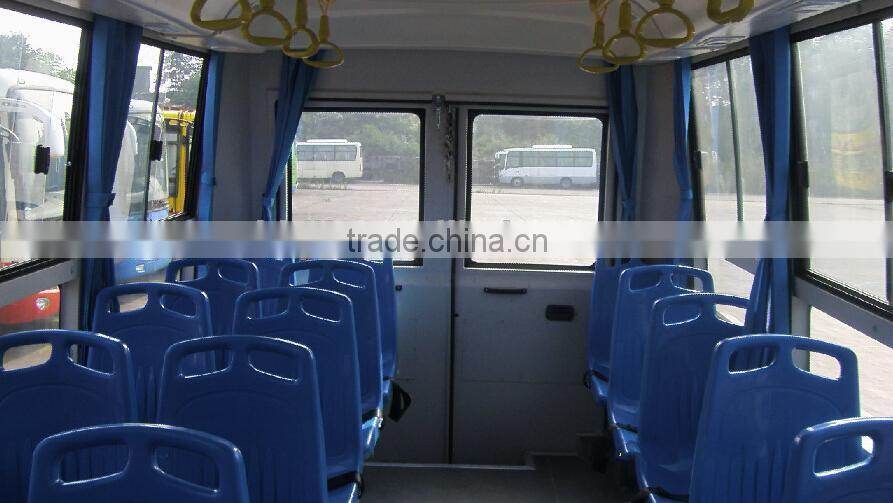

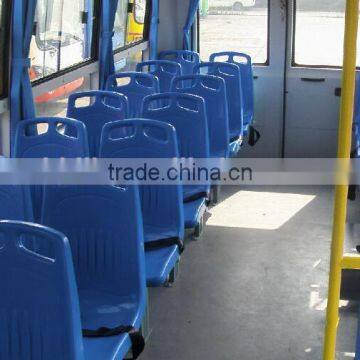

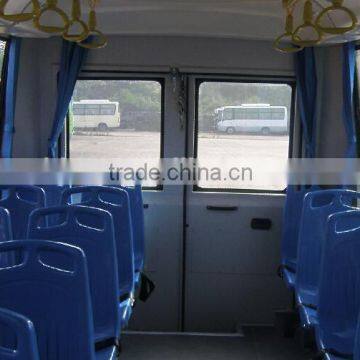

Passenger seat |
18 seats |
||||
|
Electricity/air horn |
||||
Electric fan | |||||
Engine cover | |||||
Cigar Lighter | |||||
Electronic clock | |||||
Triangle warning plate | |||||
Safety hammer(four units) | |||||
Fire extinguishers | |||||
Security window (DS/800B) | |||||
Paint |
Ordinary paint |
||||
Pattern |
To be determined |
||||
A/C |
|
Option air conditioner |
|||
|
Bus Colour |
According to customer requirements |
|||
Company products scope as following:
Nude cargo,container, the vehicle surface spray anti-rust wax ,we will provide the best break bulk carriers and Ro-Ro shipping scheme according to your actual situation.
1. Factory Supply:
A). the biggest and famous vehicle manufacturer in china,
B). more than 300 kinds of special truck for your selecting.
2. OEM Ability: can be made according to your requirements, the material, the size, the color and the logo can be optional.
3. Good Quality:
A). has solid technology, advanced equipments; reliable quality and flexible modes of operation also have strict quality control system,
B). ISO9001-2008 standard and the 3C (China Compulsory Certification),
C). China top brand with good reputation at home and abroad.
4. Good Service: 24-hour hotline and email.offer quickly no more than 5 minutes.
5. Fast Delivery: 10-35 days after payment, safe and quick delivery depends on your order quantity.
1. Price term: FOB Shanghai in China.CIF for destination port.
2. Payment: T/T 30% deposit after order confirmation, 70% balance cash before delivery.
3. Delivery time: 10-35 working days after payment is received.
4. Standard Steering:Left-hand drive, if you need Right-hand drive type, please inform us in advance, we can make the special order for you.
Once you have any inquiry about Dongfeng products in the following days,hope you could feel free to contact with us,wich is much appreciated.also welcome you and your team to China to our company for visiting,seeing is believing !
How to get to our city ? the flight line as following:
Flight line: you can fly from Shanghai/Beijing/Guangzhou or Shenzhen to Xiangyang airport of Hubei province,we can pick you up at the airport.
