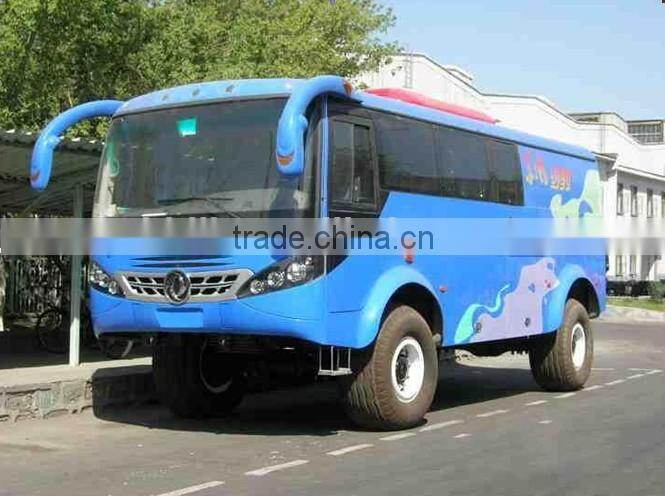

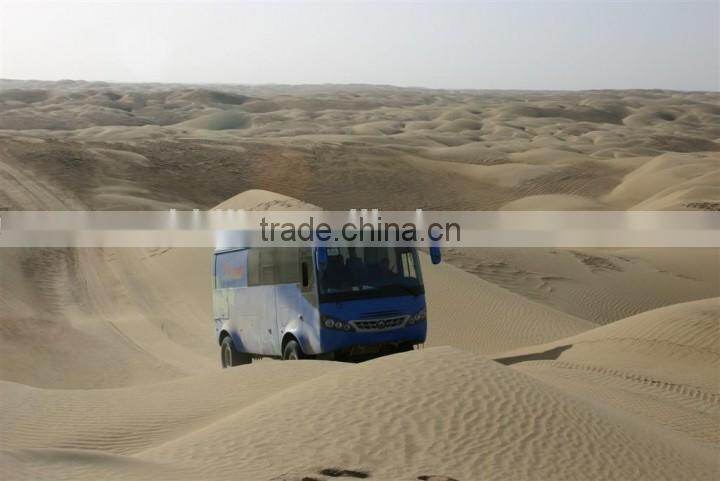

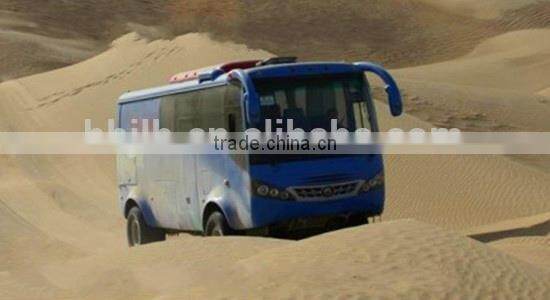

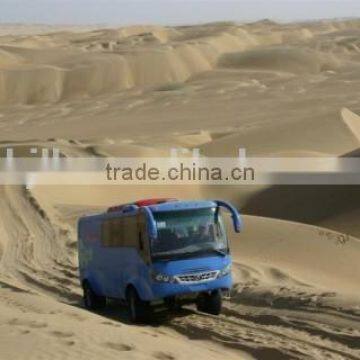

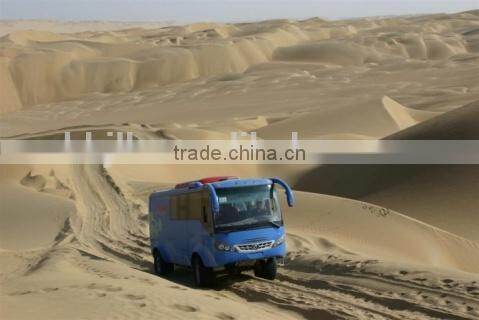

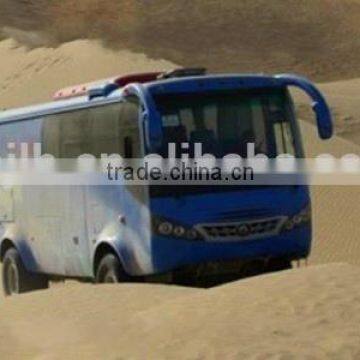

Dongfeng EQ5160XSGC 4X4 desert passenger bus
Overall dimension parameter |
Overall length(mm) |
7680 |
Engine parameter |
Engine model |
Isde245 30 |
||
Overall width(mm) |
2700 (2500) |
Engine type |
L4 , 4 strokes, water cooling , direct injection, turbo charge Inner cooler |
||||
Overall height(mm) |
3380 |
||||||
Internal height(mm) |
1650 |
Displacement (L)
|
6.700 |
||||
Wheel base(mm) |
4500 |
Cylinder*stroke(mm) |
107×124 |
||||
Tread f/r (mm) |
F2110,2150 R2110,2150 |
Ratio |
17.3:1 |
||||
F/r suspension(mm) |
1730/1450 |
Power(kw/rpm) |
180/2500 |
||||
|
Min. Ground clearance (mm) |
|
Max. Torque (N.m/rpm) |
925/1400 |
||||
|
Angle of approach/departure (°) |
30/38 |
Fuel type |
Diesel |
||||
|
Chassis Performance |
Chassis manufacturer |
Dongfeng Xinjiang motor ltd |
Max. Speed(km/h) |
76 |
|||
Engine position |
Front |
Min. Turning Diameter(m) |
≤14.5 |
||||
|
Fuel consumption (L/100km) |
≤14 |
Drive type |
4X4 |
||||
Kerb mass(kg) |
10300 |
Rated max. Load mass(kg) |
16000 |
||||
Item |
Standard configuration |
Option |
|||||
Chassis |
Rear axle |
Dongfeng rear axle, casting welded axle housing, single reduction, load capacity:6800kg |
|
||||
Front axle |
Dongfeng front axle, I beam, fist type, load capacity:9200kg |
|
|||||
Suspension system |
Dependent suspension, front 11,R14, two-way hydraulic shock absorber, stabilizer bar on front suspension, rubber suspension on rear suspension |
|
|||||
Steering system |
Mechanical non-power steering, adjustable steering wheel |
|
|||||
Brake system |
Dual circuit air brake system, air pressure drum wheel brake |
|
|||||
Clutch |
Single disc try type diaphragm spring shock absorber, with booster |
|
|||||
Transmission |
Model: QJ1206-E42, 6 speeds. |
|
|||||
Tyre |
20.00-20 desert tyre, |
20.00-20 |
|||||
Fuel tank |
350L ,one piece |
|
|||||
|
Body |
Body structure |
Semi-integral type cold formed steel structure, stretching skin, flat floor, with mid partition wall |
|
||||
Inner trim |
PVC plywood at ceiling, iron patterned floor |
|
|||||
Door |
Driver door, mid out swing door, rear double door, emergency door |
|
|||||
Seats |
29+1 seats, luxury driver’s seat, high back rest passenger seat |
|
|||||
Air condition |
Meibiao brand |
Yuxin brand |
|||||
Heating system |
Forced radiator , fuel heater |
|
|||||
Audio-visual system |
VCD, 17’ display
|
|
|||||
Service facility |
Fire extinguisher, sun visor , double roof window with ventilation fan |
|
|||||
Other |
|
|
|||||
Company products scope as following:
Nude cargo,container, the vehicle surface spray anti-rust wax ,we will provide the best break bulk carriers and Ro-Ro shipping scheme according to your actual situation.
1. Factory Supply:
A). the biggest and famous vehicle manufacturer in china,
B). more than 300 kinds of special truck for your selecting.
2. OEM Ability: can be made according to your requirements, the material, the size, the color and the logo can be optional.
3. Good Quality:
A). has solid technology, advanced equipments; reliable quality and flexible modes of operation also have strict quality control system,
B). ISO9001-2008 standard and the 3C (China Compulsory Certification),
C). China top brand with good reputation at home and abroad.
4. Good Service: 24-hour hotline and email.offer quickly no more than 5 minutes.
5. Fast Delivery: 10-35 days after payment, safe and quick delivery depends on your order quantity.
1. Price term: FOB Shanghai in China.CIF for destination port.
2. Payment: T/T 30% deposit after order confirmation, 70% balance cash before delivery.
3. Delivery time: 10-35 working days after payment is received.
4. Standard Steering:Left-hand drive, if you need Right-hand drive type, please inform us in advance, we can make the special order for you.
Once you have any inquiry about Dongfeng products in the following days,hope you could feel free to contact with us,wich is much appreciated.also welcome you and your team to China to visit our company for visiting,seeing is believing !
How to get to our city ? the flight line as following:
Flight line: you can fly from Shanghai/Beijing/Guangzhou or Shenzhen to Xiangyang airport of Hubei province,we can pick you up at the airport.
