Wire Rope For Bauer Rotary Drilling Rig BG40 Dia36mm 35*K7

Wire Rope For Bauer Rotary Drilling Rig BG40 Dia36mm 35*K7 photo-1
Wire Rope For Bauer Rotary Drilling Rig BG40 Dia36mm 35*K7 photo-2

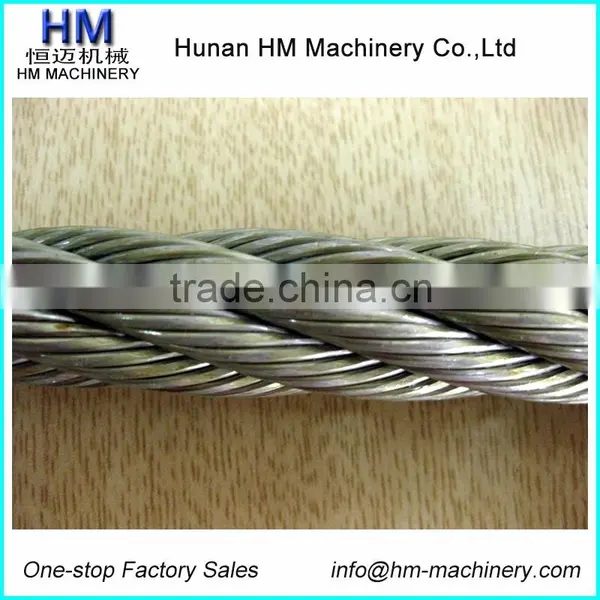

Wire Rope For Bauer Rotary Drilling Rig BG40 Dia36mm 35*K7 photo-3

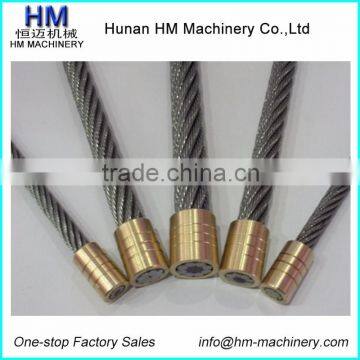

Wire Rope For Bauer Rotary Drilling Rig BG40 Dia36mm 35*K7 photo-4
Wire Rope For Bauer Rotary Drilling Rig BG40 Dia36mm 35*K7 photo-5
Wire Rope For Bauer Rotary Drilling Rig BG40 Dia36mm 35*K7 photo-6
US$ 480 - 3,000 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Shanxi, China
Brand Name:
BOMCO
Model Number:
HMWR/RDRBG40MW35*K7
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanxi, China
Brand Name BOMCO
Model Number HMWR/RDRBG40MW35*K7
Product Description

Steel Wire Rope for Rotary Drilling Rig BG40

BG40 Main Rope

BG40 Auxiliary Rope

BG40 Crowd Rope

Bauer Rotary Drilling Rig
BG40
BG36
BG28
BG25
Main Rope Diameter(mm)
36
36
32
28
Main Rope Length(m)
85
105
80
88
Auxiliary Rope Diameter(mm)
22
20
20
20
Auxiliary Rope Length(m)
70
70
60
50
Upper Crowd Rope Diameter(mm)
28
28
24
Upper Crowd Rope Length(m)
86
80
71
Lower Crowd Rope Diameter(mm)
28
28
24
Lower Crowd Rope Length(m)
75
75
62
Prouct Details

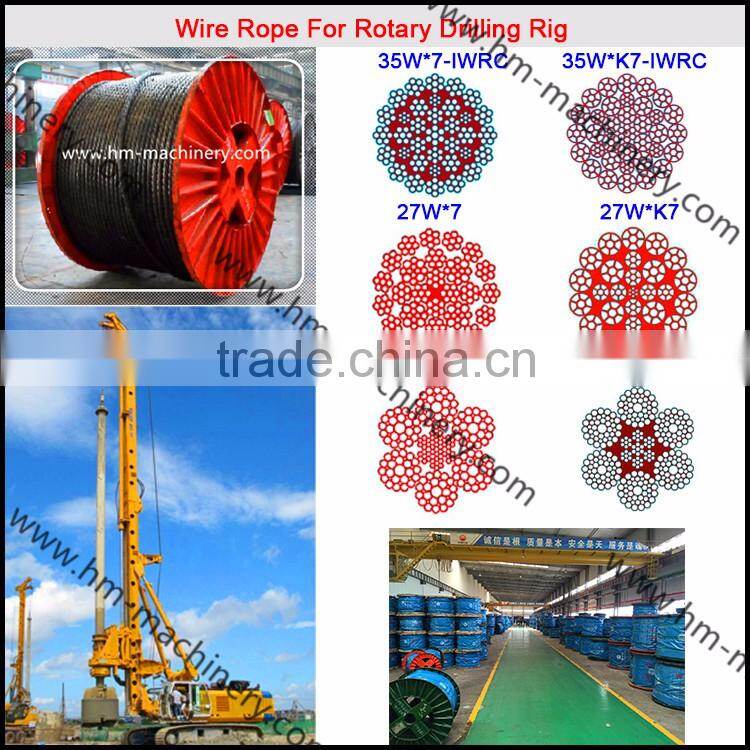

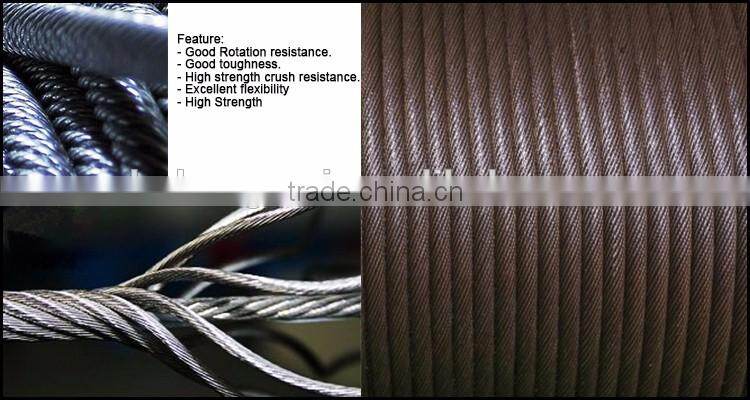

F 1 Wire Rope For Rotary Drilling Rig Main Rope/Auxiliary Rope/Crowd Rope

Application
Name
Structure
Remarks

Rotary Drilling Rig
Non-Rotation Wire Rope
35Wx7, 27Wx7, 24Wx7
Dia Draw
Compacted wire rope
35WxK7, 27WxK7, 24WxK7, 18xK7
Forged
Parallel laid wire rope
6x36WS-IWRC; 6x29Fi-IWRC; 6x25Fi, 6x26WS, 6x31WS,
steel core

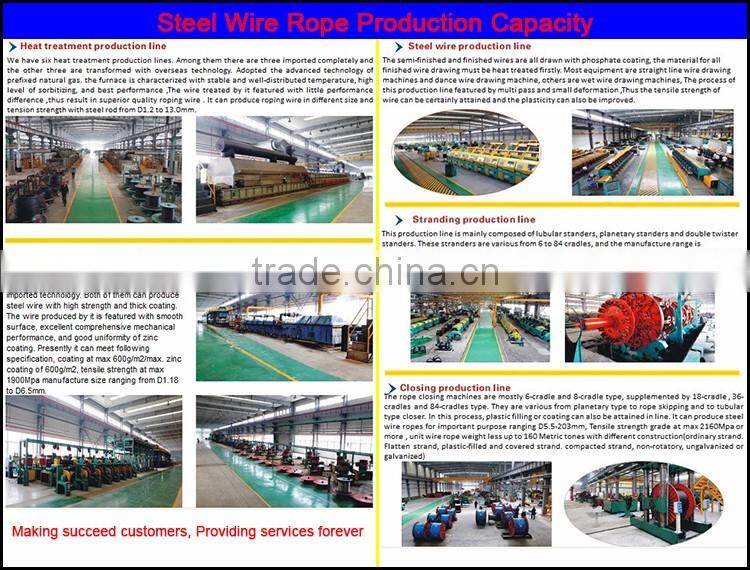

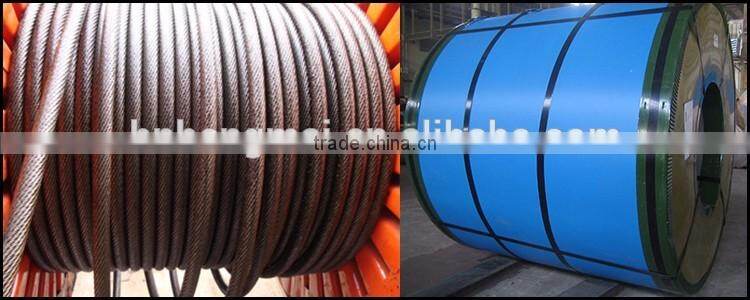

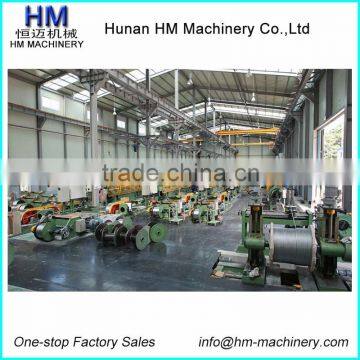

F2 Steel Wire Rope Production Capacity

F3 Company Honor, Qualication, Certificate for Steel Wire Rope

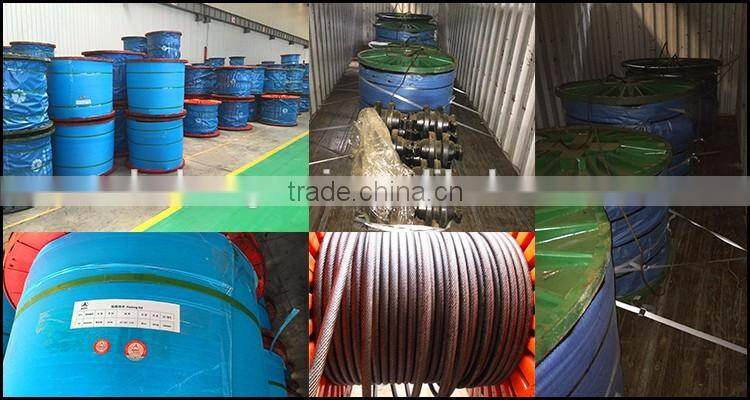

Packing & Delivery
Payment
50% T/T  in advance
50% T/T before loading
Delivery Time
0-30 days after receiving down payment

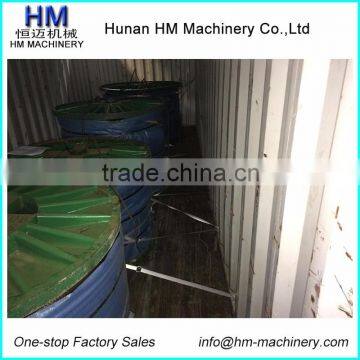

Package
Plastic Hollow Board & Steel Wheels.
Our Company
Factory and Office

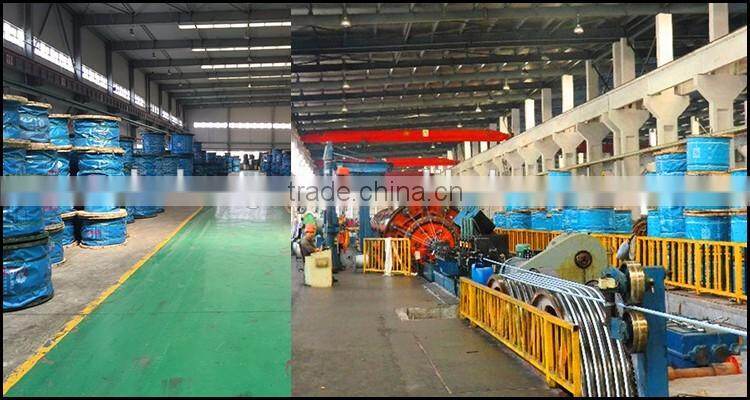

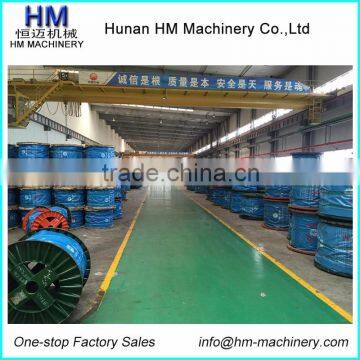

Work Shop and Store

Fair Show: Bauma China Exhibition-2010

FAQ

Q1.Are you a manufacturer or trading company?
- Yes, we have two factories and we are the leading manufacturer in China. Welcome if you have plan to visit our
factory and inspect the products.
Q2.How is your products quility?
- We manufacture construction machinery parts and machine basic on serving our mother company which is a professional foundation construction company since 2003, we deal with machinery and spare parts problems and improve it
- With foundation construction company and manufacturers experience, we do know the important of  the perfectness ratio of machine. Machine is our customer's bank and quality is our bank.
Q3.Do you accept sample order?
- Yes sure, please contact us for details.
Q4.How about your after-sales service?
As a manufacturer, we offer promote technology support for all problems and questions.
Besides, we accept goods return or replace for quality problem.
Q5.Where is your factory located in?
Our factory is located in Changsha city,Hunan province, China.
