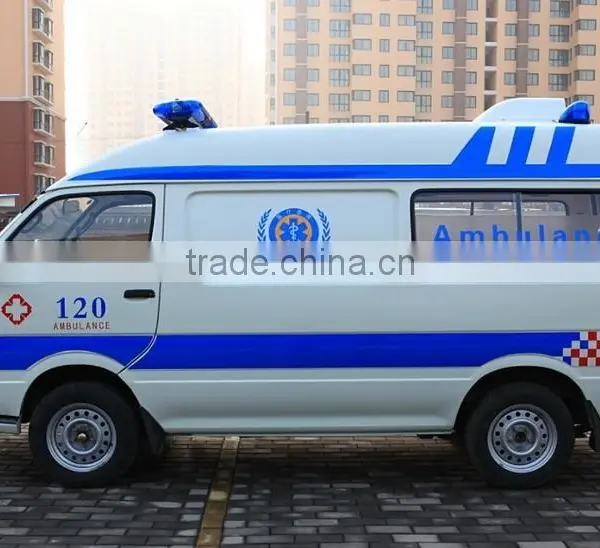

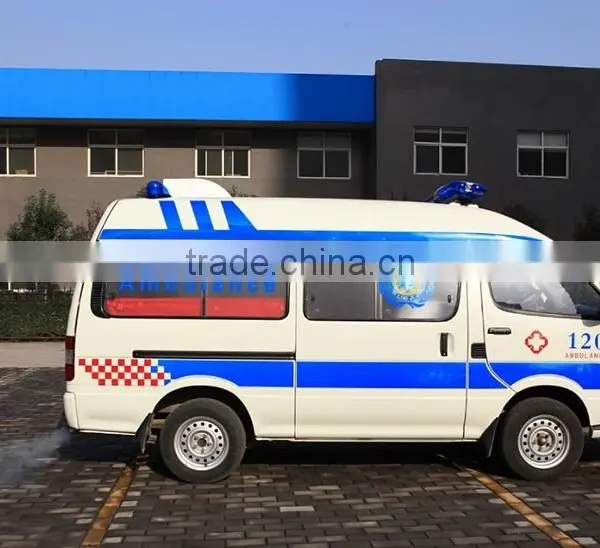

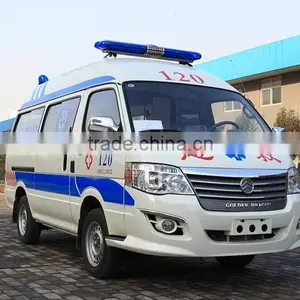

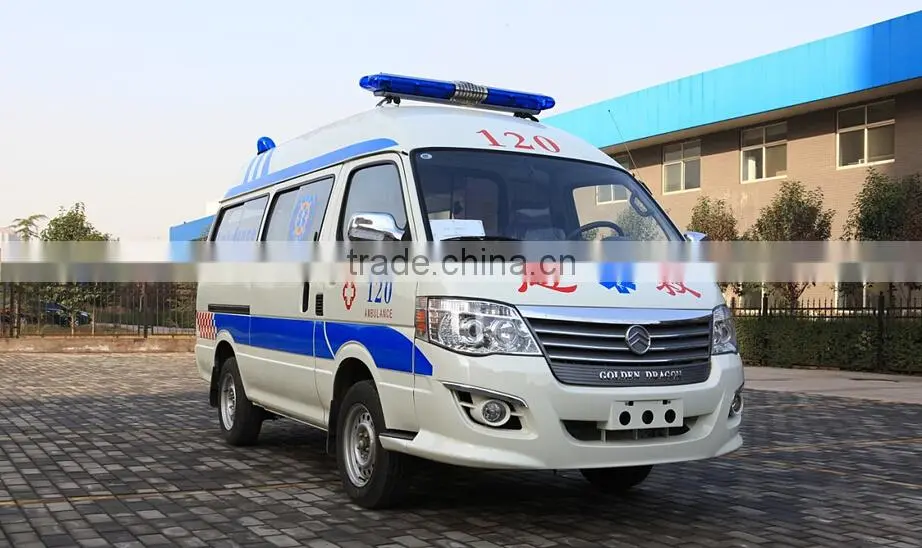

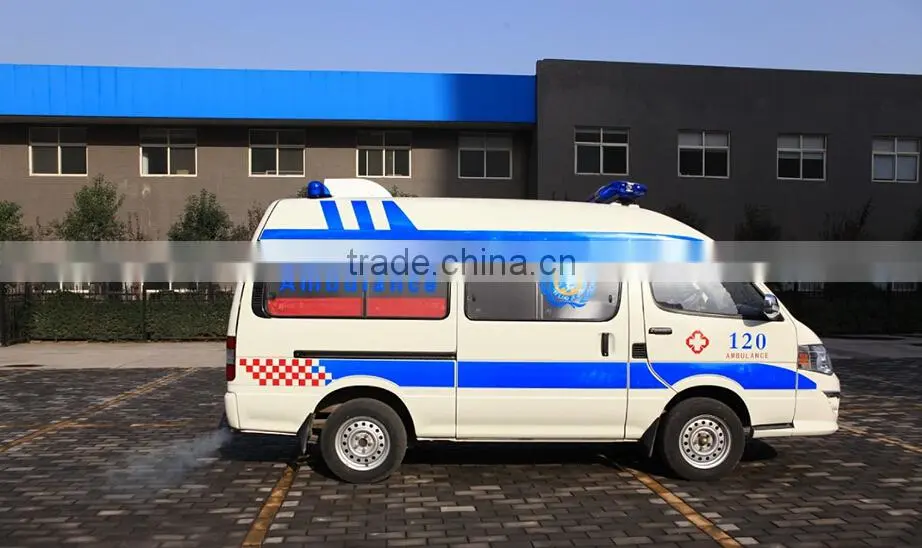

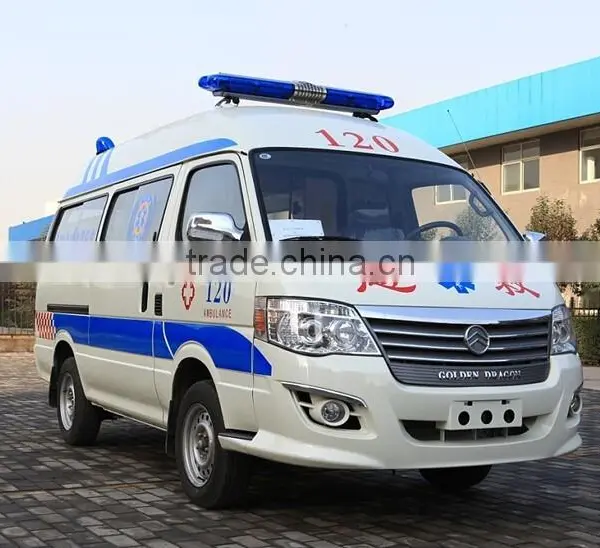

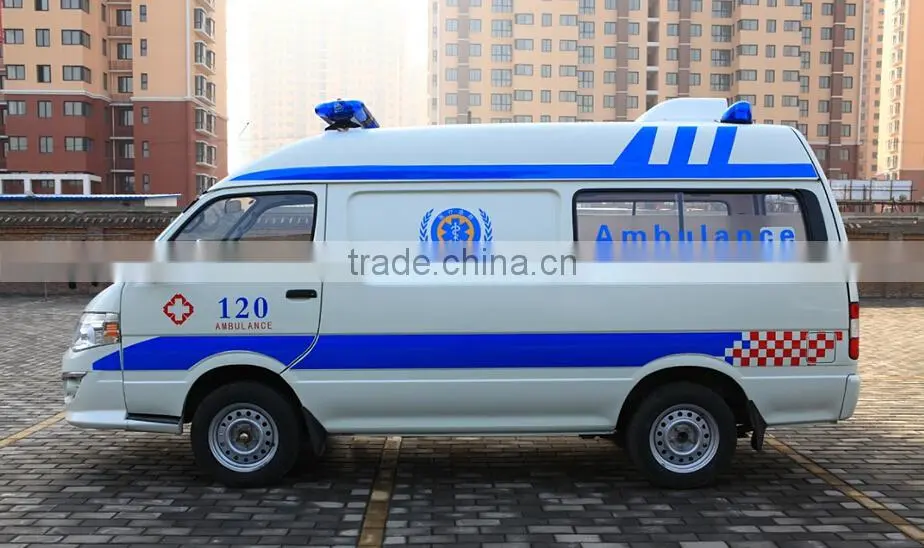

Golden Dragon XML5035XJH28 Medical Vehicle
A |
Technical specs of vehicle |
|
|
Wheelbase (mm):2590 |
|
|
Turning diameter(m):11 |
|
|
Overall dimensions (mm):4950×1700×2420 |
|
|
Dimension of patient's compartment (mm):2900×1540×1600 |
|
|
Complete vehicle curb mass:(kg):1755 |
|
|
GVW (kg):2800 |
|
|
Engine Model:JM491Q-ME |
|
|
Fuel type: Petrol |
|
|
Fuel consumption (L):11 |
|
|
Engine type:electronic fuel injection |
|
|
Displacement (ml.): 2237 |
|
|
Emission standard:Euro 4 |
|
|
Max Power (kw/rpm): 76/4600 |
|
|
Max. torque (Nm/rpm): 193/2800 |
|
|
Gearbox:5 speed, manual |
|
|
Front overhang/Rear overhang:1220/1140 1300/1140 (mm) |
|
|
Front wheel tread/Rear wheel tread: 1450/1430 |
|
|
Brake: front disc / rear drum |
|
|
Max. speed (Km/h):130 |
|
|
Steering system: gear, rack power-assisted steering |
|
|
Fuel tank capacity(L):70 Tyre: 195/70R15CMeridian vacuum tyre |
|
B |
Standard configuration of vehicle |
|
1 |
Electric side mirror |
|
2 |
Power windows |
|
3 |
Vehicle-mounted radio |
|
4 |
Central control door lock |
|
5 |
Hand-free Intercom system between driver's cab and patient's compartment |
|
6 |
2 seats in driver's cab |
|
7 |
Upward open rear door |
|
C |
Air conditioner and lighting system |
|
1 |
Vehicle-mounted air conditioner in driver's cab |
1 |
2 |
Vehicle-mounted air conditioner in patient's compartment |
1 |
3 |
Ventilation fan mounted on the roof of patient's compartment |
1 |
4 |
Illumination lights in patient’s compartment |
4 |
5 |
1 illumination spotlight in interior rear side of vehicle |
1 |
6 |
Ultraviolet radiation disinfector light |
1 |
D |
Central power supply distribution system |
|
1 |
Automatic charging system |
1 |
2 |
10m mobile cable |
1 |
3 |
12V outlets in patient's compartment |
2 |
4 |
220V outlets in patient's compartment |
2 |
5 |
230V/16A waterproof outside outlet with protection cover |
1 |
6 |
12V DC power supply system |
1 |
7 |
Intelligent inverted power supply system(12V -220V) |
1 |
8 |
Central control system |
1 |
E |
Emergency Alarm System |
|
1 |
Control plate of siren and alarm lamp mounted in driver's cab |
1 |
2 |
Adjustable volume alarm apparatus |
1 |
3 |
100W loud speaker |
1 |
4 |
Blue Flashing alarm light bar mounted on the front roof of vehicle |
1 |
F |

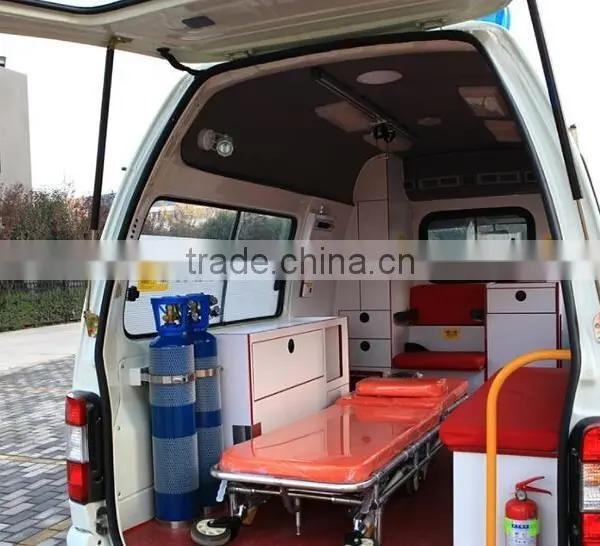

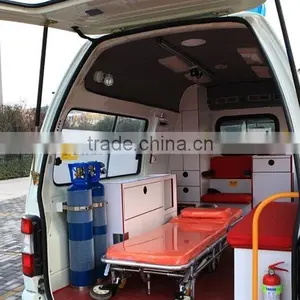

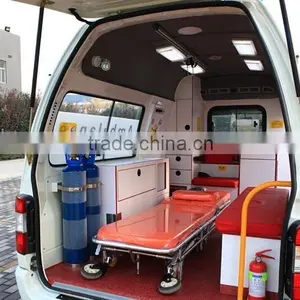

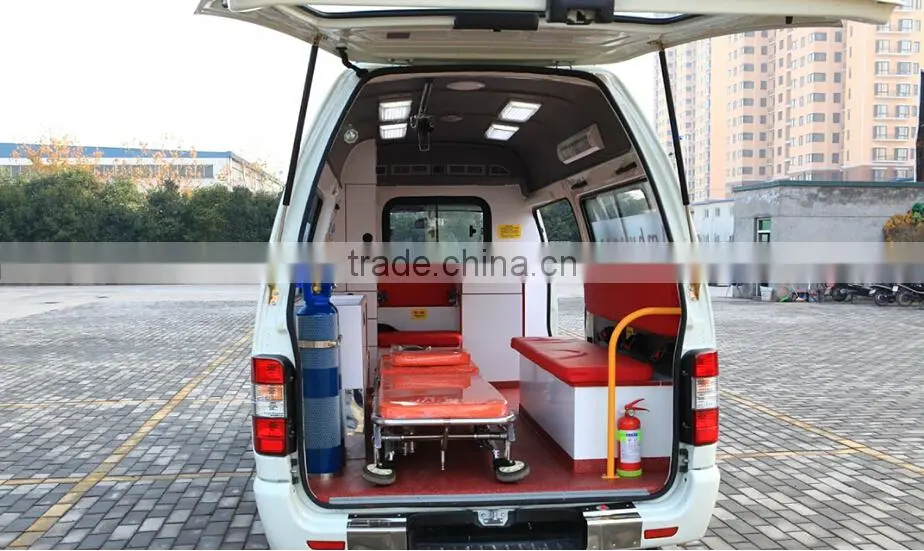

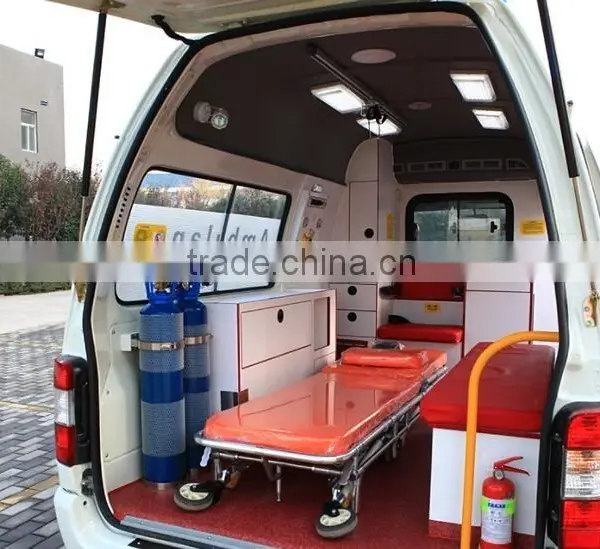

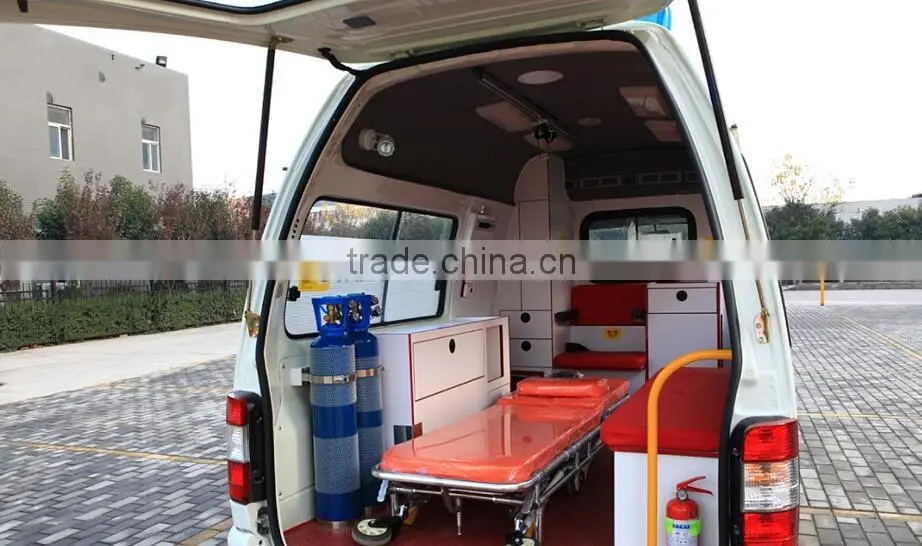

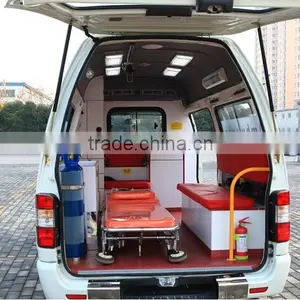

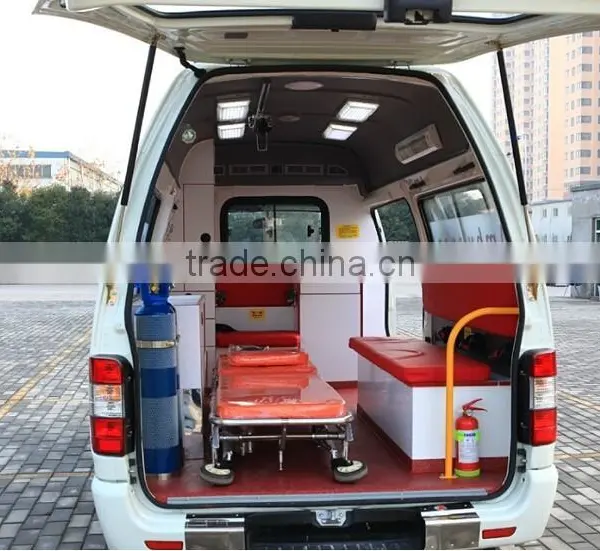

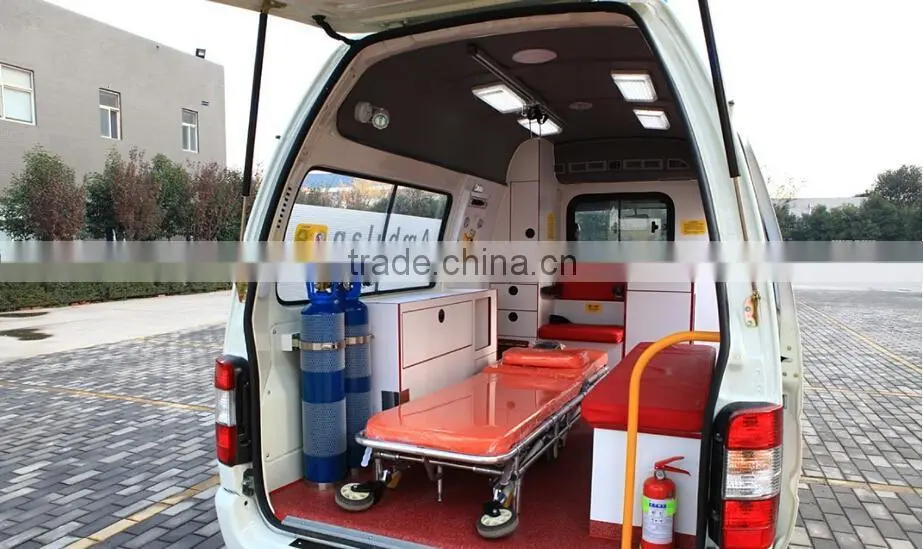

Patient's Compartment |
|
1 |
Compartment wall one piece made of PVC with curved surface between driver's cab and patient's compartment, a glass window in wall to make observation |
|
2 |
A foldable doctor seat mounted to floor near to compartment wall |
1 |
3 |
Long bench one piece (suitable for 3 people) with safe belts, mounted in right side of patient's compartment |
1 |
4 |
Oxygen bottles (10L) ,mounted in left side of vehicle |
2 |
5 |
Oxygen flow controller |
2 |
6 |
Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static. |
|
7 |
Covered perimeter of patient's compartment, dust-proof, anti-skidding, washable |
|
8 |
Ventilation fan mounted in the interior roof of patient's compartment |
1 |
9 |
Illuminating lights mounted to the interior roof of patient's compartment |
4 |
10 |
Sliding transfusion hanging bracket mounted to the interior roof of patient's compartment |
1 |
11 |
|
|
12 |
Multi-functional cabinet, used for storage of medicine and medical equipments, installed behind partition wall |
1 |
13 |
patient’s seats installed in the left side of patient’s compartment |
2 |
14 |
Strong blue or red reflective strip in waist of body |
|
15 |
220V outside power supply |
1 |
16 |
Auto loading stretcher and scoop stretcher |
1 |
Standard Configuration
1) Golden Dragon High roof Petrol Chassis :1 unit
2) Anti-slip medical floor: 1set
3) Partition wall: 1set
4) Lighting system: 1set
5) Sliding type Transfusion system: 1set
6) Ventilation fan system: 1set
7) Medicine and instrument cabinet: 1set
8) Long bench with 3 seats:1 set
9) Oxygen supply system: 1set (10LX2 oxygen bottle)
10) Oxygen terminal: 2units
11) Oxygen flow controller:2units
12) Oxygen switch device: 1unit
13) Inverter: 1set
14) Storage battery: 1unit
15) Outside power supply:1unit
16) UV sterilizing lamp: 1unit
17) Alarm lamp and warning system: 1set
18) Doctor seat: 1unit
19) Patient seat: 2units
20) Scoop stretcher: 1unit
21) Automatically loading stretcher:1unit
22) Multi-functional operation panel:1unit
23) Fire extinguisher: 2sets
24) Waste can: 1set
25) Intercom system: 1set
Company special-purpose vehicle scope as following:
Nude cargo,container, the vehicle surface spray anti-rust wax ,we will provide the best break bulk carriers and Ro-Ro shipping scheme according to your actual situation.
1. Factory Supply:
A). the biggest and famous vehicle manufacturer in china,
B). more than 300 kinds of special truck for your selecting.
2. OEM Ability: can be made according to your requirements, the material, the size, the color and the logo can be optional.
3. Good Quality:
A). has solid technology, advanced equipments; reliable quality and flexible modes of operation also have strict quality control system,
B). ISO9001-2008 standard and the 3C (China Compulsory Certification),
C). China top brand with good reputation at home and abroad.
4. Good Service: 24-hour hotline and email.offer quickly no more than 5 minutes.
5. Fast Delivery: 10-35 days after payment, safe and quick delivery depends on your order quantity.
1. Price term: FOB Shanghai in China.CIF for destination port.
2. Payment: T/T 30% deposit after order confirmation, 70% balance cash before delivery.
3. Delivery time: 10-35 working days after payment is received.
4. Standard Steering:Left-hand drive, if you need Right-hand drive type, please inform us in advance, we can make the special order for you.
