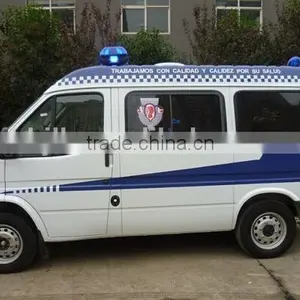

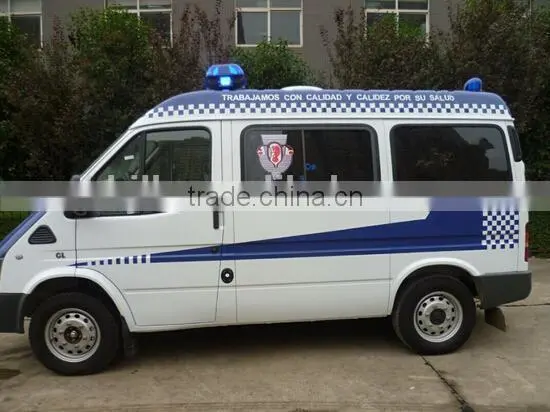

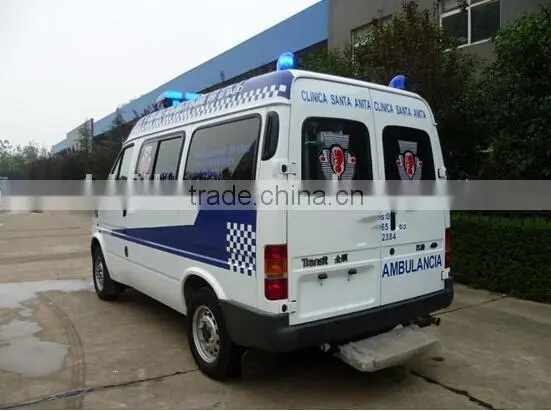

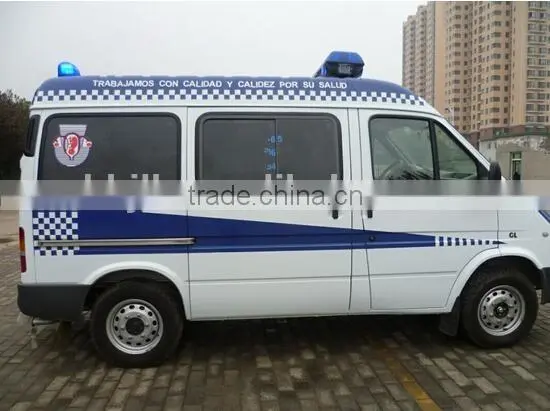

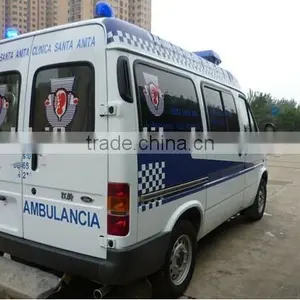

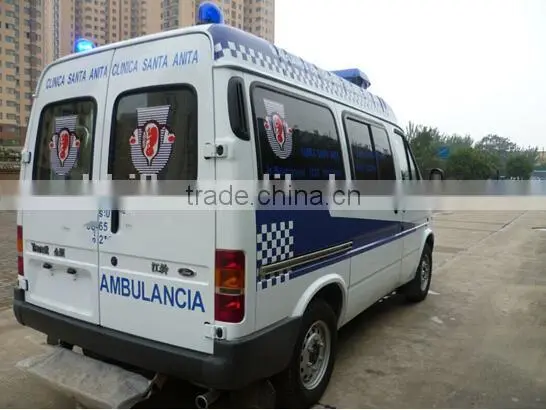

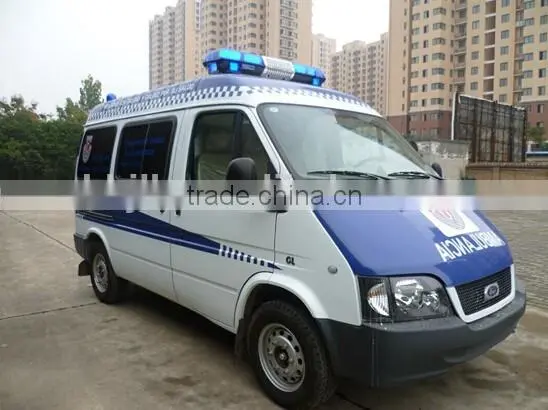

Ford TransitCQK5036XJH4 ambulance(Gasoline Engine, Middle Roof)
A |
Technical specs of vehicle |
Quantity |
|
|
Dimensions and masses |
|
|
|
Wheelbase (mm):2835 |
|
|
|
Wheel tread (mm): 1692/ 1700 (front/rear) |
|
|
|
Minimum ground clearance (mm):165 |
|
|
|
Turning diameter(m):13.8 |
|
|
|
Overall dimensions (mm):4866×1974×2420 |
|
|
|
Dimension of Patient's compartment (mm):2600×1700×1520 |
|
|
|
Complete vehicle curb mass:(kg):2190 |
|
|
|
GVW (kg):2880 |
|
|
|
Number of seat: 6 seats |
|
|
|
Engine:4G64S4N(gasoline) |
|
|
|
Fuel type: gasoline |
|
|
|
Fuel consumption:9L/100km |
|
|
|
Working manner: 4 cylinders, 4 stroke, water-cooled, single overhead camshaft (gasoline) |
|
|
|
Displacement (L.):2.351 |
|
|
|
Emission standard:Euro IV(China IV) |
|
|
|
Maximum power:92kw |
|
|
|
Gearbox:MT-75 5 speed, mechanical |
|
|
|
Chassis :JX6477-M |
|
|
|
Front overhang:independent suspension |
|
|
|
Rear overhang:Variable cross-section leaf spring, hydraulic shock absorber |
|
|
|
Brake: Front disc rear drum, power-assisted brake |
|
|
|
Max. speed (Km/h):140(gasoline) |
|
|
|
Steering system: gear, rack power-assisted steering |
|
|
|
Tire:215/70R15C-8PR |
|
|
|
Fuel tank capacity(L): 68 |
|
|
B |
Standard configuration of vehicle |
|
|
1 |
Manual side mirror |
|
|
2 |
Power window |
|
|
3 |
The original car audio |
|
|
4 |
Central door lock |
|
|
5 |
Hand-free Intercom system between driver's cab and Patient's compartment |
|
|
6 |
3 seats in driver's cab |
|
|
7 |

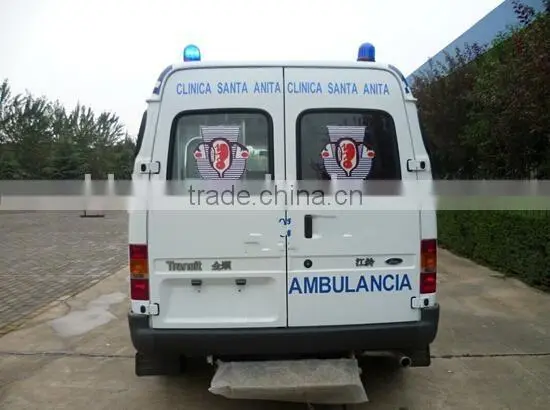

Double open rear door |
|
|
8 |
Foot pedal in rear door |
|
|
|
Air conditioner and lighting system |
|
|
1 |
the original air conditioning is installed in driver's cab |
1 |
|
2 |
the original air conditioning is installed in Patient's compartment |
1 |
|
3 |
Exhaust system is installed on Patient's compartment roof |
1 |
|
4 |
Daylight lamps in Patient's compartment |
4 |
|
5 |
Ultraviolet radiation disinfector light |
1 |
|
|
Central power supply distribution system |
|
|
1 |
Automatic charging system |
1 |
|
2 |
10m mobile cable |
1 |
|
3 |
12V outlets in Patient's compartment |
2 |
|
4 |
220V outlets in Patient's compartment |
2 |
|
5 |
230V/16A waterproof outside outlet with protection cover |
1 |
|
6 |
12V DC power-supply system |
1 |
|
7 |
Intelligent inverted power supply system(12V -220V) |
1 |
|
8 |
Centralized control system |
1 |
|
|
Emergency alarm system |
|
|
1 |
Control plate of siren and alarm lamp mounted in driver's cab |
1 |
|
2 |
Adjustable volume alarm apparatus |
1 |
|
3 |
100W loud speaker |
1 |
|
4 |

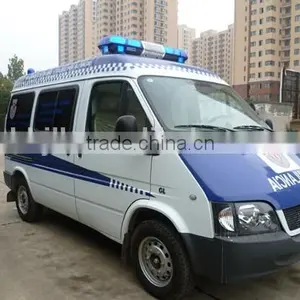

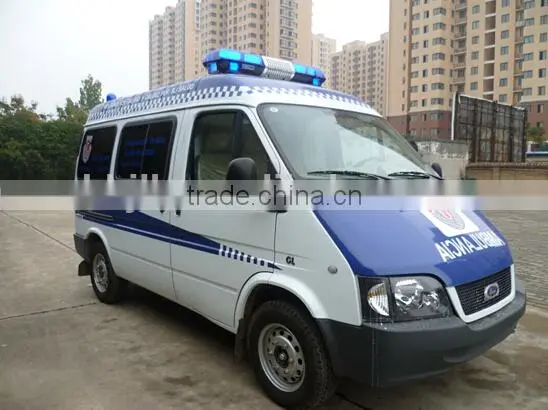

Blue Flashing alarm light bar mounted on the front roof of vehicle |
1 |
|
5 |
Blue cylindrical flashing alarm lamps mounted on the rear roof of vehicle outside |
2 |
|
|
F |

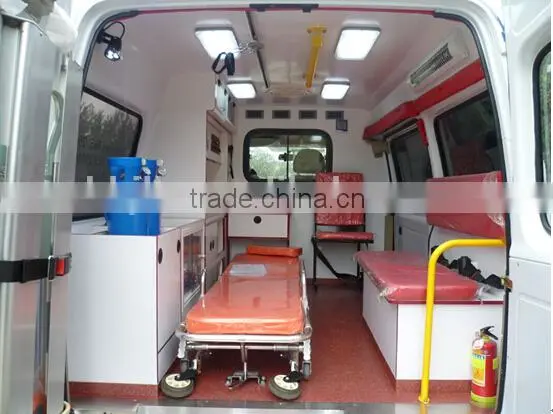

Patient's compartment |
|
|
|
Composite roof in the cab |
|
|
|
Composite partition wall between driver's cab and Patient's compartment , a glass window in wall to make observation |
|
|
|
Composite material cabinet bed, Seat cushion and the back of chair with leather surface coating (Red color ,suitable for 2 people) with safe belts, mounted in right side of Patient's compartment |
1 |
|
|
composite material interior decoration(Walls , doors, roof) in patient compartment |
|
|
|
Oxygen bottle in steel (10L×2) ,mounted in left side of vehicle |
2 |
|
|
Oxygen reducing valve |
1 |
|
|
Polymer material medicine cabinet in patient compartment |
|
|
|
Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static. |
|
|
|
perimeter embossing edge wrapping of Patient's compartment , dust-proof, anti-skidding, washable |
|
|
|
Infusion support and Safety Grab Bar mounted in the interior roof of Patient's compartment |
1 |
|
|
Ventilation fan mounted in the interior roof of Patient's compartment |
1 |
|
|
4 fluorescent lights mounted in the interior roof of Patient's compartment |
4 |
|
|
Red waist potent reflective tape |
|
|
|
Armrest of the back door mounted in emergency room |
|
|
|
vertical medicine cabinet behind partition wall |
1 |
|
|
A set of composite medical equipment cabinets mounted in left side of Patient's compartment |
1 |
|
|
Strong blue or red reflective strip in waist of body |
1 |
|
|
Mobile Self-lifting stretcher mounted in Patient's compartment |
1 |
|
|
Adjustable shovel Stretcher mounted in the left inside of the back door. |
1 |
|
|
External power supply installed in the below of the pedal,220V outside power supply |
1 |
|
|
Collision avoidance head restraint mounted in Patient's compartment |
1 |
|
Standard Configuration
1) Chassis :1 unit
2) Alarm lamp and warning system: 1set
3) Air conditioning system: 1set
4) Anti-slip medical floor: 1set
5) Partition wall: 1set
6) Integrated interior decoration: 1set
7) Ventilation fan system: 1set
8) Oxygen supply system: 1set (10LX2 oxygen bottle)
9) Inverter: 1set
10) Power socket (220v 12v): 2 set
11) External power supply: 1set
12) Disinfector system: 1set
13) Lighting system: 1set
14) Transfusion system: 1set
15) Operation panel: 1set
16) Intercom system: 1set
17) Medicine and instrument cabinet: 1set
18) Cabinet bed :1 set
19) Doctor chair: 1set
20) Anti-Collision Head restrain: 1set
21) Automatic loading-and-unloading stretcher: 1set
22) Scalable scoop stretcher: 1set
23) Fire extinguisher: 2set (The original: 1set, reprovision: 1 set )
24) Waste can: 1set
25) Mobile cable: 1set
26) Outside marking: 1set
27) Driver’s tool kit: 1set
28) Hygrometer: 1set
Company special-purpose vehicle scope as following:
Nude cargo,container, the vehicle surface spray anti-rust wax ,we will provide the best break bulk carriers and Ro-Ro shipping scheme according to your actual situation.
1. Factory Supply:
A). the biggest and famous vehicle manufacturer in china,
B). more than 300 kinds of special truck for your selecting.
2. OEM Ability: can be made according to your requirements, the material, the size, the color and the logo can be optional.
3. Good Quality:
A). has solid technology, advanced equipments; reliable quality and flexible modes of operation also have strict quality control system,
B). ISO9001-2008 standard and the 3C (China Compulsory Certification),
C). China top brand with good reputation at home and abroad.
4. Good Service: 24-hour hotline and email.offer quickly no more than 5 minutes.
5. Fast Delivery: 10-35 days after payment, safe and quick delivery depends on your order quantity.
1. Price term: FOB Shanghai in China.CIF for destination port.
2. Payment: T/T 30% deposit after order confirmation, 70% balance cash before delivery.
3. Delivery time: 10-35 working days after payment is received.
4. Standard Steering:Left-hand drive, if you need Right-hand drive type, please inform us in advance, we can make the special order for you.
Once you have any inquiry about Dongfeng products in the following days,hope you could feel free to contact with us,wich is much appreciated.also welcome you and your team to China to visit our company,seeing is believing !
How to get to our city ? the flight line as following:
Flight line: you can fly from Shanghai/Beijing/Guangzhou or Shenzhen to Xiangyang airport of Hubei province,we can pick you up at the airport.
